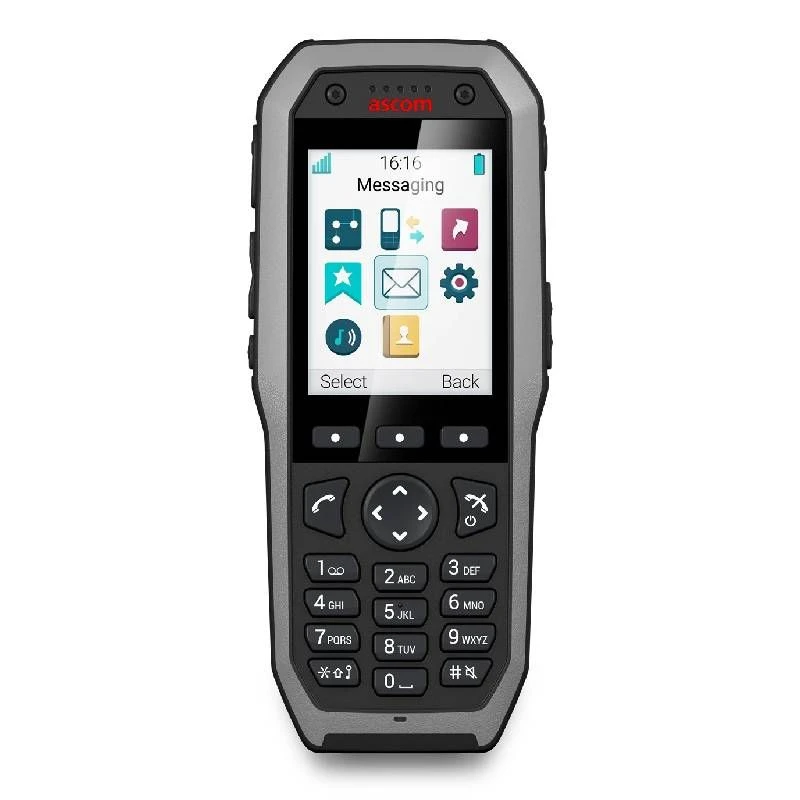

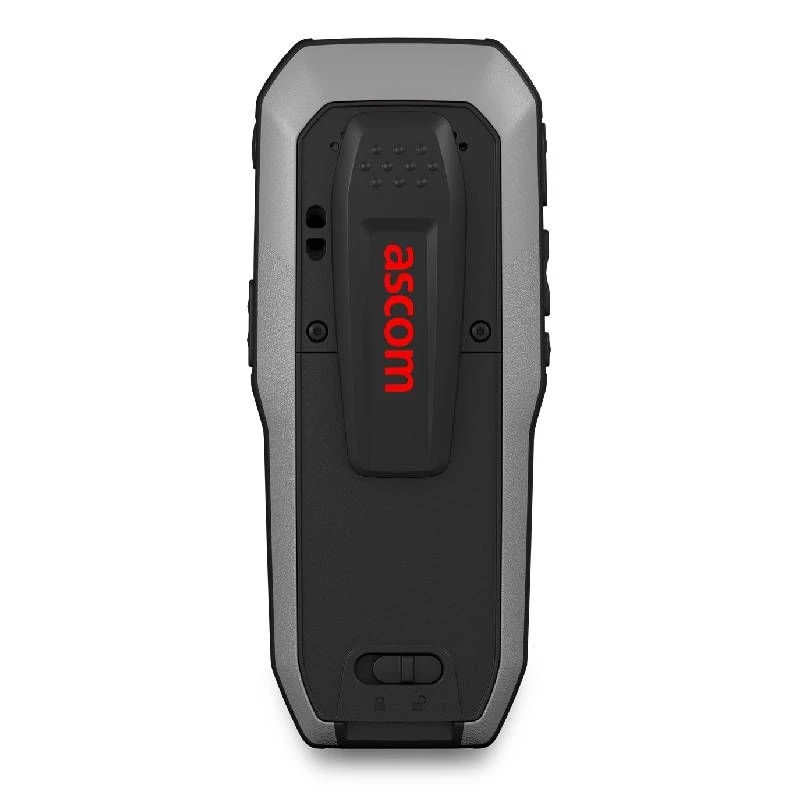

Ascom D83 Protector

Ascom D83 Protector: The telephone ally of demanding mobile professionals

Developed by Ascom , the D83 Protector is an ultra-rugged DECT cordless phone , dedicated to professionals working in extreme environments. Easy to transport thanks to its compact size , this product has undergone a whole battery of tests in order to be certified according to the most demanding robustness standards . Certified according to the IP67 index , this telephone is fully protected against dust as well as temporary immersion (at a depth of 1 meter and for a maximum of 30 minutes), its reinforced coating allowing it to perfectly withstand temperature variations ,falls from a height of 2 meters as well as the multiple manipulations that it can undergo daily, for an improved longevity.

Encompassing a powerful 950mAh Li-Ion battery rechargeable using the Versatile Connector , this phone offers up to 120 hours of standby time , users being able to communicate for more than 10 consecutive hours , while enjoying a relatively fast recharge of their device, the latter needing only 4 hours to be charged to 100%. The location system available thanks to DECT , Ascom IR , Low Frequency and Bluetooth Low Energy technologiesallows users to know, in real time, the exact position of the phones in the range. Ensuring everyone’s safety, this model makes it possible, using alarms and a push-button , to warn other users in the event of loss of verticality , abnormal immobility or tearing , signals acoustic and automatic emergency calls that can also be configured.



An intuitive phone with cutting-edge features

Replacing the D81 model, the D83 Protector presented by Ascom redesigns professional wireless telephony using new generation components . This telephone allows easy navigation between the menus, the three programmable keys allowing in particular the highlighting of favorite actions . Offering access to the history of the last 50 calls received, missed and dialed , this Ascom D83 Protector solution integrates three separate directories for saving contacts and numbers : the local directory , the corporate directory and the central directory .. Encompassing configuration and shortcut services for calls and data , this phone supports SMS sending , up to 140 characters per message , which can be pre- programmed or assigned to audible alarms depending on their urgency .

While the 2.4” TFT screen with color display offers, thanks to its resolution of 240 x 320 pixels , a clear display of essential information: name and number of the caller, battery status ,…, the Equipped LED indicator signals, using a multicolored indicator , all incoming events, namely: calls, messages , etc. Supporting the G.722.2 and G.726 audio codecs , this DECT telephone offers transmission clear and precise wideband audio of the spoken words, the loudspeaker and the two microphonesavailable performing a faithful broadcast, without noise pollution , thanks to the adaptive reduction system of background noise . Including more than 14 different ringtones , this phone can be used in hands-free mode thanks to the duplex speakerphone and the 3.5mm jack available, the vibrate mode ensuring that each user does not miss any important event, even while operating. in noisy environments.

Technical characteristics :

Audiovisual settings:

• Professional DECT cordless phone
• 40 x 50mm (2.4”) TFT screen with color display (262,000)
• 240 x 320 pixel resolution with LED backlight
• Multicolor LED indicator for incoming calls and messages
• Wideband HD audio transmission
• Support for hands-free mode through the loudspeaker
• Duplex speakerphone with background noise reduction
• Two microphones available with adaptive noise reduction
• Presence of 14 different ringtones
• Sound adjustment on 8 levels in hands-free mode and with the headset
• Maximum ringtone sound level: 100dBA at 10cm distance
• Support for G.722.2 and G.726 audio codecs
• Vibrate mode available

Telephone functions:

• DECT wireless technology: frequency band at 1880 – 1900MHz
• Central directory: unlimited number of entries (max. 40 characters per name and max. 20 digits per number)
• Company Directory: 1,000 entries (max. 24 characters per name and max. 24 digits per number)
• Local Directory: 250 entries maximum (max. 48 characters per name and max. 24 digits per number)
• Call log: history of the last 50 received, dialed and missed calls with timestamp
• Simplified navigation: presence of 3 programmable keys, a 4-way key, a sound adjustment button, a microphone mute button, etc.
• PTT “Push To Talk” multifunction button available
• Enhanced security: encryption of communications
• SMS support: up to 140 characters allowed per message
• Storage capacity: 30 messages received / sent
• Ability to configure pre-programmed messages or audible alarms depending on the urgency
• Additional services: confirmation, call configuration, setting up shortcuts to calls, messages, data, etc.

Further information :

• Worker protection: push-button, standstill, standstill and pull-out alarms available
• Acoustic localization signal and automatic post-alarm emergency call configurable
• Robust: immunity to electrostatic discharge; resistant to drops from 2m and temperature variations
• IP67 certified: protected against dust and temporary immersion (at a depth of 1m for 30min max.)
• Integrated precise location system using Ascom Infrared, Bluetooth Low Energy, DECT and Low Frequency technologies
• Multi-language interface: Menu available in 22 different languages
• 920mAh Li-Ion battery: 10 hours talk time and 120 hours standby
• Charging time: 4 hours for a full charge
• Ports and interfaces: 1 multi-purpose connector (charge, download); 1 x 3.5mm jack; Bluetooth 5.0
• Product dimensions: 150 x 64 x 23mm
• Phone weight (with belt clip and battery): 175g
• Color: Charcoal gray / Black
• Operating temperature: -10°C to 55°C
• 1 year manufacturer warranty
