Aver PTC310N

AI-based automatic tracking – ideal for any event

Aver PTC310U offers 4K resolution for ultra-precise automatic tracking. It includes a Sony sensor that ensures quality video performance for every frame of your production.

Detailed video streaming

Its Zoom power is 24X: A 12x optical zoom and 2X zoom sensor. It works even when the camera moves vertically and horizontally, allowing you to highlight content and change shooting angles quickly. Deliver crisp, detailed video streaming with unmatched PTZ performance.

Artificial Intelligence at your service

With AI processing capability, the PTC310U can detect and capture human shapes and objects in motion in seconds. You also have the option of presenter mode, which consists of continuous tracking of speakers, giving you the freedom to leave the stage and interact with the audience. The camera focuses steadily, even if other people or objects get in the way.

Easy to install

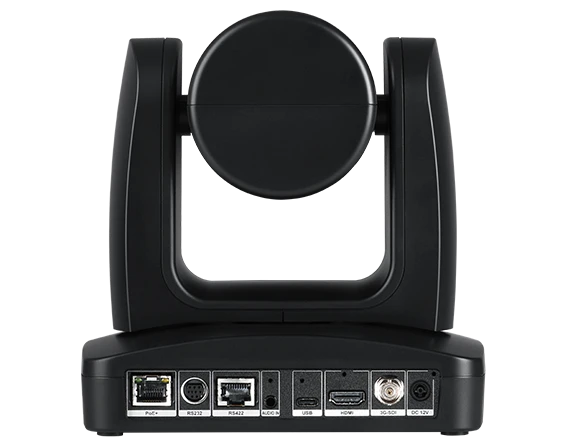

It offers 3 video outputs: HDMI, IP, and USB for an optimal experience. Lastly, it has an exclusive ceiling mount for convenience and efficiency.



Features:

• Image sensor: 1/2.8″ Exmor 4K CMOS
• Effective pixels: 8MP
• Output resolution: 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum illumination: 0.4 Lux (IRE50, F1 6, 30fps)
• Signal-to-noise ratio: 50dB
• Gain: Auto/Manual
• TV lines: 1400 (center)
• Shutter speed: 1/1 to 1/32.000 sec.
• Exposure control: Auto, Manual, Priority AE (shutter, IRIS), BLC, WDR
• White balance: Auto, Manual
• Optical zoom: 12X
• Digital zoom: 12X
• Zoom sensor: 2X
• Viewing angles: DFOV: 78° (wide) to 7° (zoom), HFOV: 70° (wide), to 6° (zoom) and VFOV: 42° (wide) to 3° (zoom)
• Focal length: f = 3.9 mm (wide) to 46.8 mm (zoom)
• Aperture (IRIS): F = 1.6 (wide) to 2.8 (zoom)
• Minimum working distance: 0.3 m (wide) to 1.5 m (zoom)
• Horizontal/vertical movement angle: Horizontal movement: ± 170°; vertical movement: +90°/-30°
• Horizontal/vertical movement speed (manual): Horizontal movement: 0.1° to 100°/sec, Vertical: 0.1° to 100°/sec
• Preset speed: Horizontal movement: 200°/sec, Vertical: 200°/sec
• Preset position: 10 (IR), 256 (RS-232)
• Camera control – Interface: RS-232 (DIN8) / RS-422 (RJ45) / IP
• Camera control – Protocol: VISCA/PELCO-D (RS-232/RS-422/IP), CGI (IP)
• Image processing: Noise Reduction (2D/3D), Flip and Mirror
• Electrical frequency: 50Hz/ 60Hz

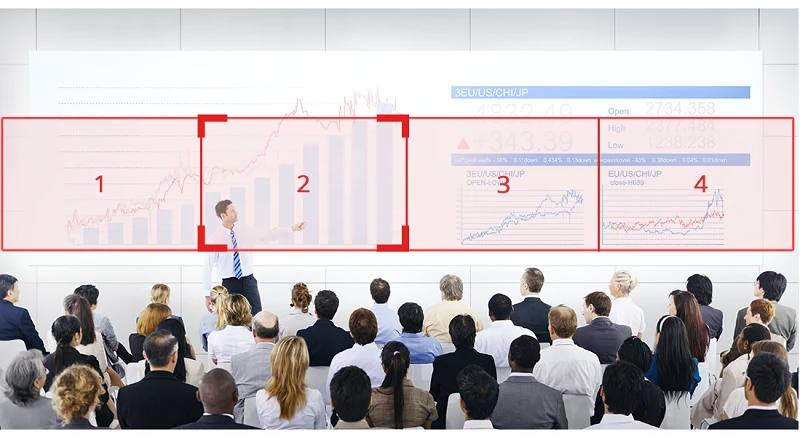

• Tracking mode: Presenter Mode, Zones Mode
• Net Weight: 1.7 (±0.1) kg
