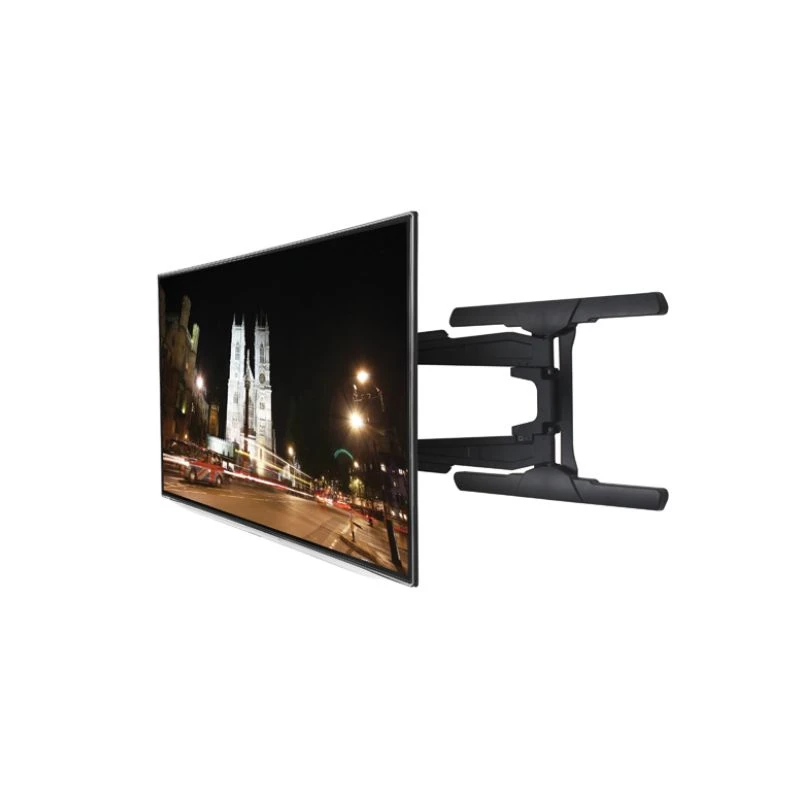

B-Tech BT8221 Full Motion TV Mount

Ultra-Slim double arm flat screen wall mount designed for large screens

B-TECH has introduced the BT8221 Full Motion TV Mount for large-sized screens. This TV mount is suitable for screens up to 65” screen size and can carry up to 36kg. This full-motion system allows you to swivel your screen up to 360º at the central pivot. Benefit from entire room coverage with this full lateral adjustment of the screen.

What is the BT8221?

The B-Tech BT8221 Full Motion TV Mount is a mounting bracket recommended for screens up to 65” in size. This solution accommodates mounting patterns up to 600 x 400mm. The TV wall mounting bracket is a fixing system designed to adjust your TV to a tilting angle from -15º to +15º.

In addition, the ultra-slim design allows close-to-wall installation when folded flat. If you are only looking for more distance from the wall you can use the spacer included with a minimum distance of 37mm and up to 560mm maximum distance from the wall.

Featuring three swivel points of 180º at wall, 360º at central pivot & 240º at interface, this mounting solution offers lateral adjustment of the screen once mounted. Installed in your conference or meeting room, this solution will allow you to display your presentation from any angle.

How to install the BT8221?

The BT8221 comes with a simple hook-on installation with all mounting hardware included. The mounting solution comes with integrated cable management to make your office room neater and the cover plates included will allow you to hide fixings. Your conference room will enjoy lateral adjustment of the screen once mounted and everyone will be able to see the screen thanks to the three swivel points.



Features:

• Up to 65″ screen size
• Maximum load: 36kg
• VESA compatibility: up to 600 x 400
• Universal fixings: up to 600 x 400 mm
• Tilt: -/+ 15º
• Swivel: 180º at wall, 360º at central pivot, & 240º at interface
• Distance from wall: minimum 37mm and maximum 560mm
• Colour: black
