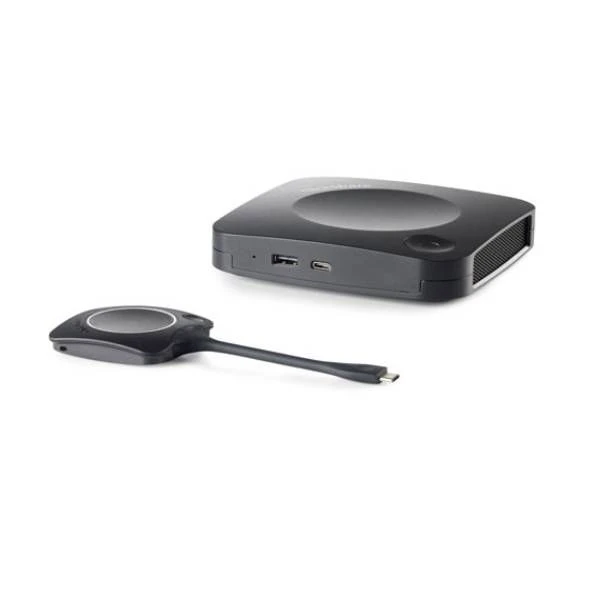

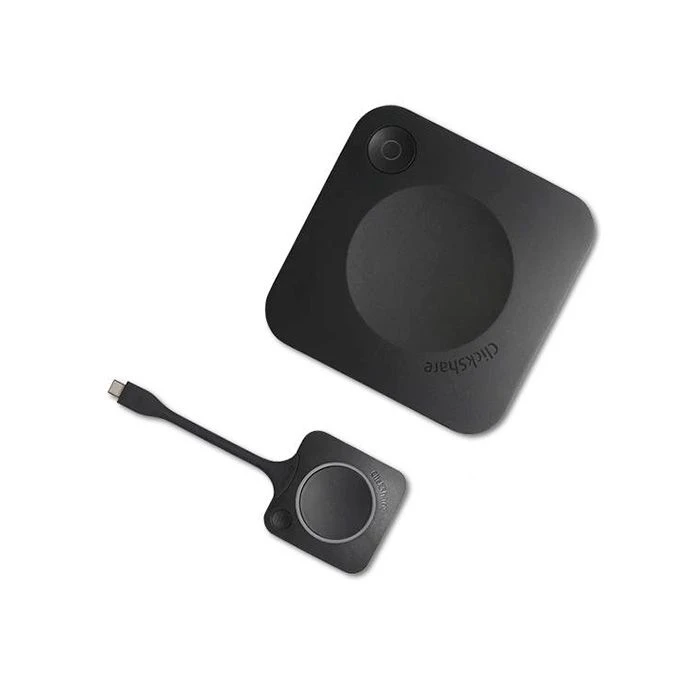

Barco ClickShare CX-20

Transform meetings into interactive presentations

Use your PC/MAC or mobile device, your video calling app and your videoconferencing system to transform meetings into interactive presentations. With the Barco ClickShare CX-20, you can maintain clear high-quality communication, and share files, presentations and all necessary materials during meetings. You only have to connect the ClickShare button to your PC or connect your mobile device using WiFi, and Barco ClickShare Conference will do the rest and connect you in 7 seconds flat.

Remote hassle-free collaboration

Small meeting rooms will be transformed into high-quality conference facilities using the conference and collaboration system, which will allow any employee, user or visitor to connect remotely without any complications. Once the CX-20 module is connected, you will only have to connect your device in order to start collaborating. Your files and peripherals (cameras, microphones, etc.) will be available for use and can be connected quickly and easily. With the Barco ClickShare CX-20, you can say goodbye to cables, installation time and meeting delays caused by technical hiccups. In just one click, the collaboration will be easier than ever before.

Any softphone, any device and any peripheral

This conference and collaboration system accepts Zoom, MS Teams, Skype, BlueJeans and any application you require. It is also compatible with PC, Mac and mobile devices. Connect using the ClickShare button or via WiFi and have access to all peripherals installed in the room: videoconferencing systems, speakers, microphones and cameras. Everything will be placed under your control, without any fuss.

Ideal for small meeting rooms

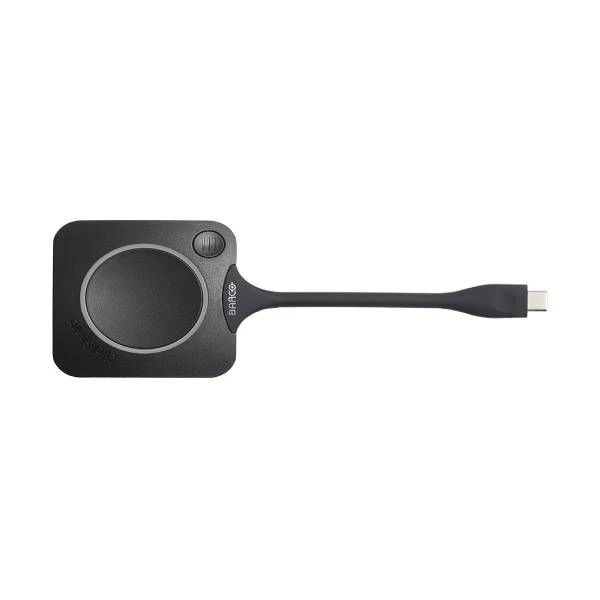

CX-20 includes a USB-C button for your meetings, making it the perfect addition for small meeting rooms. You can organise presentations, visits or meetings with up to 4 participants including one speaker, allowing you to share your content using your PC/MAC or mobile device, and the other participants can view the materials in high quality.







Features:

• Power supply: Standard 110/220 V AC plug
• Operating system: Windows 8/8.1/10 – 10.13 macOS and higher – Android v9 and higher (ClickShare App) – IOS 12 and higher (ClickShare App)
• Video outputs: 4K UHD resolution (3840×2160) at 30 Hz. HDMI 1.4b
• Audio output: USB, HDMI
• USB: 1 x USB-A, 1 x USB-C
• ClickShare buttons: 1
• ClickShare App: Desktop and mobile devices
• Native protocols: Airplay, Google Cast, Miracast
• Noise level: Max. 25 dBA at 0-30°C
• Max. 30 dBA at 30-40°C
• Authentication protocol WPA2-PSK in standalone mode and WPA2-PSK or IEEE 802.1X using the ClickShare button in network integration mode
• Wireless transmission protocol IEEE 802.11 a/g/n/ac and IEEE 802.15.1
• Reach: up to 30m (100 feet) between the ClickShare button and the ClickShare base unit
• Frequency band: 2.4 GHz and 5 GHz (DFS channels supported in a selected number of countries)
• Connections: 1x Ethernet LAN 1Gbit; 1x USB type C 2.0 (front); 1x USB type A 2.0 (front)
• Operating temperature range: 0°C to 40°C (32° F to 104° F)
• Maximum: 35°C at 3000m
• Storage: -20°C to +60°C
• Humidity: Storage: 0 to 90% relative humidity, non-condensing; in use: 0 to 85% relative humidity, non-condensing
• Anti-theft system: Kensington lock
• Certifications: FCC/CE
• Room Dock (peripheral support): Yes
• Local view and moderation: Local view of the room display only
• Network connection: LAN and WiFi
• Management and reporting: Yes
• Warranty: 1 year – Optional: 5 years coverage via SmartCare
• Dimensions (HxWxD): 34x135x135mm
• Weight: 900 gr
