BenQ InstaShow WDC20

BenQ InstaShow WDC20

A wireless presentation system for PCs and mobile devices that boosts content sharing

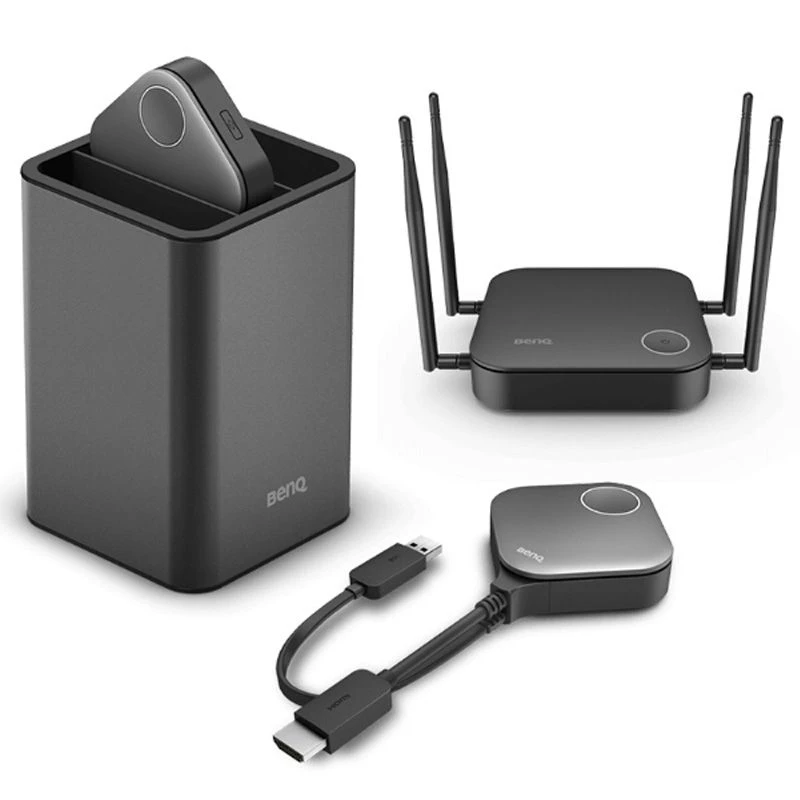

BenQ’s InstaShow WDC20 wireless presentation solution brings intelligence to the process of information exchange and collaboration between parties. Consisting of a receiver, two broadcast buttons and a storage stand, this next-generation solution lets you share 4K content in seconds. A scalable system, this model supports the connection of up to 32 sharing buttons, so that each participant can quickly present their ideas, while the system’s low power consumption allows you to do your bit for the environment while conducting efficient business conferences.

Plug&Play: quick start

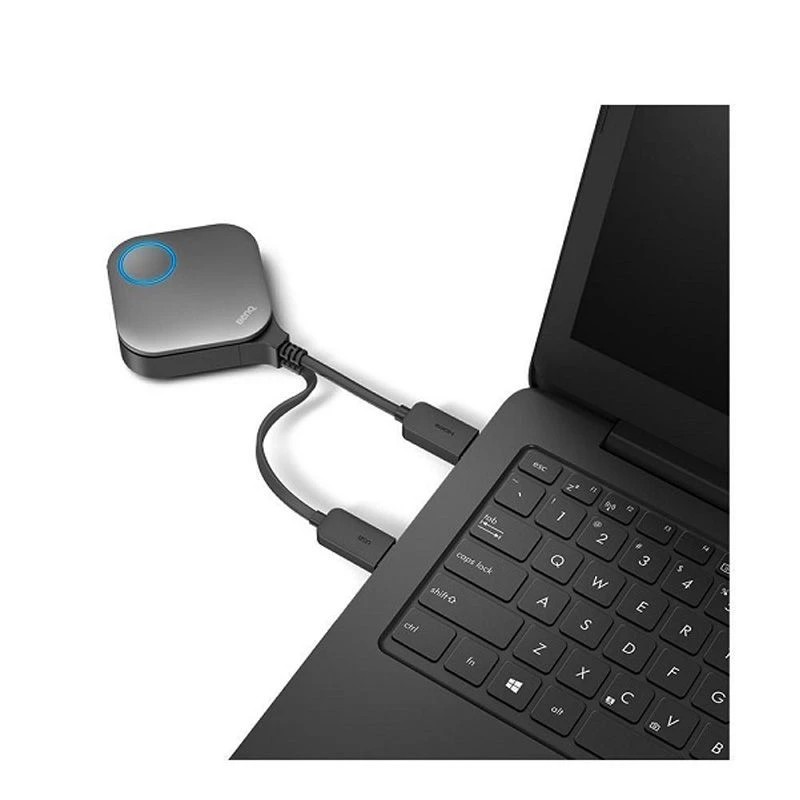

Ready to use, this solution requires no software or complex installation to operate. Pair the receiver with the buttons using a wireless connection, and connect your presentation modules to your PC using the available dual USB-A + HDMI connector to start sharing on a computer with a single touch. This versatile system also supports sharing from a smartphone or tablet, with a simple download of the InstaShare app available on Android and iOS allowing you to share content wirelessly with just a few clicks.

Clever technical features

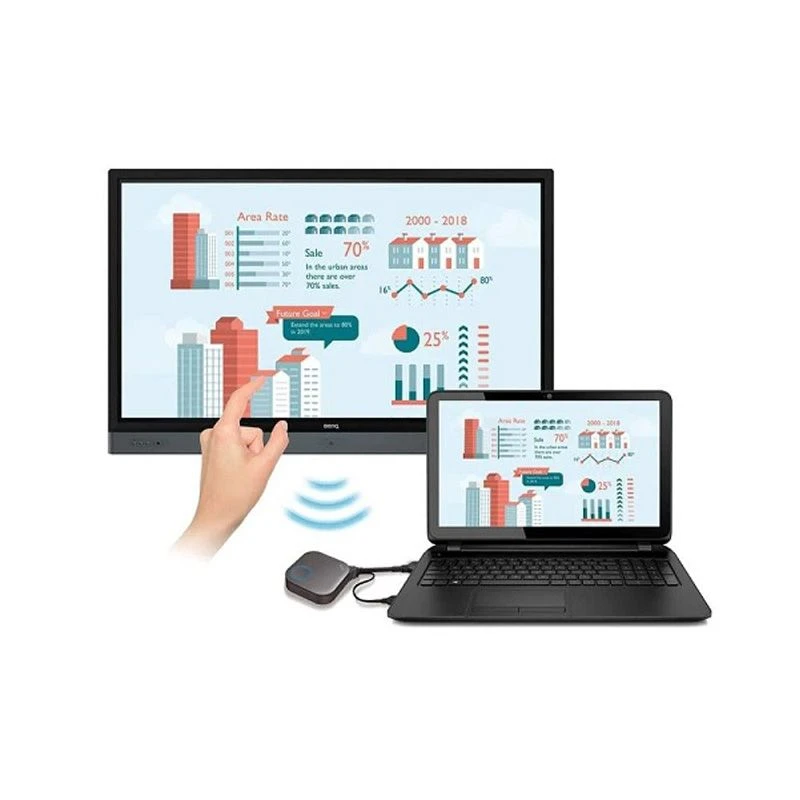

A new generation model, this broadcasting system supports the simultaneous broadcasting of 4 different contents through the same screen thanks to the split screen system. This means that you can broadcast your content to the screen simultaneously via your smartphone or tablet, while a simple press of the “split” button on the PC buttons allows you to present your ideas via the same screen as your colleagues, up to a limit of 4. The LED indicators on the receiver and the split buttons allow you to see the connection status of your system at a glance using a simplified colour code.

Connectivity

Upgrade your wireless presentation system with additional buttons. You can choose between USB + HDMI buttons (BENQWDC20BT) and USB-C modules (BENQWDC20BTC), the latter being universal brackets that work perfectly with each other and allow you to equip all types of computers.

Features:

InstaShow button:

• Wireless presentation button WDC20
• Smooth video and audio technology
• Frame rate: up to 60 frames per second
• Maximum output resolution: 3840 x 2160px (4K)
• Supports 720 x 480px to 3840 x 2160px resolutions
• Maximum input resolution: 1920 x 1080px
• 16-bit 48kHz stereo and radio audio quality
• Reset button and split button available
• LED indicator available: red (start), green (Wi-Fi connected) and blue (presentation in progress)
• Split screen support: share with up to 4 users simultaneously on a single screen
• Up to 32 buttons can be connected simultaneously
• InstaShare app: share content directly via smartphone or tablet
• Maximum range of 15 meters between button and receiver for optimal use
• Connectivity: USB-A + HDMI; Wi-Fi
• Compatible platforms: Windows, Mac, Chrome
• Power supply : DC 5V±10%, 0.9A
• Power consumption : 4.5W for normal use
• Button dimensions (with cable): 81 x 291 x 24.2mm
• Button weight: 81g
• Operating temperature: 0 to 40°C

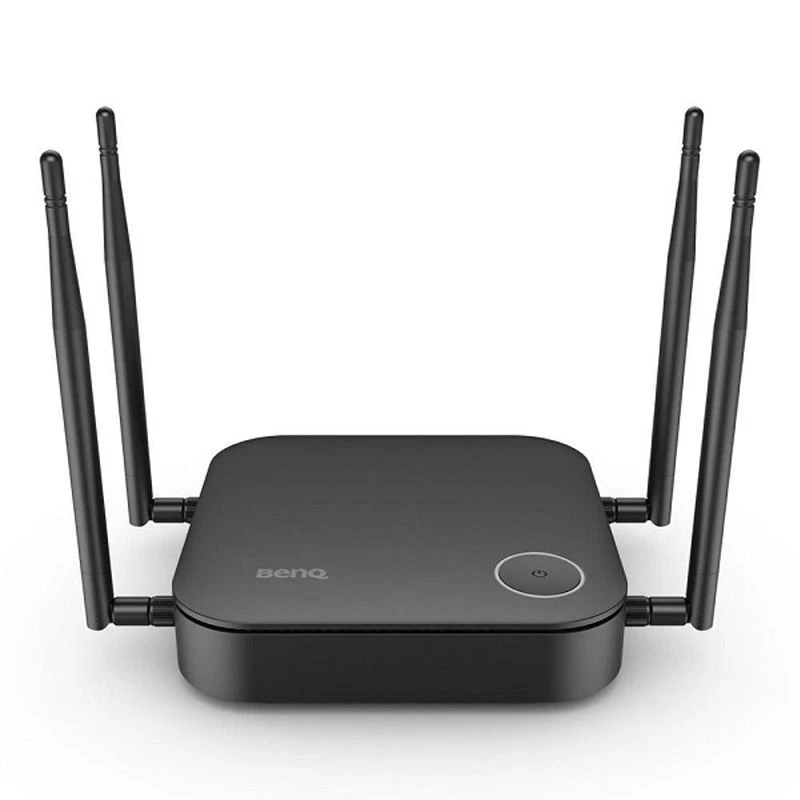

InstaShow receiver:

• Signal transmission device
• Presence of an association button
• LED indicator available: red (start), green (ready for connection) and blue (presentation in progress)
• Ports and interfaces: LAN; HMDI output and micro USB
• Power supply: DC 12V±10%, 2A
• Power consumption: 24W
• Authentication and security protocol (encryption) : WPA2 / WPA2 personal (AES 128bits)
• Receiver dimensions (excluding antennas): 154 x 34 x 140mm
• Receiver weight: 330g

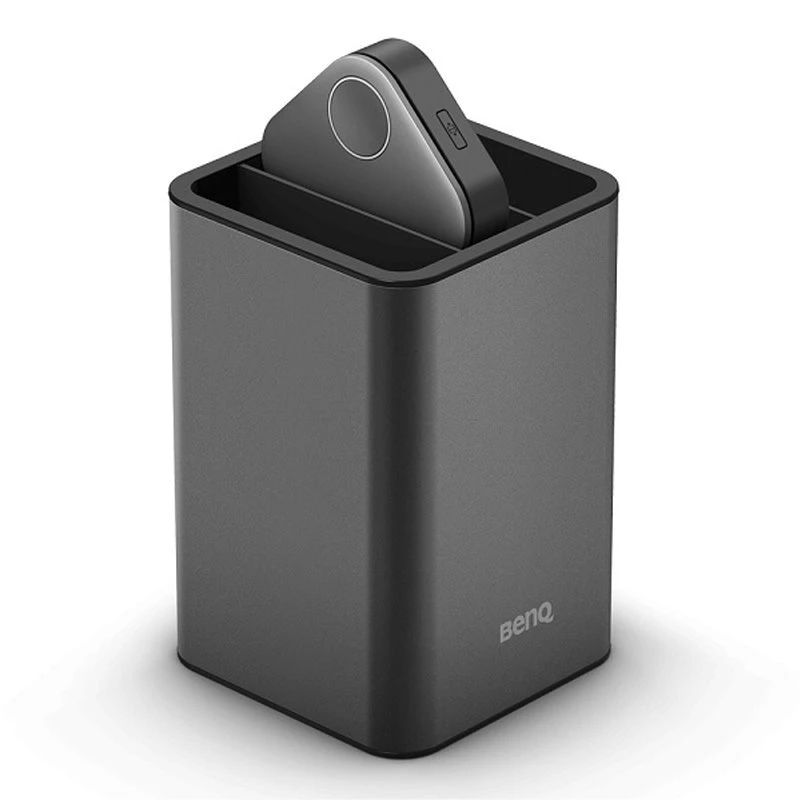

Additional features:

• Additional element to store your presentation buttons
• Stand dimensions: 100.4 x 92.6 x 152mm
• Stand weight: 550g
