Cisco Webex Room Kit Plus – Video Conferencing Kit

Ultimate video collaboration experience for large video rooms

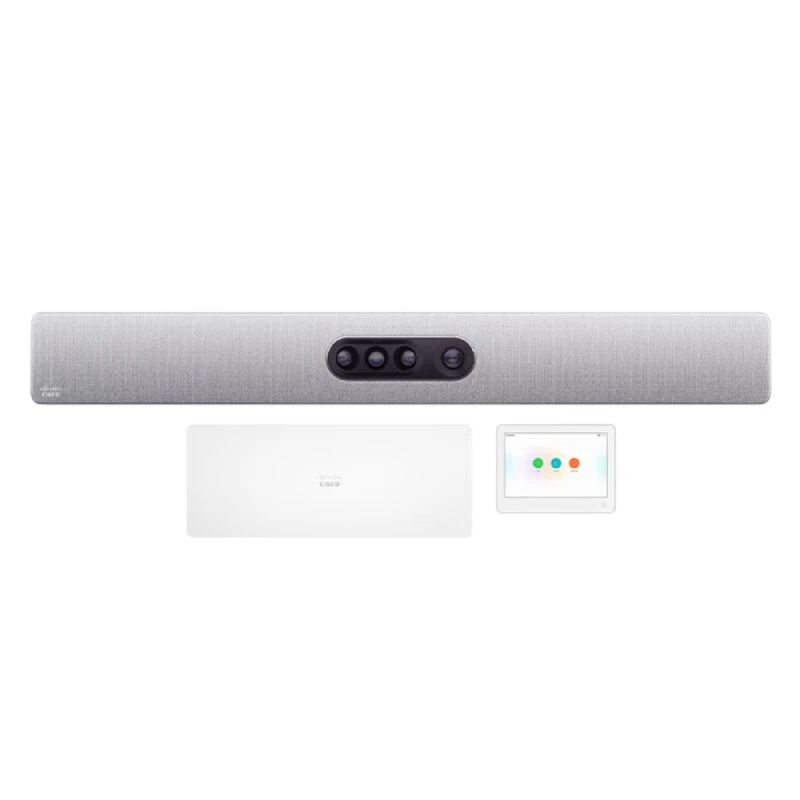

The Room Kit Plus from Cisco Webex is a full video conferencing kit for improved collaboration and communication in the meeting room. The Cisco Kit includes the Webex Codec Plus, the Webex Quad Camera, the Webex Room Navigator control unit, and a wall mount for the Quad Camera.

Exceptional video delivery

The Quad camera comes with 5K CMOS sensors and intelligent machine switching providing auto-framing with face detection. The 83º horizontal and 51.5º vertical fields of view will make sure your meeting participants are correctly framed. With the most recent camera technology, you can be seen from various angles without having to manually change the tilt. With 5x digital zoom and a focus distance from 1m to infinity, you can move away from your camera and still be seen in high quality. The autofocus, brightness, and white balance will deliver high-quality video.

High-end audio inputs

The Cisco Webex Room Kit Plus will deliver crystal clear sound with high-quality audio and a subwoofer line out for Quad Camera. No longer be disturbed during your video conferencing meetings with automatic gain control and noise reduction features. The integrated microphone array will deliver accurate speaker tracking. The Codec Plus is an entry-level integrator, supporting third-party audio systems and allowing audio-visual integration and deployment in your meeting rooms.

Effortless connectivity

The Room Navigator control unit and Codec Plus will simplify room monitoring with easy control access such as lights, and blinds.  The Room Kit Plus from Cisco Webex ensures end end-to-end security with IP services, administration, and network settings protection on the Webex Room Navigator controller.



Features:

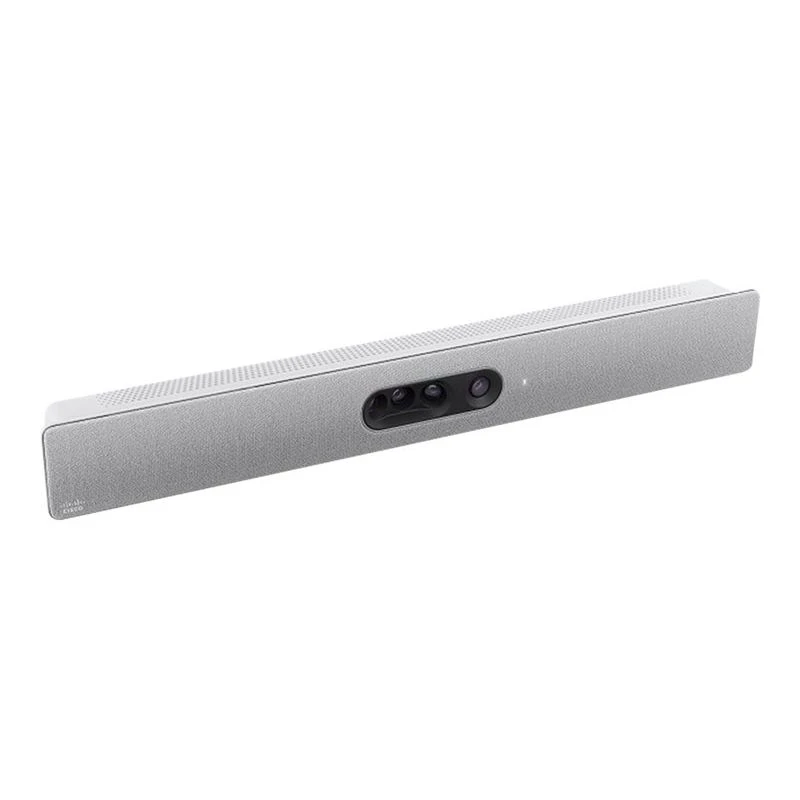

Webex Quad Camera

• 5K Ultra HD camera
• Support up to 60 fps
• 15.1 MP image sensor
• 1/1.7 CMOS
• 5x digital zoom (3 tele-lenses each with 50° horizontal field of view)
• f/2.0 aperture
• 83° horizontal field of view; 51.5° vertical field of view
• Auto-framing (audio + face detect)
• Dimensions: 95 x 12 x 10.3 cm
• Weight: 4.8 kg

Webex Codec Plus

• 1 Ethernet (RJ-45) 10/100/1000 for LAN
• 1 Ethernet (RJ-45) 10/100/1000 for direct pairing with camera (camera control)
• 1 Ethernet (RJ-45) 10/100/1000 with PoE, for direct pairing with Webex Room Navigator
• Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz for LAN- not available in non-radio versions
• 2×2 multiple input and multiple output (MIMO) 1-line out mini-jack (stereo)
• Dimensions: 35.9 x 4.3 x 14.3 cm
• Weight: 1.77 kg

Webex Room Navigator control unit

• Display: 10.1″ LCD
• Cable connectivity technology
• Dimensions: 24.2 x 16.9 x 7 cm
• Weight: 920 g
