DYNASCAN F-15

Dynascan F-15

PMR446 Walkies, submersible, robust and ready for any environment

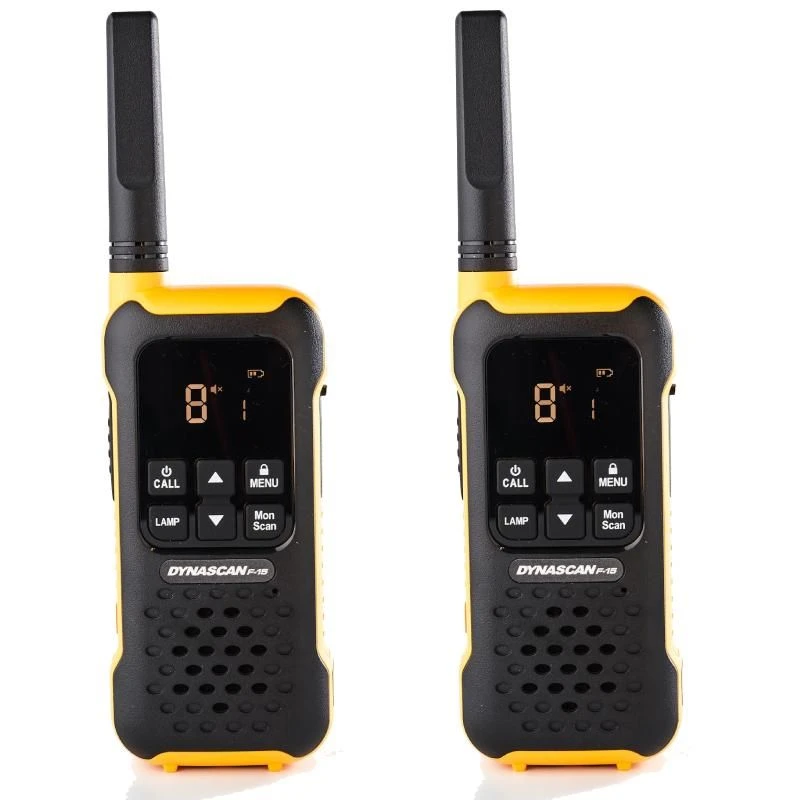

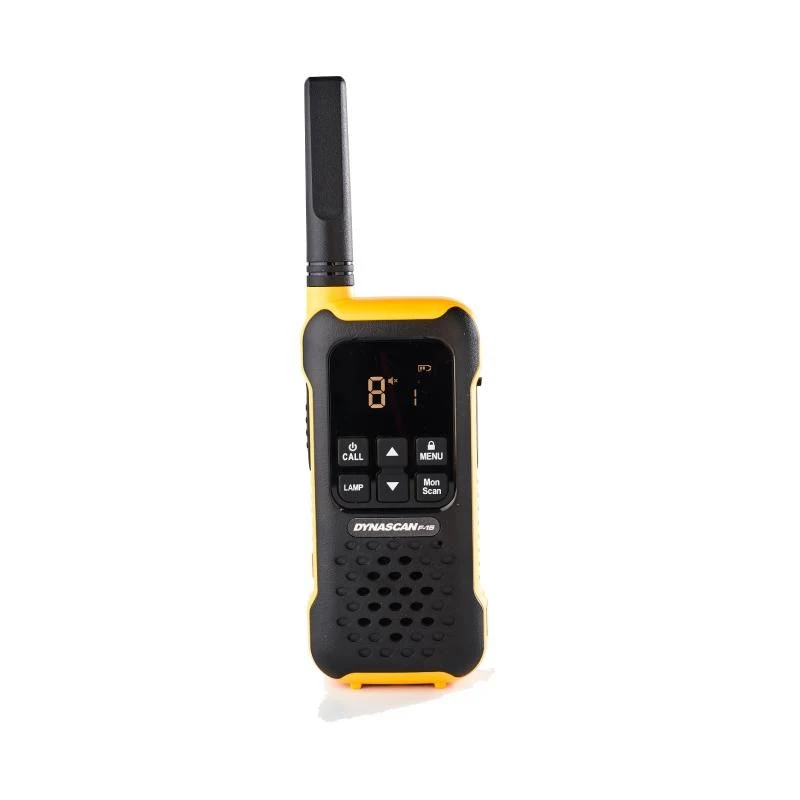

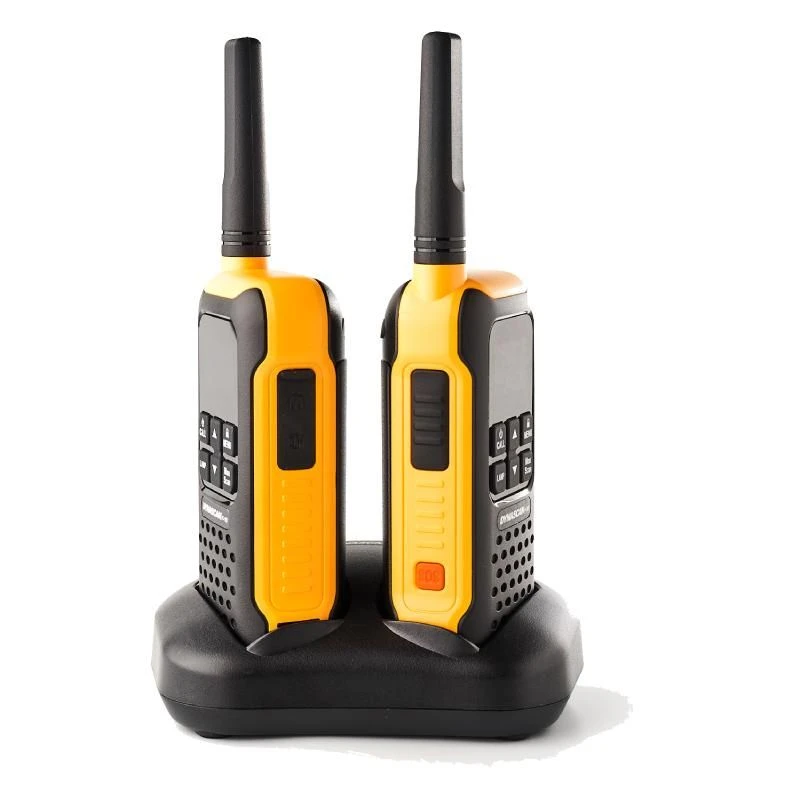

Dynascan’s latest innovation is the F-15, a pair of PMR-446 Walkie Talkies for unlicensed use, fully waterproof and submersible, making them very suitable for both outdoor and indoor use: communication in large spaces, hotels, shops, sporting events… but also for mountain activities, climbing, hiking, camping.

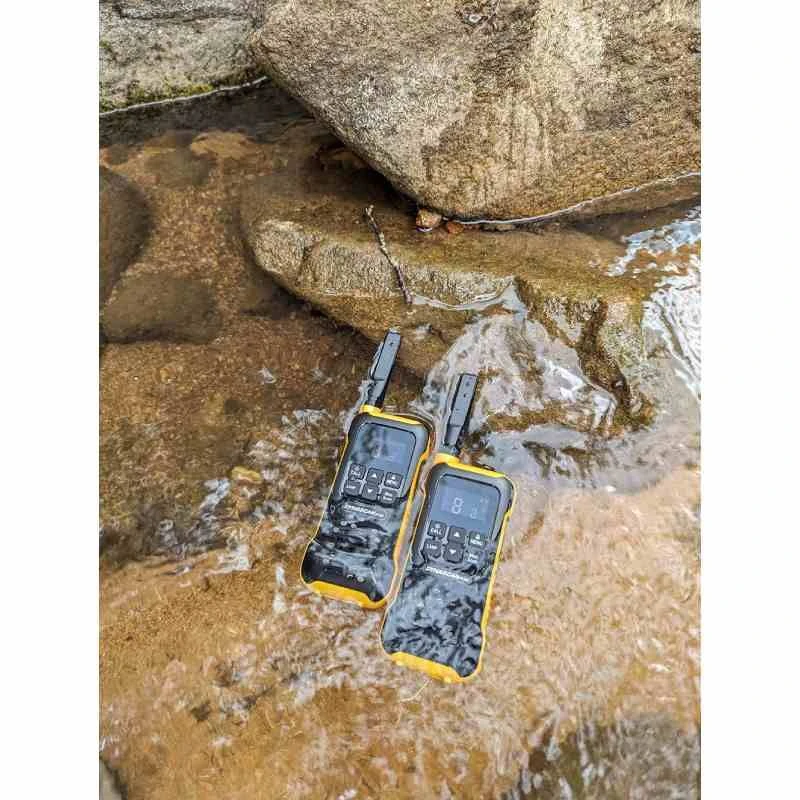

The Dynascan F-15 is robust and powerful, allowing you to keep in touch even in the most extreme environments. These walkie-talkies not only float on water, but can be kept submerged up to 1 metre for 30 minutes. Submerge up to 1 metre for 30 minutes.

Emergency button – SOS

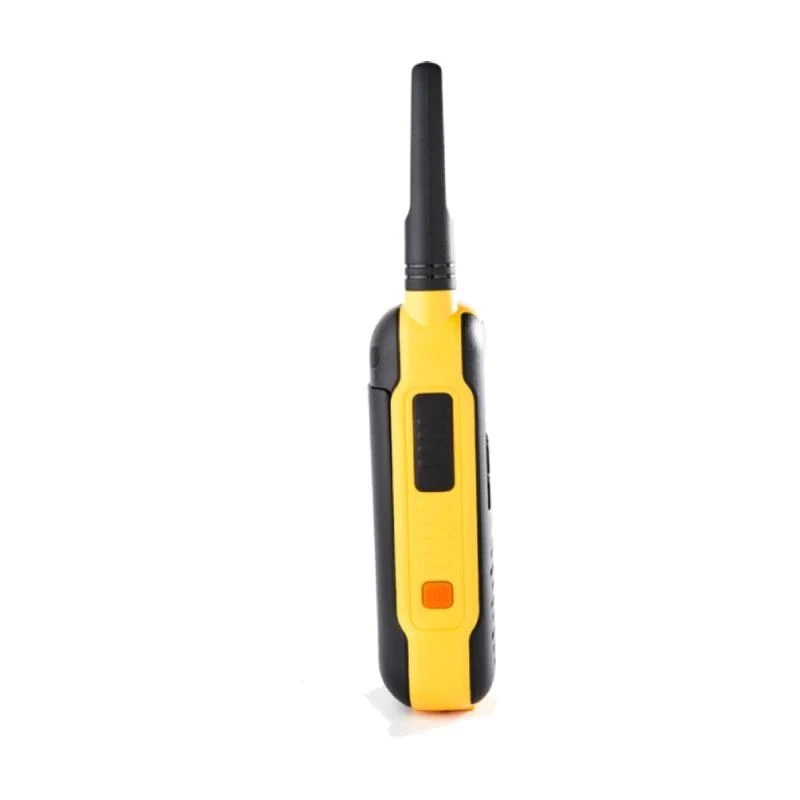

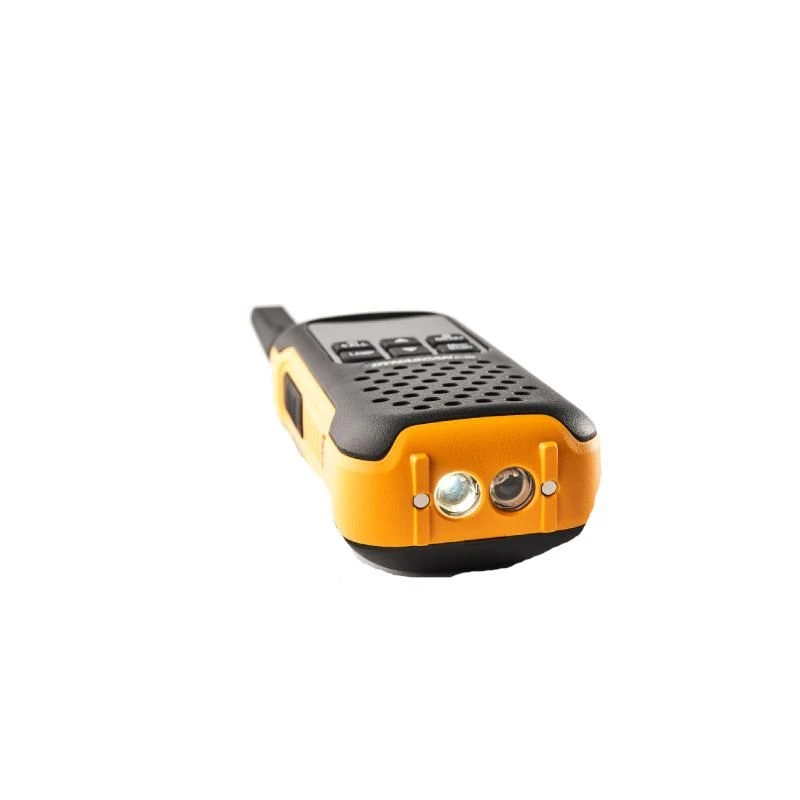

The Dynascan F-15 has a built-in LED torch and LED torch that automatically activates when in contact with water. This is very useful for professionals working at night or for night excursions. It also has a clearly visible emergency button on the left side, which in case of alarm activates a hands-free call and an audible alarm to let your group know you need help.

Dual listening function

This function allows you to scan the current channel and another channel alternately, so you can listen to two channels at the same time.

Features:

General:

• Frequencies: 446.00625 MHz – 446.19375 Mhz (Tx/Rx)
• Number of channels: 8+8 (16)
• Type of antenna: Integral
• Operating temperature: -20ºC +60ºC
• Supply voltage: 3.6 Vdc/4.5 Vdc
• Battery: 3 Ni-MH 1.2V 1200 mAh AA or alkaline batteries
• Modulation: 8K50F3e (FM)
• Channel: 6.25 KHz

Transmitter:

• Frequency adjustment: +/- 2.5 ppm.
• RF Power: 2.5 W
• Maximum deviation: +/- 2.5 KHz
• Adverse emission: <-36 dBm
• Power consumption: </=1.3A

Receiver:

• Sensitivity: <2.2 μV
• Audio distortion: <5% (60% volume)
• Adjacent channel sensitivity: ≥60 dB
• Intermodulation: ≥60 dB
• Adverse radiation: <-57 dBm
• Current consumption: ≤300 mA
