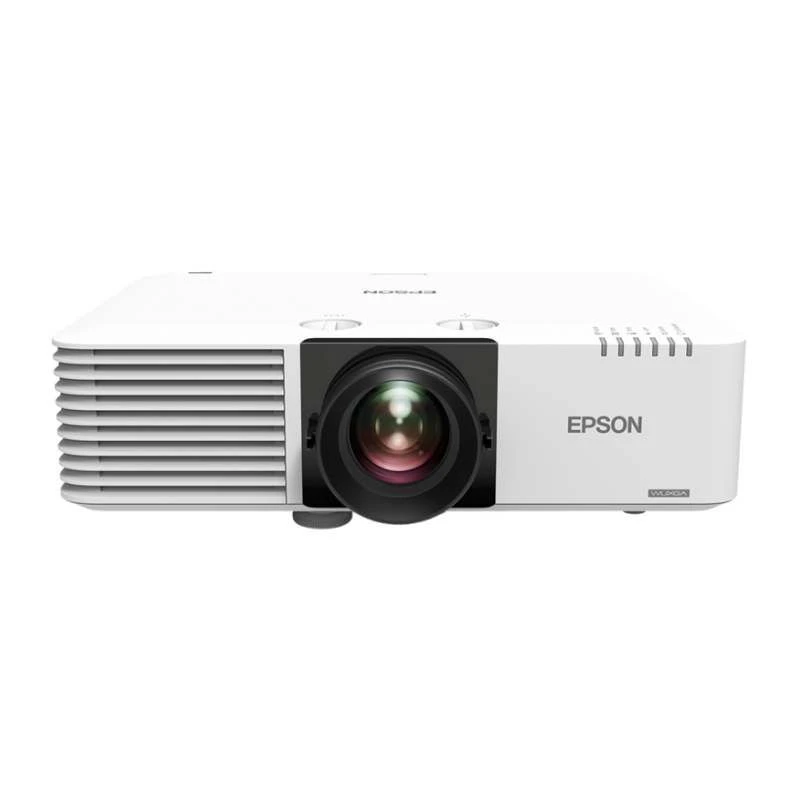

Epson® Epson EB-L630U

Epson EB-L630U

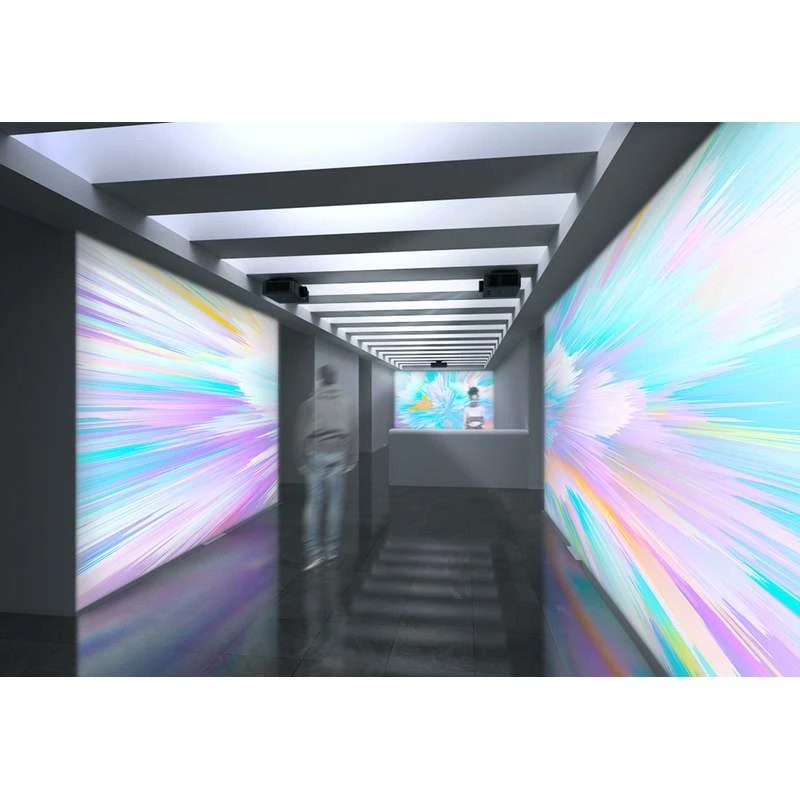

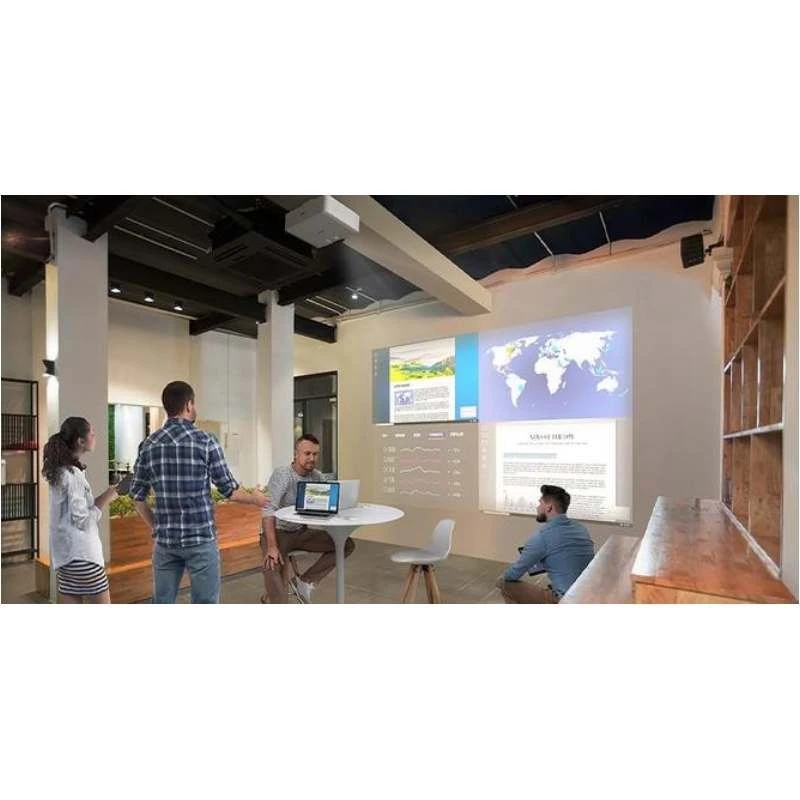

As the market leader in 3LCD technology, Epson continues to enhance its high-brightness laser projectors with even smaller and more compact projection solutions. The EB-L630U offers even more effective, practical and creative projection applications in many different industries.

Bright and cost-effective projection solutions

Capable of producing bolder, brighter, more captivating and impactful images, even in brightly lit environments, the EB-L630U offers an impressive 6,200 lumens and Full HD WUXGA resolution at an affordable price.
This means users can upgrade to laser performance and reliability, with reduced power consumption and without paying a premium price. It also includes support for 4K input, detail enhancement technology,
margin matching and wide lens rotation to meet the most demanding installation environments. The EB-L630U can project images up to 500″ (12.7 metres), any reduction in brightness and all detail.

Enhanced connectivity

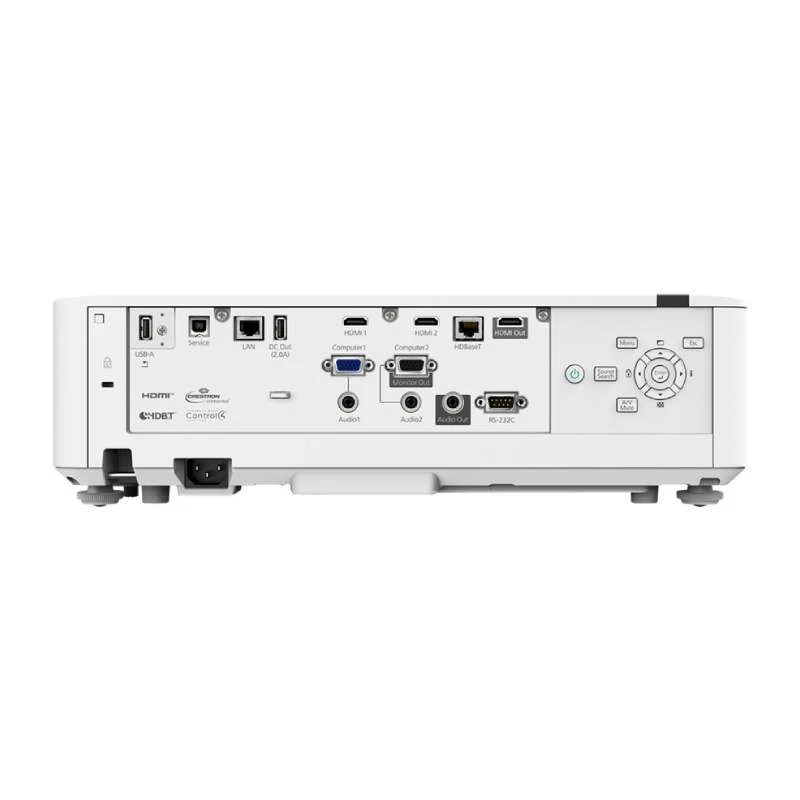

This projection solution offers several different ways to connect, shows multiple sources simultaneously and makes presentations over wireless networks. The EB-L630U is equipped with future-proof connectivity options including HDMI and HDBaseT, with 4K signal support 5 GHz wireless connectivity with enterprise security, enhanced Miracast technology, built-in media player and compatible with Epson’s ELPWP10 wireless presentation system.

Easy and flexible installation

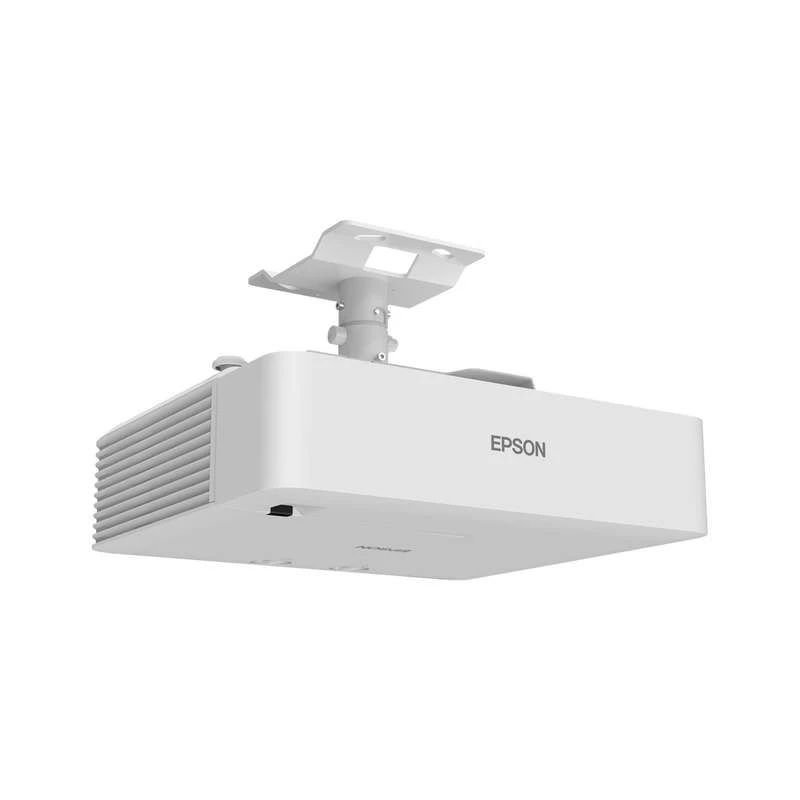

This sleek and compact projector supports 360-degree installation without compromising projection quality and supports an ultrapanoramic 16:6 screen, HDMI output and edge blending for multi-projector installations.

Features:

• Projection system: 3LCD technology, RGB liquid crystal shutter
• LCD panel: 0.67 inch with C2 Fine
• Color Light Output: 6,200 lumen- 4,340 lumen (economy) in compliance with IDMS15.4
• White Light Output: 6,200 lumen – 4,340 lumen (economy) In accordance with ISO 21118:2020
• WUXGA Resolution
• High Definition Full HD
• Appearance ratio: 16:10
• Contrast ratio Over 2,500,000: 1
• Light source: Laser
• Light source: 20,000 Hour Durability High, 30,000 Hour Durability Eco
• Vertical manual trapezoidal correction: ± 30 °, Horizontal manual ± 30 °
• Video editing 10 Bits
• Color rendering: up to 1.07 billion colors
• Projection ratio: 1.35 – 2.20:1
• Manual zoom, Factor: 1 – 1.6
• Lens Shift Manual – Vertical ± 50 %, horizontal ± 20 %
• Image dimensions 50 inches – 500 inches
• Projection distance: Tele 2.4 m – 23.8 m
• Projection lens: F1.5 – 1.7 number
• Focal length: 20 mm – 31.8 mm
