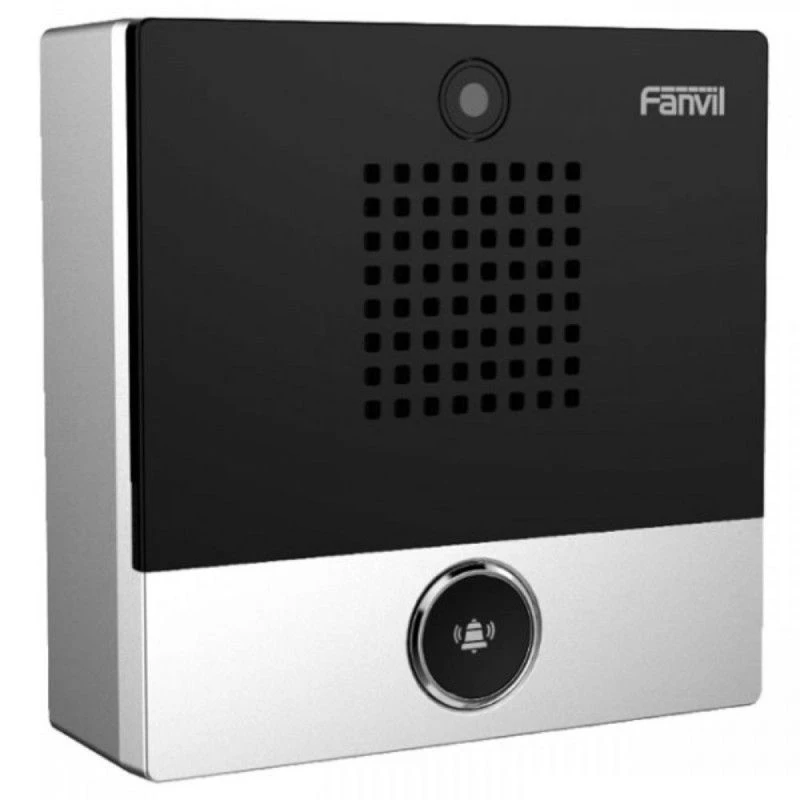

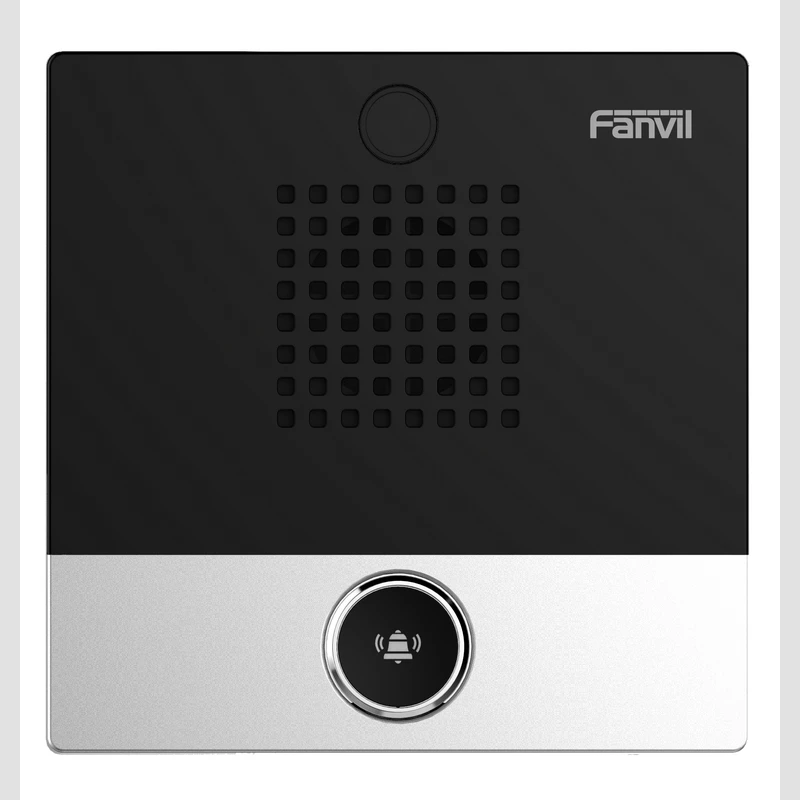

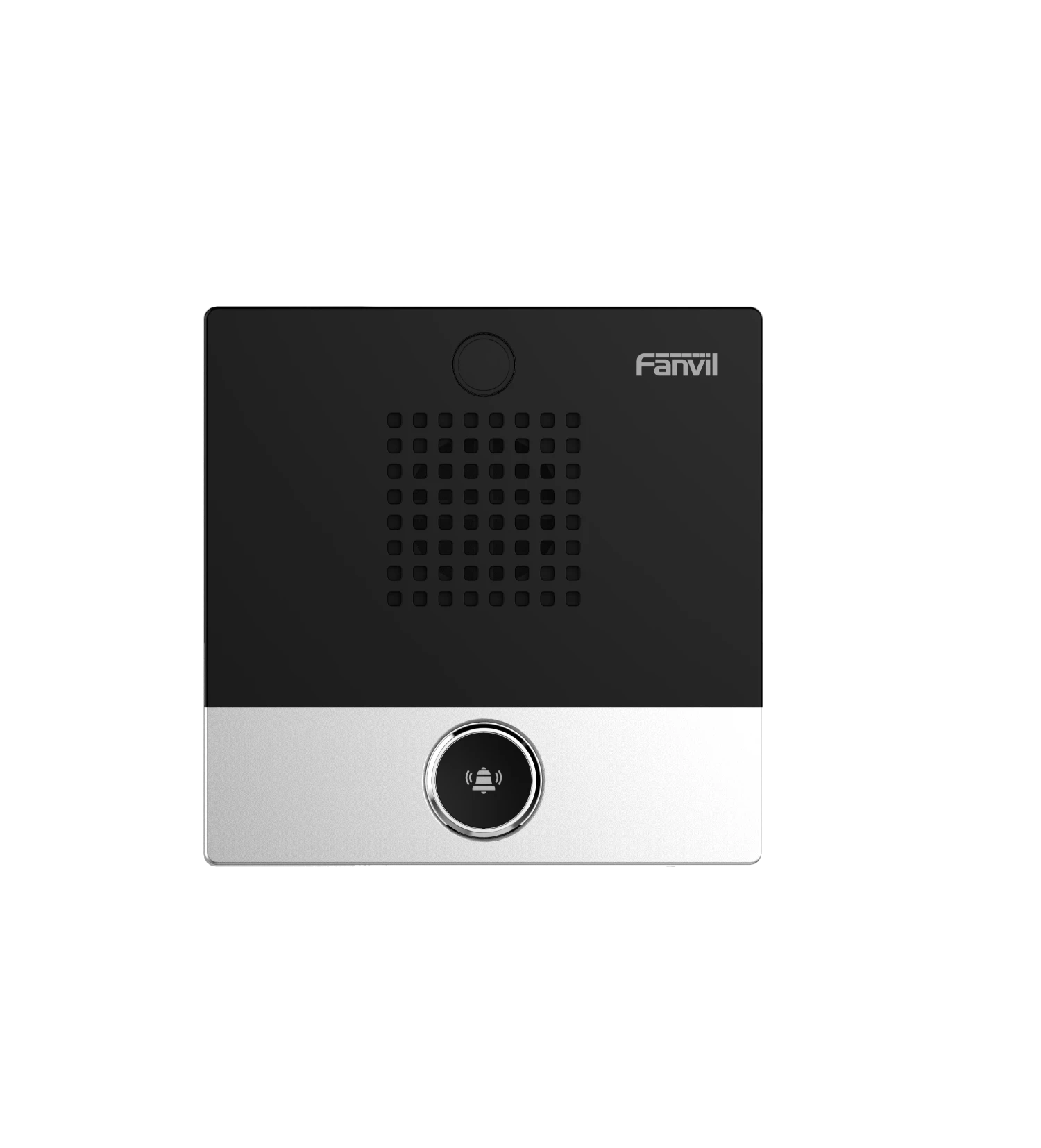

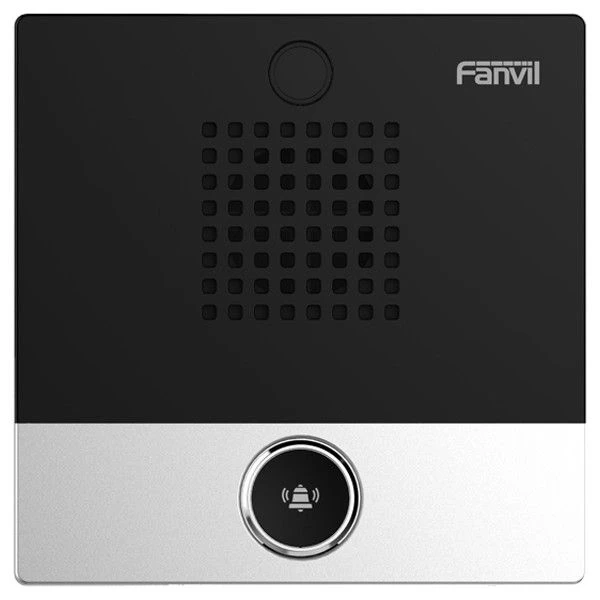

Fanvil I10 SIP Intercom

Combining Security and Intercom Functionalities

Integrating with access control, audio intercom and broadcasting functions, the Fanvil i10 SIP Intercom offers a high-quality communication solution for office entrances, apartment entrances, schools or nursing homes.

Easy to Control and Manage

The device can be connected to existing office access controls through the output interface. Users can open the door from a distance using VoIP or cellphones after the visitor calls with just one button.

Users can also easily configure and maintain the system with Fanvils Device Management System.

Robust with HD Audio

Featuring an IP54 rating and a wide temperature range of -20ºC to 50ºC, the device can be used in a variety of indoor environments without the issue of damage from dust or water. The sound is never compromised by location either as with built-in acoustic echo cancellation and HD audio the sound is always crystal clear.

Features:

• IP54 waterproof and dustproof
• -20 °C to 50 °C wide range temperature adaptability
• Compatible with engineering 86 box size, easy installation, and configuration
• Built-in 1W speaker and Acoustic Echo Canceller (AEC)
• Built-in 1short circuit input/output interface
• Functionality including security, intercom, and broadcasting
• Built-in HD camera and with backlight compensation function (for i10V).
• Online management and upgrade
• High compatibility – Compatible with major platforms: Aterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc.
• Dynamic multicast function
• Support ONVIF
• Support customized DSS keys
• Network Time Synchronization
• Action URL / Active URI
• Wideband ADC/DAC 16KHz sampling
• Narrowband Codec: G.711a/u, G.729AB, AMR, iLBC
• Wideband Codec: G.722, AMR-WB, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
