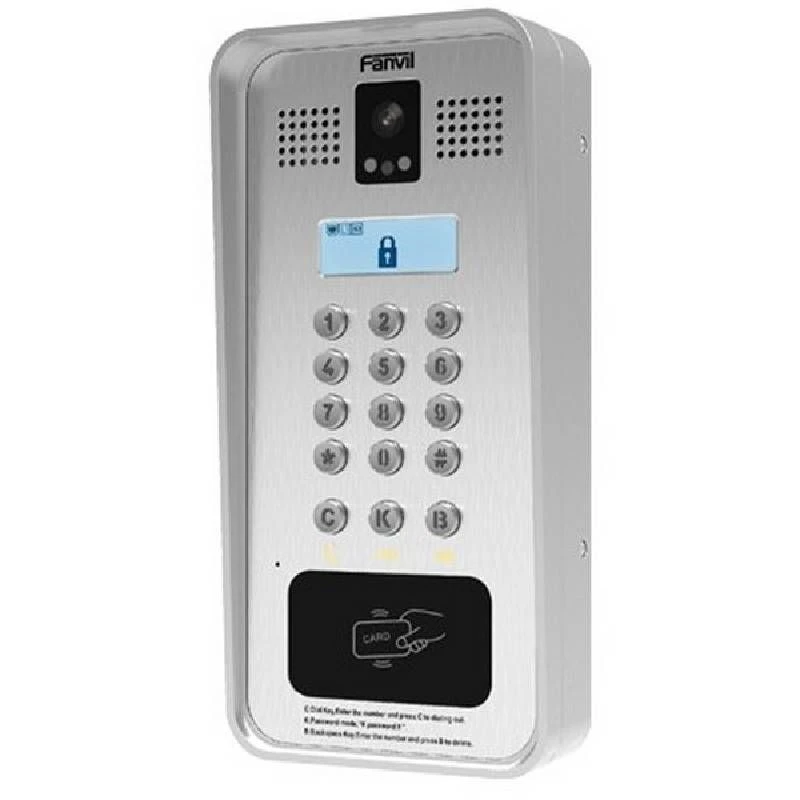

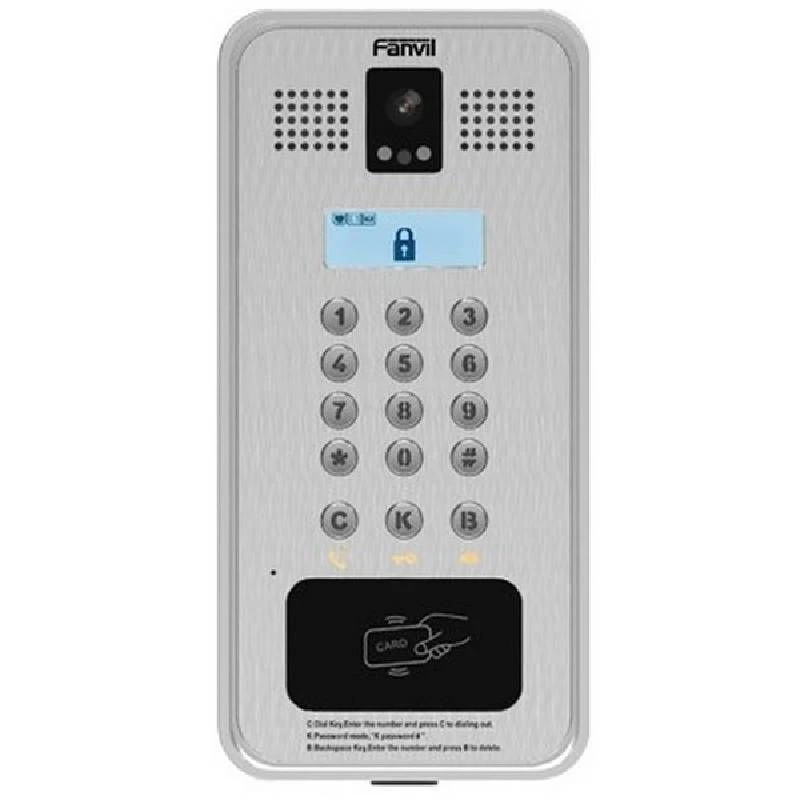

Fanvil I33V Intercom

Fanvil – I33V SIP Intercom

An integrated, multifunctional and resistant intercom for outdoor use

Integrating access control, audio intercom, recording and broadcast functions, the Fanvil I33V SIP intercom offers a high-quality communication and security solution for a wide range of locations, both indoors and outdoors.

An intelligent and versatile intercom

The device can be connected to existing access controls via the included interface. This model features a wide-angle HD camera so you can see who you’re communicating with in real time. It supports a triple means of access, by code, password and RFID card, in addition to remote unlocking by the security officer.

In addition to its ability to relay information from other surveillance devices, it can also record audio if it is connected to a surveillance server. Its resistant casing protects it from deliberate damage and extreme conditions.

So security is guaranteed at all times, while simplifying relations between the operator in charge of access and visitors.

A system that’s easy to install

Users and installers of the Fanvil I33V system can also easily configure and maintain their installation thanks to the Fanvil Device Management System.

With its self-provisioning, it is quick to integrate. It can be deployed in a fleet of devices and quickly connected to the network with customisable programming, for fast, efficient installation tailored to your particular security needs and challenges.

Its ability to be powered via POE ensures simple cabling management and ease of installation and maintenance.

Fanvil quality

With an IP65 rating for resistance to water and dust, the device can be used without risk in all installations, even in the most exposed spaces. Its IK10 certification means it can withstand any attempts at deliberate damage.

Sound quality is never compromised by location, because with built-in acoustic echo cancellation and Full Duplex HD audio, your communications are always crystal clear.

Its microphones are multi-directional, so you can be sure that the person you’re talking to will be able to speak clearly.

The I33V also features dedicated codecs for real-time sound reprocessing, as well as a system for attenuating ambient noise.

Its 3 Watt loudspeaker ensures that the call is transmitted clearly, even in noisy environments, for smooth communication.

Its HD H.264 camera has two million pixels and a CMOS sensor, to ensure a high-quality video conversation. Its wide angle gives the security controller a clear view of the situation.

Technical specifications :

• 2 SIP lines
• Compatible with standard SIP protocol (RFC3261) and the main IPPBX/IMX platforms
• Access control, intercom and broadcast all-in-one
• Status indication icon
• Access control (per call, per code, IC/RFID, Indoor Switch)
• Telecom-quality HD audio with built-in 3W speaker and AEC
• Camera with 112° 2Mpx 30 fps CMOS sensor
• Online system maintenance and management
• Protection level: IP65 and IK10
• Storage temperature: -40 – 70ºC
• 1 x CMOS .264 30 fps 720p
• PoE enabled
• Digital keypad
• 1 DSS button (speed dial)
• 5 indicator lights (including backlighting of shortcut keys)
• 1 internal switch
• Full-duplex echo cancellation
• Can be wall-mounted or flush-mounted
• Dimensions: 233 x 130 x 74mm
• Warranty: 2 years
