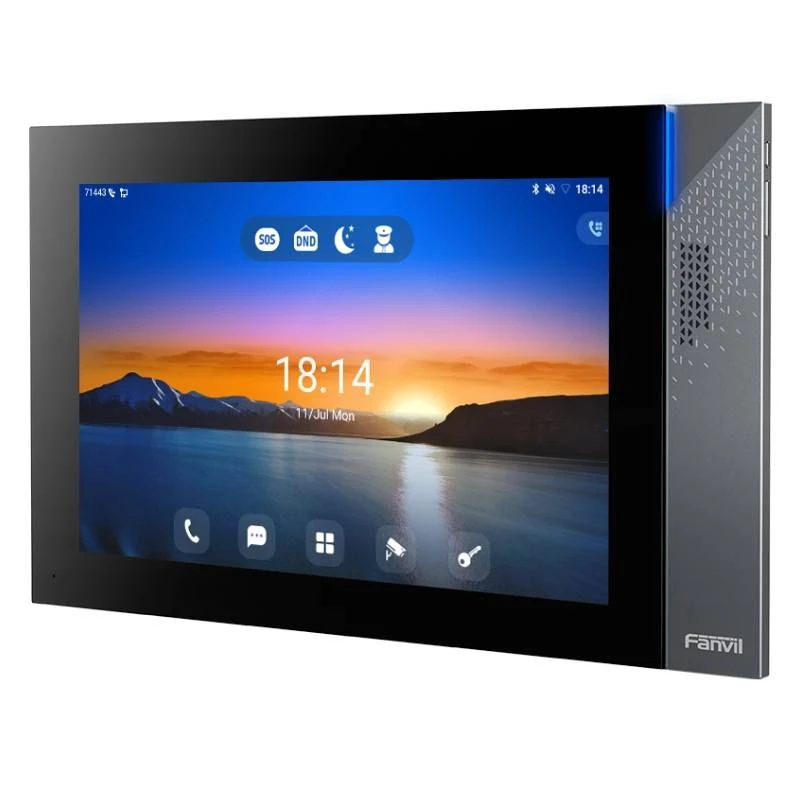

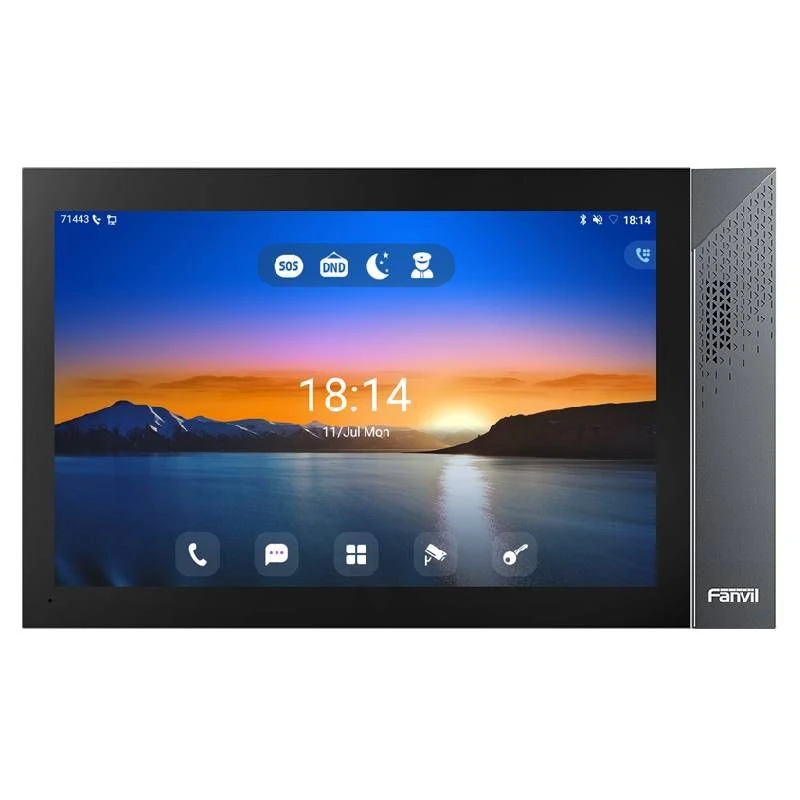

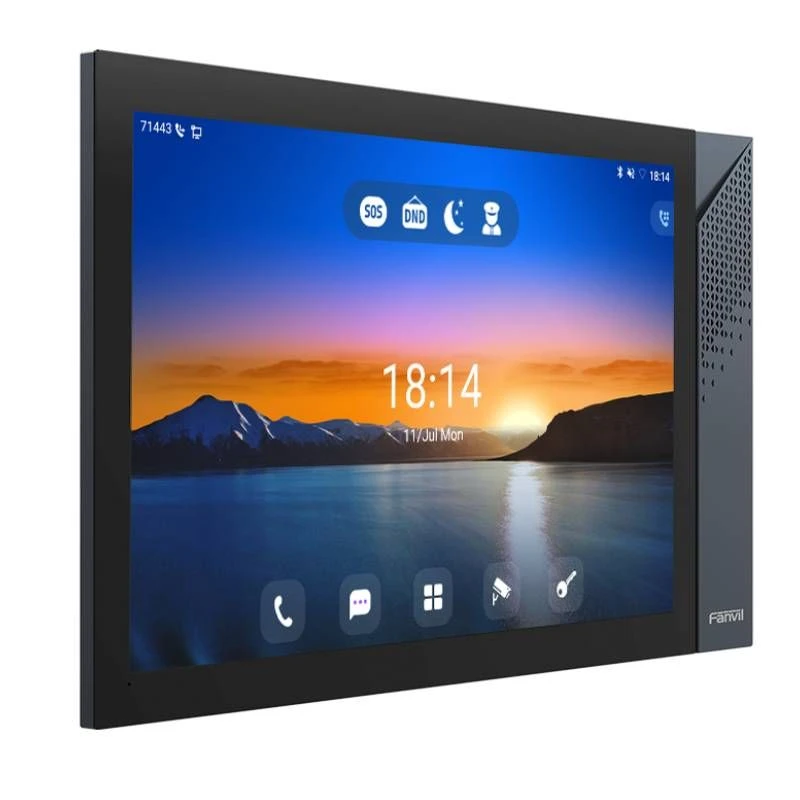

Fanvil I57A

Fanvil i57A

Fanvil i57A: Indoor control of your premises, simplified!

The Fanvil i57A model is an indoor station for monitoring, in real time, movements around your premises. Featuring a 10.1-inch colour touchscreen, it offers an intuitive user interface, for simplified operation for everyone. Based on the Android 9.0 operating system, it perfectly meets the industry application customisation and secondary development needs. With its powerful remote door opening and real-time video monitoring of security devices features, the Fanvil i57A station serves as a management assistant for premises of all kinds: communities, villas or even office buildings.

Technical specifications:

Audiovisual properties:

• 10.1-inch LCD touchscreen
• Video encoding : H.264
• HD Voice: built-in dual 2W speakers
• Integrated AEC technology: acoustic echo cancellation
• Voice activity detection (VAD)/Comfort noise generation (CNG)/Background noise estimation (BNE)
• Audio codecs: narrowband (G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K); wideband (G.722, Opus)

Additional information:

• 2 SIP lines
• Local telephone directory (1000 entries)
• Call log (incoming/outgoing/missed, 1000 entries)
• Operating system: Android 9.0
• RAM/ROM memory: 2GB / 16GB
• 2 keys (power, volume +/-) + interface for TF card (MAX:256G)
• Ports and interfaces: 1x 10-pin cable / 1x 2-pin cable / 1x RJ45 interface / 1x Micro USB interface / 1x TF slot / 1x RS-485 interface / 2x short-circuit output interfaces / 2x relays: MAX DC30V / 2A, AC125V / 0.5A / 8x alarm input interfaces / 1x doorbell input interface
• Wireless connections: Wi-Fi 2.4GHz, 802.11 b/g/n & 5GHz; Bluetooth 5.0
• Power supply: DC12V/1A or PoE
• Housing material: ABS and aluminium alloy
• Installation: wall-mounted
• Product dimensions: 295 x 181 x 24mm
• Manufacturer’s warranty limited to 1 year
