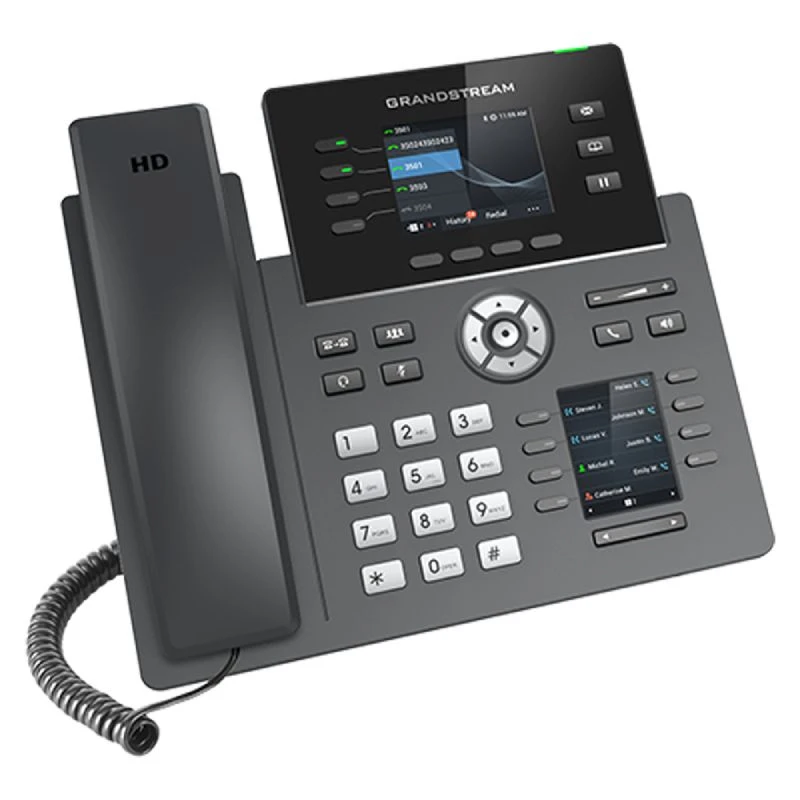

Grandstream GRP2614

4-line Carrier-Grade IP Phone

The GRP2614 is a 4-line carrier-grade IP phone designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including dual LCD screens with 40 virtual multi-purpose keys (VPKs), integrated Wi-Fi, Bluetooth support, dual Gigabit ports, and more. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images, and encrypted data storage. For cloud provisioning and centralized management, the GRP2614 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the needs of busy desktop workers and designed for easy deployment by enterprises, service providers, and other high-volume markets, the GRP2614 offers an easy-to-use and easy-to-deploy voice platform.

Features

Protocol/Standards:

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6

Network Interfaces:

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE

Voice Codecs and Capabilities:

• Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band),G723,iLBC, OPUS, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC

Wi-Fi:

• Yes, integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4GHz & 5GHz)

Graphic:

• 8 inch (320×240) TFT color LCD,2.4 inch (320×240) additional screen

Bluetooth:

• Yes, integrated

Feature Keys

• 4 line keys with up to 4 SIP accounts, 8MPK extension keys with dual-color LED with 2 Left/Right keys, 4 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for:MESSAGE(with LED indicator), phonebook, transfer, conference, hold, headset, mute, send/redial, speakerphone, vol+, vol

Auxiliary Ports:

• RJ9 headset jack (allowing EHS with Plantronics headsets)

Telephony:

• Hold, transfer, forward, 3-way audio conference, call waiting, call log (up to 100

records), downloadable phonebook (XML, up to 500 items) off-hook auto dial, auto answer, flexible dial plan, personalized music ringtones, server redundancy and fail-over, push to talk, LDAP

Security:

• User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot

HD Audio:

• Yes, both on handset and speakerphone with support for wideband audio, HAC supported

QoS:

• Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Auxiliary Ports:

• RJ9 headset jack (allowing EHS with Plantronics headsets)

Multi-language:

• English, Chinese, German, French, Italian, Portuguese, Russian, Spanish, and more

Upgrade/Provisioning:

• Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file

Power & Green Energy Efficiency:

• Universal power adapter included – Input:100-240V ; Output: +12VDC, 1A ;
• Integrated Power-over-Ethernet(802.3af), Max power consumption 3.5W(power adapter) or 4W(PoE)

Physical:

• Unit weight: 950g ;
• Package weight: 1460g
• Dimension: 234mm x 213mm x 82.2mm

Temperature and Humidity Operating Temperature:

• 0ºC to 40ºC; Operating Humidity: 10-60% (non-condensing)

Compliance :

FCC: Part 15 Class B; Part 15 Subpart C, 15.247; Part 15 Subpart E, 15.407; FCC Part 68 HAC

CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301489-1; EN 301489-17; EN 300328; EN 301893; EN 62311

RCM: AS/NZS CISPR32; AS/NZS 61000.3.2; AS/NZS 61000.3.3; AS/NZS 4268; AS/NZS 60950.1; AS/CA S004

IC: ICES-003; CS-03; RSS-247; RSS-102.
