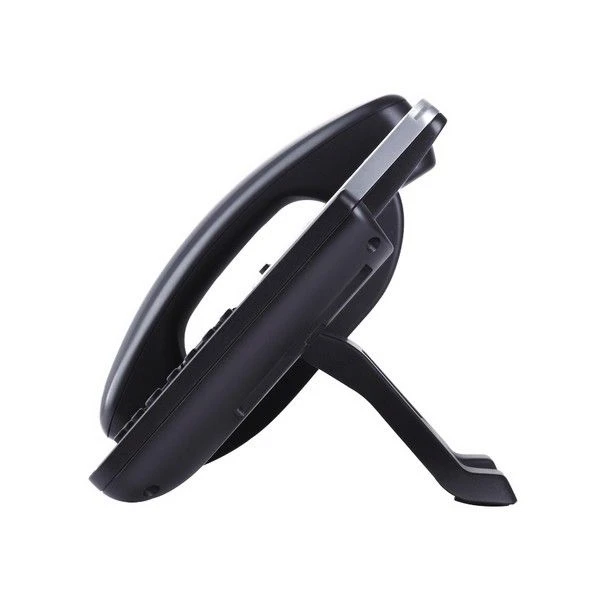

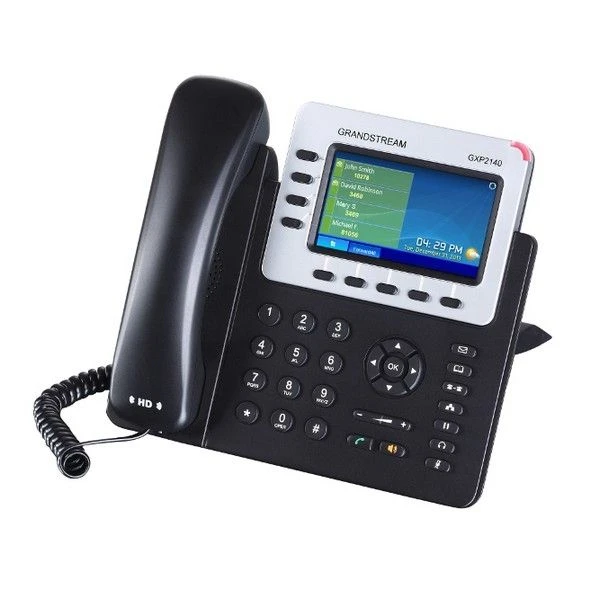

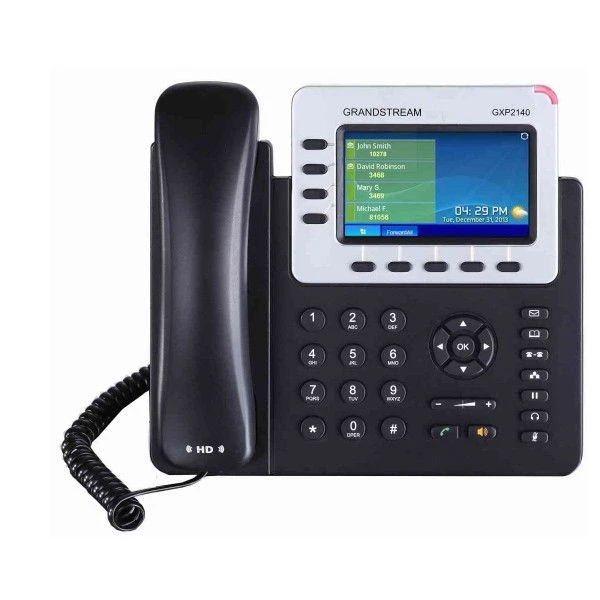

Grandstream GXP2140

Powerful VoIP with excellent performance for your business

The Grandstream GXP2140 is a beautifully-designed professional grade IP phone for up to 4 SIP lines with a large colour display and a wide range of functions.

Advanced phone features

Not only is the GXP2140 easy to use, but its performance is unbeatable. Its 4.3″ TFT colour LCD screen has the look of a mobile phone screen and makes browsing the feature rich menu a breeze. With built-in Bluetooth, users can sync their mobile contacts and calendar and work hands free with a Bluetooth headset. It even allows users to transfer calls between their GXP2140 and mobile phone. It also supports an EHS cable, for users to connect a traditional cordless headset.

Crystal-clear calls

With dual Gigabit network ports and built-in PoE, network speeds are maximised up to 1000mb per second, ensuring that calls are as clear as possible and pages load as quickly as possible, while HD audio ensures crystal clear call quality, both on the handset and speakerphone.

Easy thus complete

The GXP2140 IP Phone is interoperable with all major SIP providers, so compatibility is no problem. Other features of this advanced phone include 5-way conferencing, state-of-the-art encryption and the option of connecting up to 4 GXP2200 extension modules to offer quick and easy access to up tp 160 speed dials and monitor the call status of extensions.

Features:

• Protocols: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6
• Integrated Power-over-Ethernet (802.3af)
• Bluetooth V2.1
• Network interface: dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
• RJ9 headset jack
• USB, extension module port
• Display: 4.3 inch (480×272) TFT color LCD
• 4 line keys with up to 4 SIP accounts, 5 programmable context sensitive softkeys, 5 navigation/menu keys,
• 11 dedicated function keys for: MESSAGE (with LED indicator), Phonebook, transfer, conference, hold, headset, mute, send/redial, speakerphone
• Volume +/-
• Support for G.729A/B, G.711μ/a-law, G.726, G.722 (wide-band), in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
• Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)
• Bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting,
• Call log (up to 500 records)
• Customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
• Weather, currency, news
• GMI available for advanced custom application development (pending)
• HD Audio on handset and speakerphone
• Can power up to 4 GXP2200EXT modules which features a 128×384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit.
• 2 angle positions on base stand
• Wall mountable
• Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
• Languages: English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish
• Temperature: 0 ~ 40ºC (32 ~ 104ºF ), 10 ~ 90% (non-condensing)
• Compliance: FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN 60950-1, EN62479, AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter)
• Security: User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control
• Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A;
• Max power consumption: 6W (without GXP2200EXT), 10W(with 4 cascaded GXP2200EXTs )
• Dimensions: 228mm (W) x 206mm (L) x 46.5mm (H);
• Unit weight: 0.98kg; Package weight: 1.55kg
