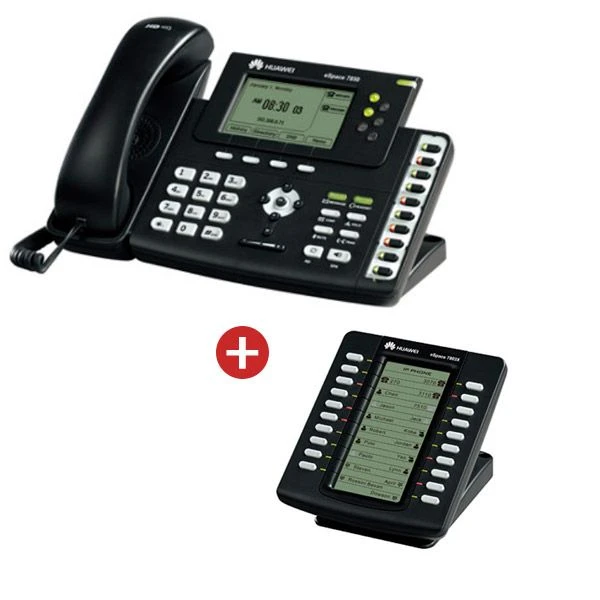

Huawei ESpace 7870 + Extension Module

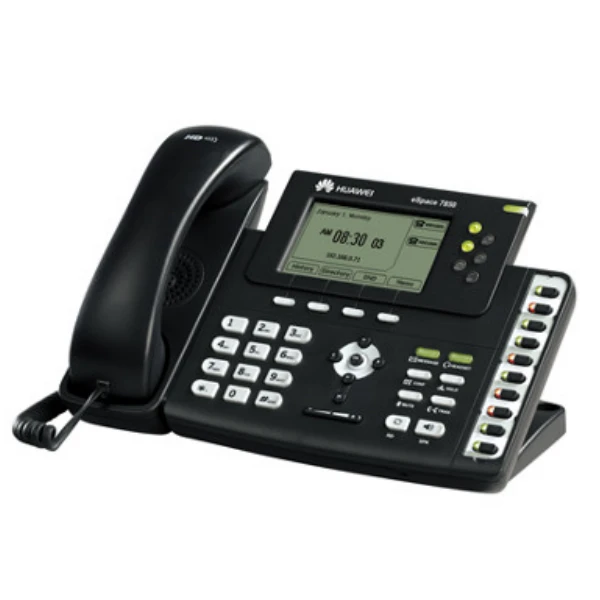

The Huawei eSpace 7870 is a 6-line desktop phone using Session Initiation Protocol (SIP). The Huawei’s large 4.3″ LCD screen with Liquid Crystal Display (LCD) makes this telephone both user-friendly and easy-to-use.

The TI-TITAN chipset within the Huawei eSpace 7870 uses TI voice engine technology with the help of a high quality handle, speaker and handset in order to provide superior voice clarity.

The various different function keys offer a flexible user experience such as line keys, 10 programmable keys, 6 navigation keys and 4 soft keys and users will benefit from great features like linkage with eSpace Desktop and PBX functions.

The Huawei 7803 Extension Module is purpose built for the Huawei eSpace series of IP telephones (7830, 7850 and 7870) that provides a wide range of functions to enhance your phone system such as speed dialing, PBX services and 38 programmable keys.

Features

• Large 4.3″ LCD screen (480×272 pixels)
• 6-lines
• SIP 2.0
• PoE
• 10 programmable keys + 6 navigation keys + 4 soft keys
• 2 Ethernet ports, RJ45 – 10/100 T
• RJ9 connection for headphones
• High voice quality thanks to the TI-TITAN chipset
• Up to 1000 saved entries can be stored in the contact list
• Line keys and function keys improve user experience
• Automatic configuration and updates
• External charging and PoE
• Signaling encryption TLS / Voice encryption SRTP / Web access encryption HTTPS
• Power consumption 2.6 W
• Dimensions: 273x200x158mm
• Weight: 1.05kg
• Can be wall mounted or place on a desk
• Can be configured in various languages: English, Spanish, French, Portugese, Italian, German Polish, Russian and Turkish

• Compatible with eSpace 7830, 7850 and 7870
• 150×320 pixel display with LCD and 16 grey-scale
• 20 buttons with double-colour LED lights to distinguish contact’s line status
• 38 programmable keys
• Distinguished function icons
• Designated pickup, group pickup, call park, conference, call hold, call transfer, call forward, voice mailbox, DND
• Redial, call back, speed dialing, XML browser, group listening, line sharing
• 2 function pages
• Supports a maximum of 2 eSpace 7803Xs cascaded to one IP phone
• Dimensions: 100x145x182mm
• Weight: 0.29kg
• Power consumption: 1W
