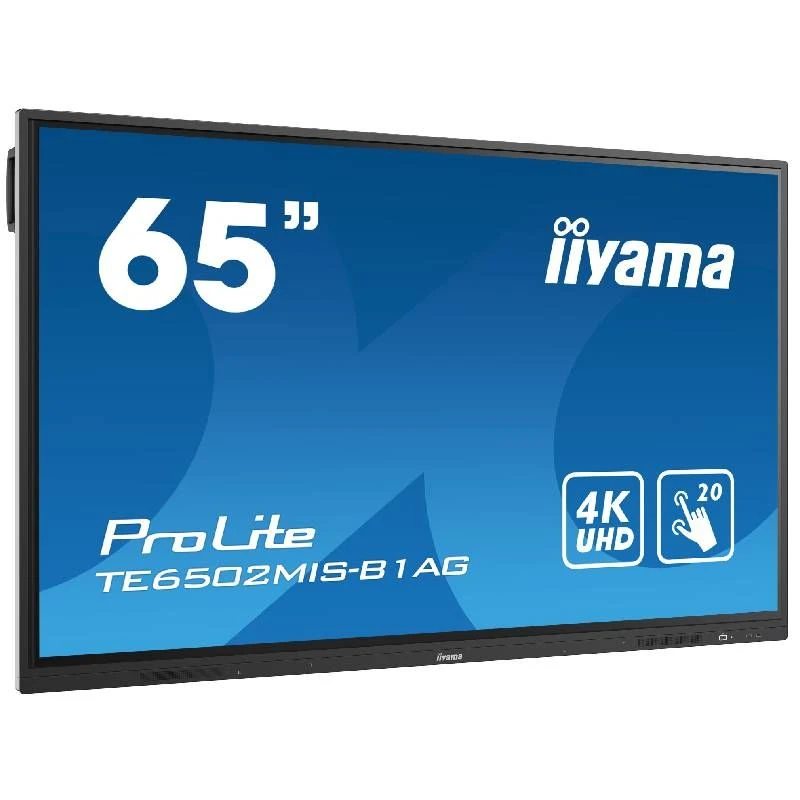

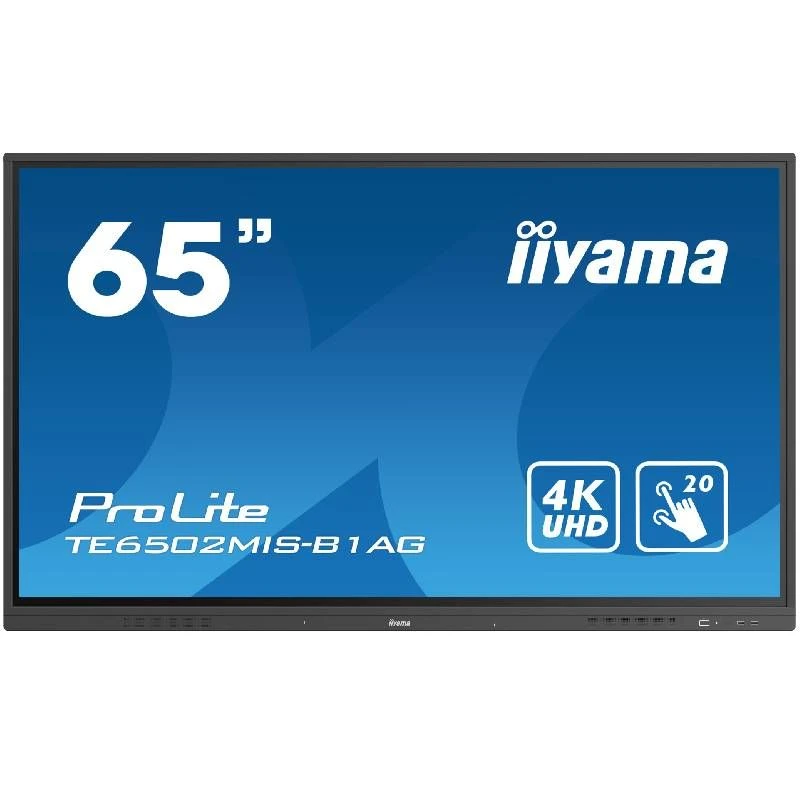

Iiyama 65” ProLite TE6502MIS 02 Touch Screen Monitor

Iiyama ProLite TE6502MIS-B1AG: The next-generation touch screen

The new ProLite TE6502MIS-B1AG is the second in a series of iiyama touchscreens and is the interactive model for businesses and education professionals. With the advent of hybrid communication, this 65″ screen offers the ability to conduct training sessions and remote meetings as productively as in-person. Designed to last a lifetime, the screen incorporates 4mm thick glass and a thin metal frame to give it a sleek look and provide superior resistance to wear and tear and repetitive handling.

The new 65″ professional display supports Bluetooth 2.1/3.0/4.2 and 5.0 connections and is wirelessly connected using the included OWM002 module. With a complete connectivity system, this password-lockable model gives you the opportunity to have an all-in-one solution for remote collaboration. In fact, you can turn your interactive screen into a video conferencing module simply by attaching a USB camera to the included bracket and plugging it into the USB port provided, allowing you to merge video collaboration with remote content sharing.

Take collaboration and distance learning to the next level

Enabling document and media sharing, this new 65″ display with its VA LCD design delivers stunning images. While its 4K UHD display resolution offers unparalleled image sharpness, the anti-reflective coating applied to it reduces ambient reflection when needed, without compromising image clarity and sharpness. Use the large 1429 x 804mm work surface and 20-point infrared touch technology to annotate your content in real-time with unparalleled accuracy, with a stylus, finger, and glove support for touch editing.

Turn your training and business meetings into interactive sessions with the new iiyama TE6502MIS-B1AG. Incorporating the Android OS (9.0) iiWare 8.0 software, this model offers 7 different applications for collaboration and content sharing. While the web browser allows you to download media directly from your screen, the note module is a digital whiteboard for direct annotation of your documents. Use the file manager and the available cloud to store all your media, with the ScreenSharePro feature supporting Miracast, AirPlay, and Chromecast to easily stream content from your device. Use the EShare module to wirelessly connect your Windows, iOS, and Android devices and share your content remotely in a simple, fast, and seamless way.

Technical specifications:

Screen and display:

• 65″ (163.9cm) professional touchscreen
• Slim landscape orientation frame only
• Working area: 1429 x 804mm
• VA LCD matrix with anti-glare coating and 25% opacity
• Glass thickness and hardness: 4mm and 7H
• Native 4K UHD resolution of 3840 x 2160 pixels
• Brightness: 350cd/m2
• Contrast and response time: 5000:1 at 6.5ms
• Horizontal frequency: 30-80Hz
• Viewing angle: 178°/178° horizontal and vertical; 89°/89° right and left; 89°/89° front and rear
• Two built-in 12W speakers
• 20-point infrared touch technology

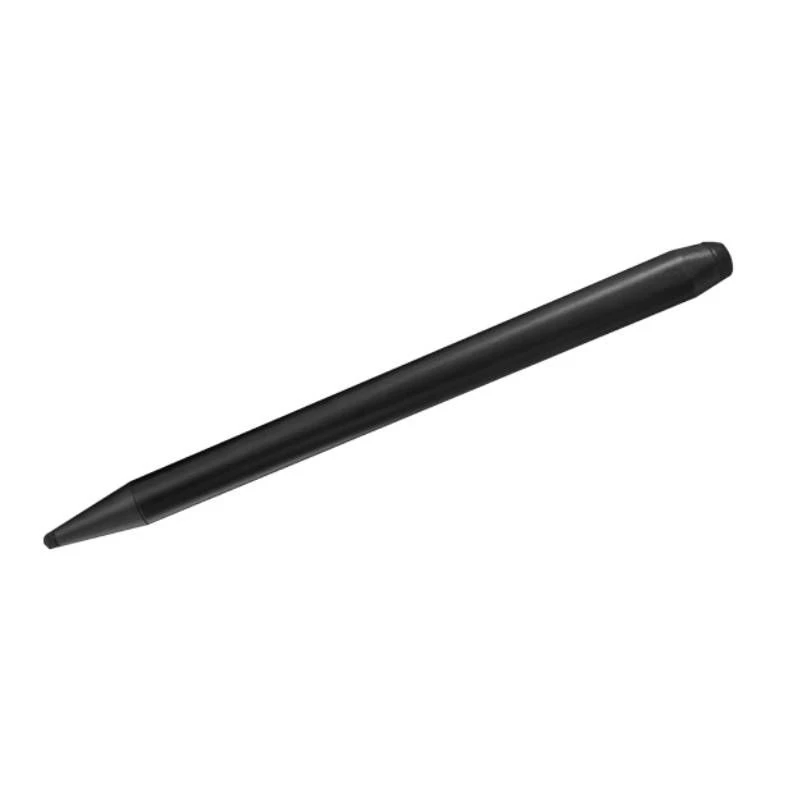

• Stylus, glove, and finger supported for on-screen annotation
• Touch accuracy: +2mm
• Media player function supported
• Adjustable settings: common settings; audio settings; screen settings; display settings; positioning setting; settings

Additional information :

• Quad Core A54 CPU / Mali G31 MP2 GPU display
• Integrated software: iiWare 8.0 (Android OS 9.0) with Note, web browser, file manager, cloud, WPS office, ScreenSharePro, and EShare (wireless connection to Windows, iOS, and Android devices)
• Storage: 2GB RAM + 16GB internal memory
• Control buttons: power, light sensor, USB connector
• Internal power supply AC 180-240V, 50/60Hz
• Power consumption: 175W in normal use, 0.5 in standby, and 0.3W off
• Max. operating time in discontinuous use: 16/7
• Ports and Interfaces: 1 VGA input; 2 HDMI inputs; 1 Mini-Jack audio input; 1 RS-232C control input; 1 RJ45 (LAN) input; 1 Mini-Jack audio output; 4 USB ports (2 front and 2 right); 2 RJ45 PC and Android auto switches
• Wireless connection: WiFi (dual bandwidth OWM002 module included); Bluetooth 2.1/3.0/4.2/5.0 support
• Optional OPS PC slot (slot available)

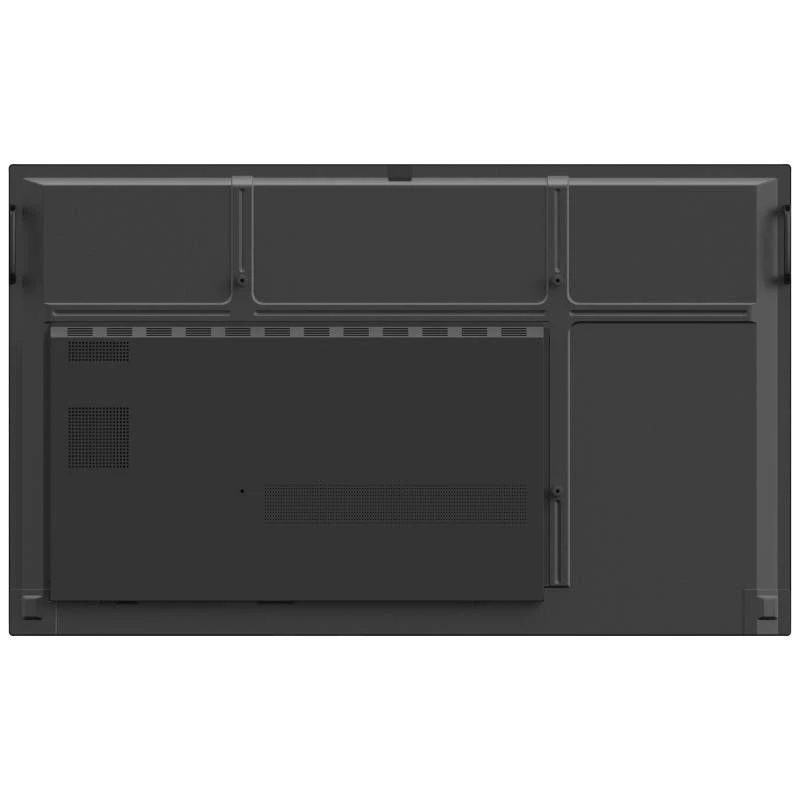

• VESA mounting: 600 x 400mm
• Product dimensions (W x H x D): 1489 x 897 x 87mm
• Display weight: 38.5kgs
• Operating temperature: 0° to 40°C
• Extended manufacturer’s warranty to 5 years
