Iiyama 75″ ProLite LH7542UHS-B3 Display

iiyama ProLite LH7542UHS-B3: Next generation digital signage in 4K

The new ProLite LH7542UHS-B3 is part of iiyama’s 42 series of display solutions and is ideal for corporate, educational, and commercial use. This 75″ monitor allows you to display content of all kinds in a smooth dynamic manner, with its matte black design and slim frame adding a touch of elegance to your display environment. The new 75″ screen is fully equipped with a complete connectivity system, allowing companies to set up complete meeting rooms by adding additional audiovisual modules to the various sockets provided, while the remote control supplied allows for easy adjustment of the screen’s audiovisual settings and parameters.

This high-performance professional monitor is 18:7 capable and allows presentations, videos, or any other type of content stored on a USB stick or directly on the screen’s internal memory. This IPS matrix model offers an optimal display of your content from all angles, with the 4K UHD resolution offered by this screen providing incredibly fine and sharp images of your content. Ideal for commercial use with FailOver automatic signal detection on input sources, this new monitor is also suitable for corporate video conferencing, with PIP and PBP options for multi-source content management and two 10W speakers for remote communications.

The new monitor can be mounted horizontally or vertically and, using the EShare feature, allows you to stream content directly from your device using a wireless connection. Use the included iiSignage software to create, publish and manage your own dynamic content on any 42 UHS Series monitor. From a desktop PC on the same network, use rich content to quickly create compelling commercials, and schedule content across multiple monitors to meet your customers’ expectations, especially in retail.





Technical specifications :

Screen and display :

• 75″ (189m) professional thin-frame display

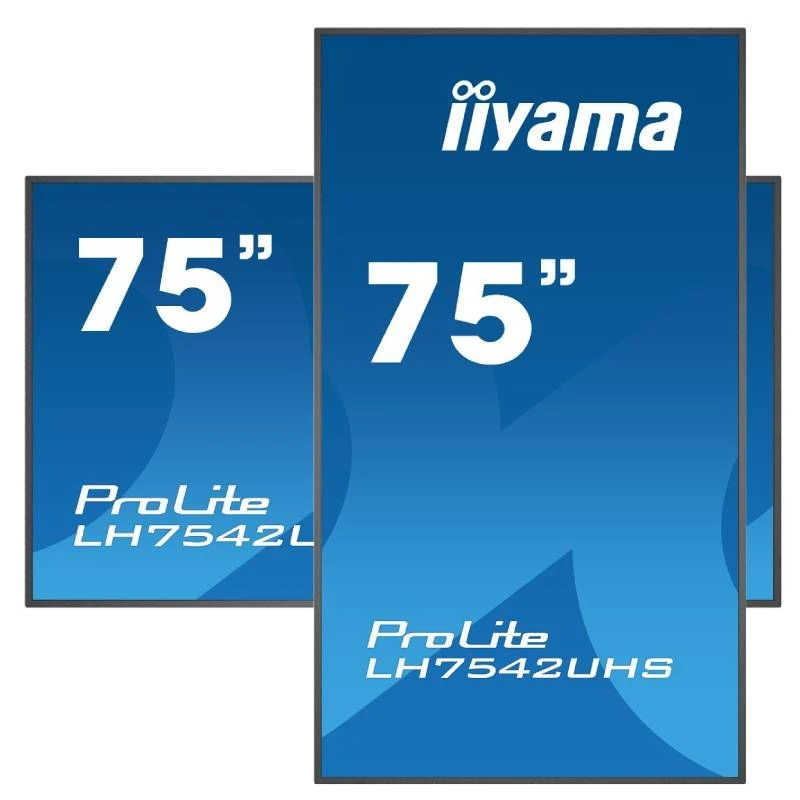

• Portrait and landscape orientation frame
• Working area: 1649.6 x 927.9mm
• IPS matrix wia th matte finish
• Native 4K UHD resolution of 3840 x 2160 pixels
• Brightness: 500cd/m2
• Integrated ambient light sensor
• Built-in anti-retention system
• PIP and PBP: ideal for video conferencing and multi-source content management
• Contrast and response time: 1400: 1 to 8ms
• Horizontal frequency: 30-80Hz
• Viewing angle: 178°/178° horizontal and vertical; 89°/89° right and left; 89°/89° front and rear
• Two built-in 10W speakers
• Media player function supported
• FailOver function: signal detection on input sources for display
• Adjustable settings: picture; screen; sound; configuration 1; configuration 2; advanced option; Android settings

Additional information :

• Monitor for viewing presentations, videos, and all types of content on a USB stick or the internal memory
• Built-in software: Android OS 8.0
• iiSignage: Free application for creating, publishing, and managing content on any UHS Series 40 monitor
• EShare: Wireless connection to Windows, iOS, and Android devices
• Smart Display module (optional): Smart plug-in module with excellent performance
• Storage: 3GB RAM + 32GB internal memory
• Control buttons: power, mute; volume up/down; menu
• Internal power supply AC 100-240V, 50/60Hz
• Power consumption: 255W in normal use; 0.5W in standby and off
• Maximum continuous operating time: 18/7
• Ports and interfaces: 1 VGA input; 3 HDMI inputs; 1 DVI input; 1 DisplayPort input; 1 Mini-Jack audio input; 1 RS-232C control input; 1 RJ45 (LAN) input; 1 IR input; 1 DisplayPort output; 1 RCA audio output; 1 RS-232c control output; 1
• IR output; 2 USB ports
• VESA mounting: 600 x 400m
• Product dimensions (W x H x D):  1683.5 x 961.7 x 82.9mm
• Display weight: 36.8kgs
• Operating temperature: 0° to 40°C
• Extended manufacturer’s warranty to 5 years
