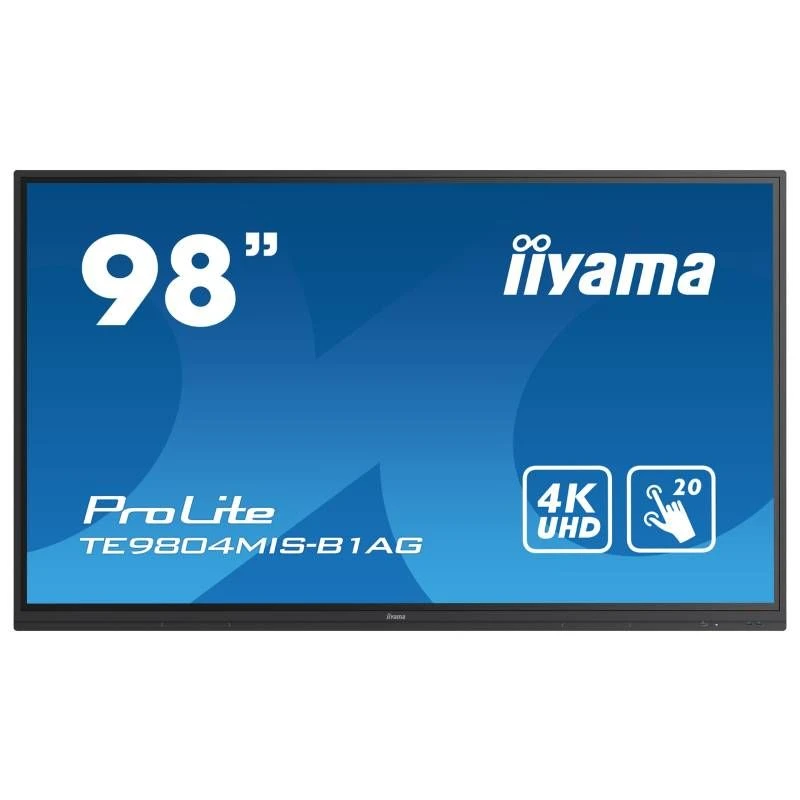

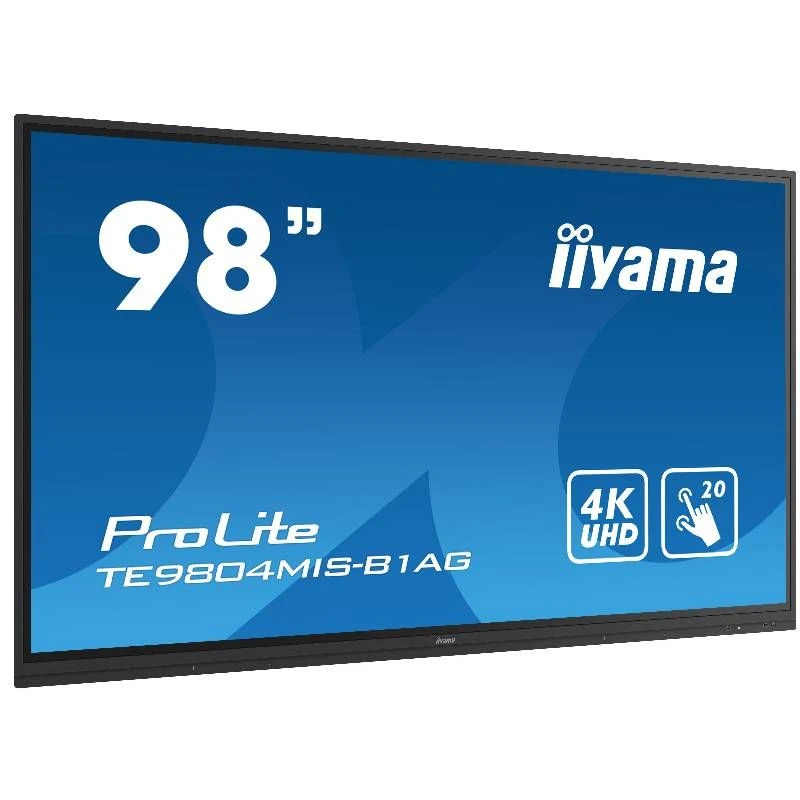

Iiyama 98” ProLite TE9804MIS-B1AG Interactive Display

Iiyama ProLite TE9804MIS-B1AG: A smooth and accurate digital display

The new ProLite TE9804MIS-B1AG is the fourth in the iiyama series of touchscreens and is the interactive model for business and education professionals. With hybrid communication becoming increasingly popular, this 98″ screen offers the ability to conduct training sessions and meetings remotely as productively as in person. Designed to last a lifetime, the screen features 3mm thick glass and a slim metal frame for a sleek look, providing a superior level of resistance to wear and tear and repetitive handling.

The new 98″ professional display is Wi-Fi enabled, including the included OWM001 module, and supports Bluetooth 2.1/3.0/4.2 and 5.0 connections. With a complete connectivity system, this password-lockable model gives you the opportunity to have an all-in-one solution for remote collaboration. In fact, you can turn your interactive screen into a video conferencing module simply by attaching a USB camera to the included bracket and plugging it into the USB port provided, allowing you to merge video collaboration with remote content sharing.

The new era of collaboration and distance learning

Enabling the sharing of documents and multimedia content, the new 98″ IPS LCD delivers exceptionally sharp images. While its 4K UHD display resolution offers unparalleled image sharpness, the anti-reflective coating applied to the screen prevents image reflection problems without affecting image clarity and sharpness. Use the large 2162 x 1217mm work surface and the new 20-point PureTouch-IR touch technology to annotate content in real-time, offering unprecedented accuracy, fluidity and speed when editing documents with a stylus, finger, or glove.

Turn your training and business meetings into interactive sessions with the new iiyama TE9804MIS-B1AG. Incorporating the Android OS (9.0) iiWare 9.0 software, this model offers 7 different applications for collaboration and content sharing. While the web browser allows you to download media directly from your screen, the note module is a digital whiteboard for direct annotation of your documents. Use the file manager and the available cloud to store all your media, with the ScreenSharePro feature supporting Miracast, AirPlay, and Chromecast to easily stream content from your device. Use the EShare module to wirelessly connect your Windows, iOS, and Android devices and share your content remotely in a simple, fast, and seamless way.





Technical specifications :

Screen and display :

• 98″ (247.7cm) professional touchscreen
• Thin frame with landscape orientation only
• Working area: 1895 x 1066mm
• IPS LCD matrix with anti-reflective coating and 0 gap
• Glass thickness and hardness: 3mm and 7H
• Native 4K UHD resolution of 3840 x 2160 pixels
• Brightness: 350cd/m2
• Contrast and response time: 1200:1 at 8ms
• Horizontal frequency: 30-80Hz
• Viewing angle: 178°/178° horizontal and vertical; 89°/89° right and left; 89°/89° front and rear
• Two built-in 16W speakers
• PureTouch-IR touch technology with 20 touch points

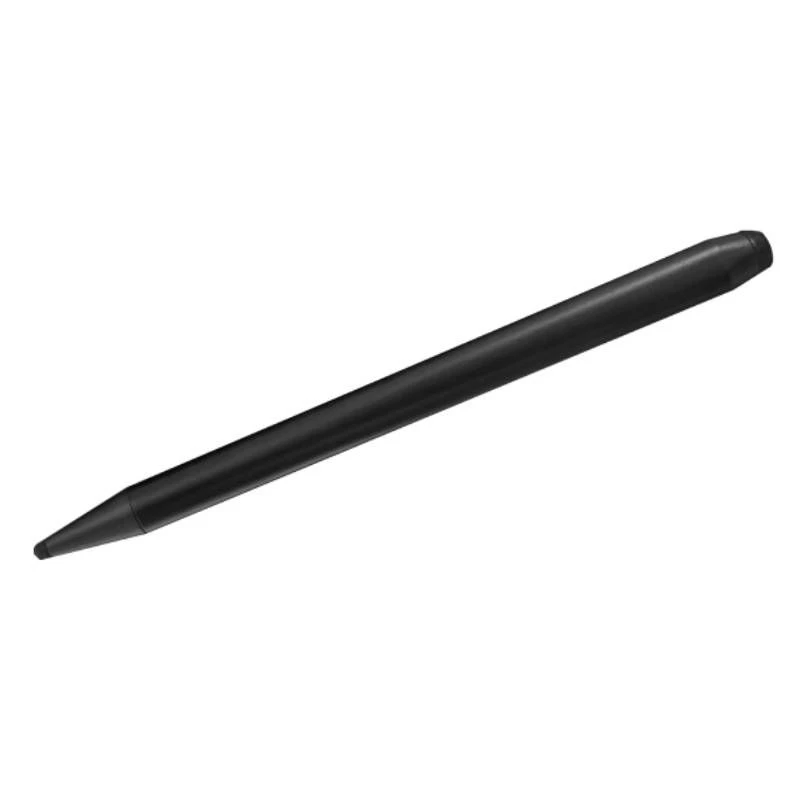

• Stylus, glove, and finger supported for on-screen annotation
• Touch accuracy: +1mm
• Supported media player function
• Adjustable settings: common settings; audio settings; screen settings; display settings; positioning setting; parameters

Additional information :

• Quad Core A73 CPU / Mali G52 GPU display
• Integrated software: iiWare 9.0 (Android OS 9.0) with Note, web browser, file manager, cloud, WPS office, ScreenSharePro and EShare (wireless connection to Windows, iOS and Android devices)
• Storage: 4GB RAM + 32GB internal memory
• Control buttons: power, power indicator, remote sensor, light sensor, USB connector
• Internal power supply AC 100-240V, 50/60Hz
• Power consumption: 222W in normal use, 0.5W in standby and off
• Maximum continuous operation time: 24/7
• Ports and Interfaces: 1 VGA input; 3 HDMI inputs; 1 USB-C input; 1 Mini-Jack audio input; 1 RS-232C control input; 1 RJ45 (LAN) input; 1 Mini-Jack audio output; 1 S/PDIF (Optical) audio output; 5 USB ports (2 front, 2 right + 1 USB-C); 2 RJ45 PC and Android auto switches
• Wireless connection: WiFi (dual bandwidth OWM001 module included); Bluetooth 2.1/3.0/4.2/5.0 support
• Optional PC slot: Unlock control, security and reliability of the entire Microsoft ecosystem

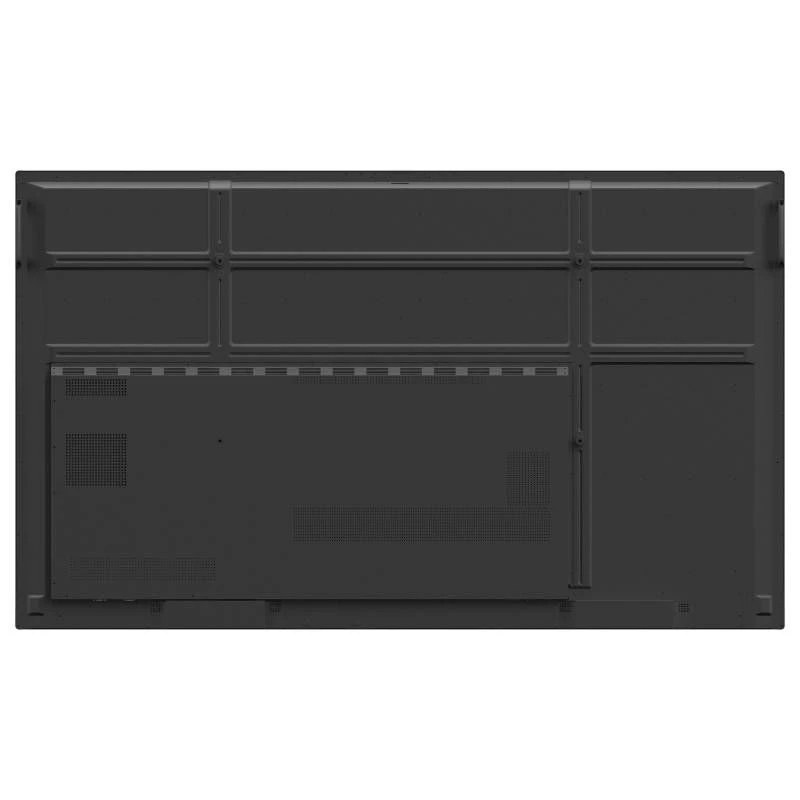

• VESA mount: 800 x 600mm
• Product dimensions (W x H x D): 2244.5 x 1323 x 90.5mm
• Display weight: 103.5kgs
• Operating temperature: 0° to 40°C
• Extended manufacturer’s warranty to 5 years
