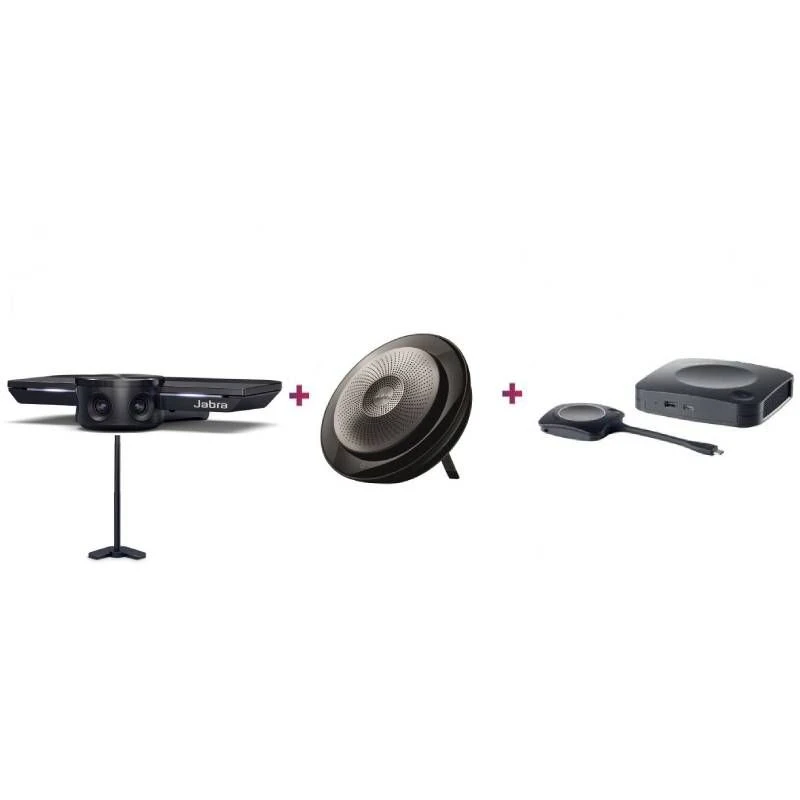

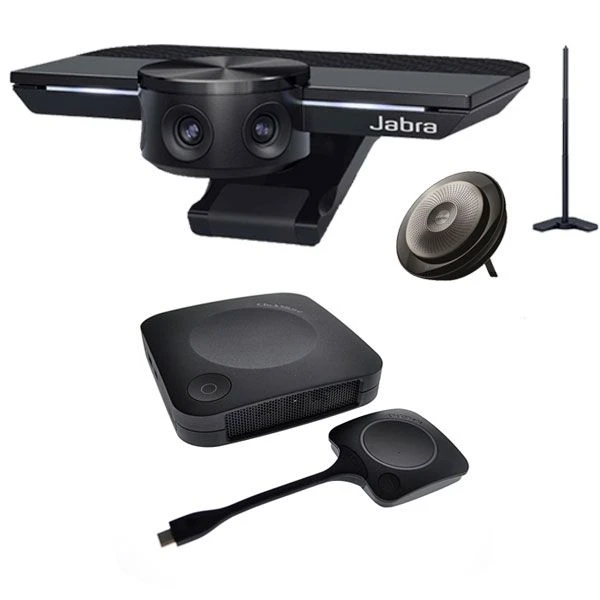

Jabra PanaCast + Jabra Speak 710M + Barco CX-20



The ideal system for small meetings!

Revolutionizing videoconferencing codes, this new audiovisual pack includes a Jabra PanaCast camera , a Jabra Speak 710M speakerphone and a Barco ClickShare CX-20 module . Practical and discreet for carrying out effective and natural virtual meetings , this solution is particularly suitable for small workspaces such as offices or huddle rooms .

Installing a product has never been easier. Thanks to Plug & Play , simply connect the Jabra PanaCast camera to your computer via a USB-C port to be able to instantly launch your virtual meetings. Plug and play , the Jabra Speak 710 MS connects in seconds to the device of your choice (PC/Mac, smartphone or tablet), whether via Bluetooth or USB. Its use is intuitive and does not require any particular technical knowledge.

Installing your wireless sharing module will be just as easy. All you have to do is connect your Barco base to your presentation screen and connect your streaming button to your laptop via USB . Once you have done this, you can, via the ClickShare button, stream content in real time and in high definition , all thanks to a simple click.



Authentic audiovisual properties

Take part in an extraordinary virtual experience thanks to the PanaCast’s three 4K resolution cameras , which give you a 180° panoramic view so that no one is left out of the meeting. Plus, the built-in Smart Zoom detects how many people are in the room and adjusts the camera’s viewing angle accordingly so everyone is in the frame. If some participants decide to join or leave the meeting during the meeting, the camera adapts and automatically defines a new field of view . Complete video conferencing solution, this Jabra PanaCast has two integrated microphonesso that the exchanges between you and your interlocutors are clear and distinct.

A real revolution in the world of presentation, this ClickShare CX-20 offered by Barco will allow you to broadcast content in real time and in high definition . This dynamic display will allow your different meetings to be more interactive and will largely promote the improvement of exchanges between the different parties. Barco presents, through its ClickShare CX-20, a powerful and above all versatile product that dethrones all the others. Compatible with many operating systems, you can also use it with your laptop , your Mac or even with yoursmartphone using the ClickShare app . It also supports many softphones such as Zoom , Teams or even Skype , so you can use it with all your devices , without any particular difficulty.

Technical characteristics :

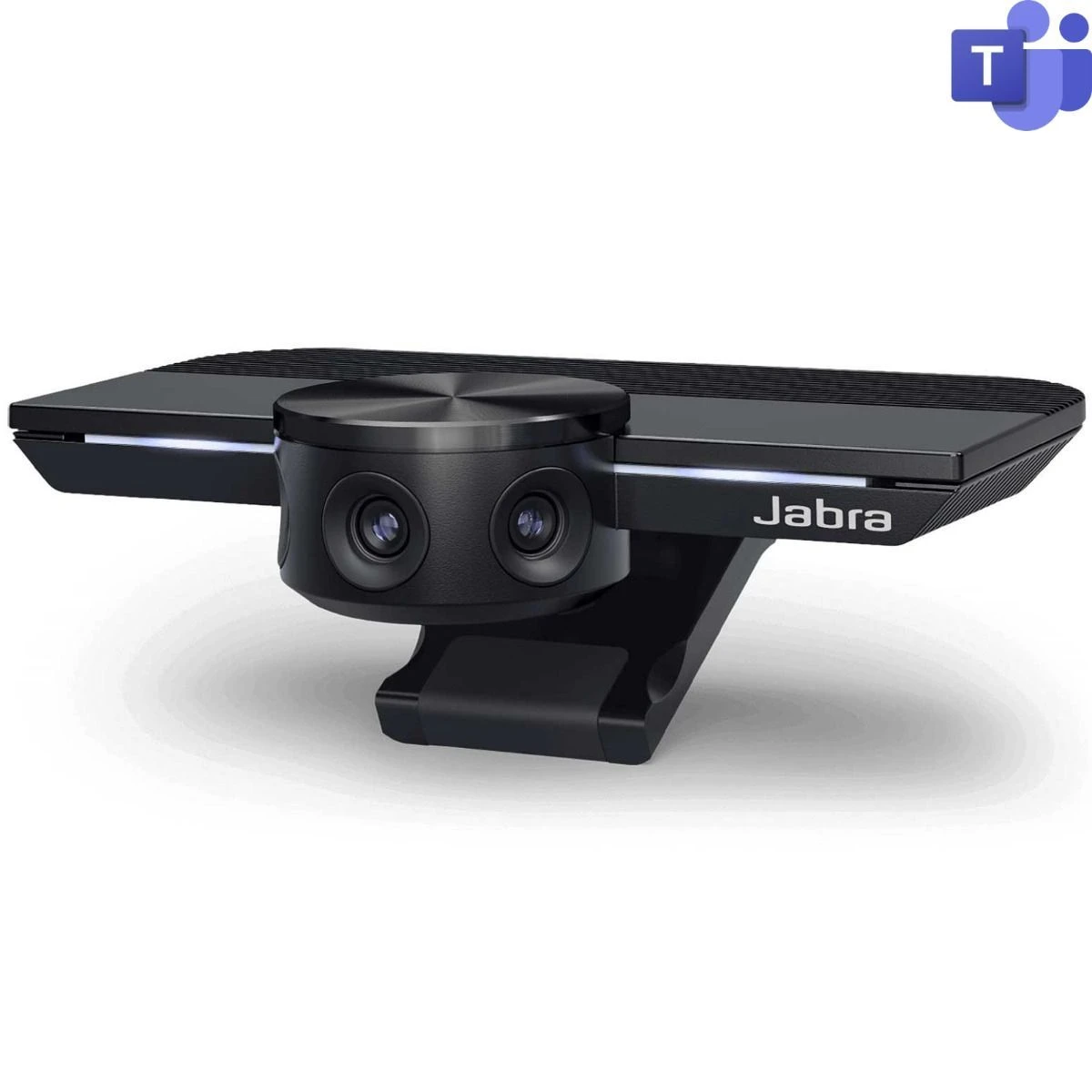

Jabra PanaCast:

• Camera designed for small huddle rooms
• Electronic PTZ device with 3 13MP cameras
• 4K widescreen resolution: 3840 x 1080p
• Field of view: 180° horizontal and 54° vertical
• Smart Zoom: Detects people’s location to put everyone in frame
• Automatic control of brightness, contrast, saturation, sharpness and white balance
• Two built-in microphones for intelligible conversations
• Quick and easy connection: Plug & Play USB
• Microsoft Teams certified product and compatible with all softphones
• System compatibility: Windows 7 or later, MacOS X 10.9 or later, Chrome OS, …
• Remotely controllable camera via Jabra Direct and Xpress
• Whiteboard support via the Jabra Whiteboard app
• Camera dimensions: 102 x 67 x 20mm
• Product weight: 100g
• Device guaranteed for 2 years

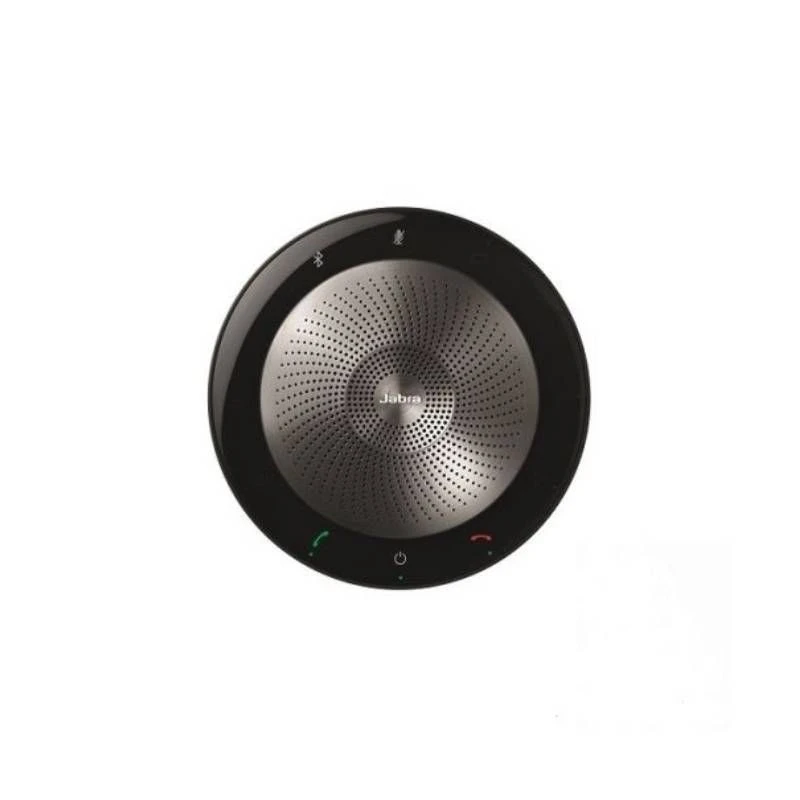

Jabra Speak 710M:

• Conference speakerphone for PC, Mac, tablet and mobile
• Ideal for offices and small rooms (up to 4 people)
• HD sound quality: omnidirectional microphone with 360° coverage
• Features: Bluetooth pairing, call management, volume adjustment, mute/unmute function, battery status, “smart” button,…
• Autonomy: 15 hours in conversation and more than 480 days in standby
• Charging time: 3 hours for a full charge
• Wireless range: up to 30 meters
• Connectivity: USB + Bluetooth
• Possibility to pair 2 Jabra Speak 710 together
• Microsoft Skype for Business Certified
• Vertical support included to adjust the inclination of the speakerphone
• Product easy to install and use: Plug & Play
• Speakerphone dimensions: 131mm in diameter, 38mm in height
• Product weight: 296g
• Device guaranteed for 2 years

Barco CX-20:

• Wireless content delivery system
• Sharing type: local vision, sharing only the content on the room screen
• 4K UHD video resolution 3840 x 2160px
• Frequency range: 2.4 GHz and 5 GHz (DFS channels supported in some countries)
• Sound level: Max. 25 dBA at 0-30°C and Max. 30dBA at 30-40°C
• Range of up to 30 meters between the share button and the base
• Secured device thanks to the Kensington anti-theft system
• Power supply: standard 110/220 V AC
• Audio outputs: USB, HDMI
• Connectivity: 1 USB-A port; 1 USB-C port; 1 Gbit Ethernet LAN port
• Network connection: LAN and WiFi
• Native protocols: Airplay, Google Cast, Miracast
• Certifications: FCC / CE
• Device compatible with all video conferencing solutions
• Operating systems: Windows 8/8.1/10 + MacOS 10.13 and later
• Possible compatibility with Android and IOS via the ClickShare application
• Dimensions of the base: 34 x 135 x 135mm
• Base weight: 900g
• Warranty: 1 year
