Konftel C50800 Hybrid + Barco CX-30

Virtual collaboration made easy!

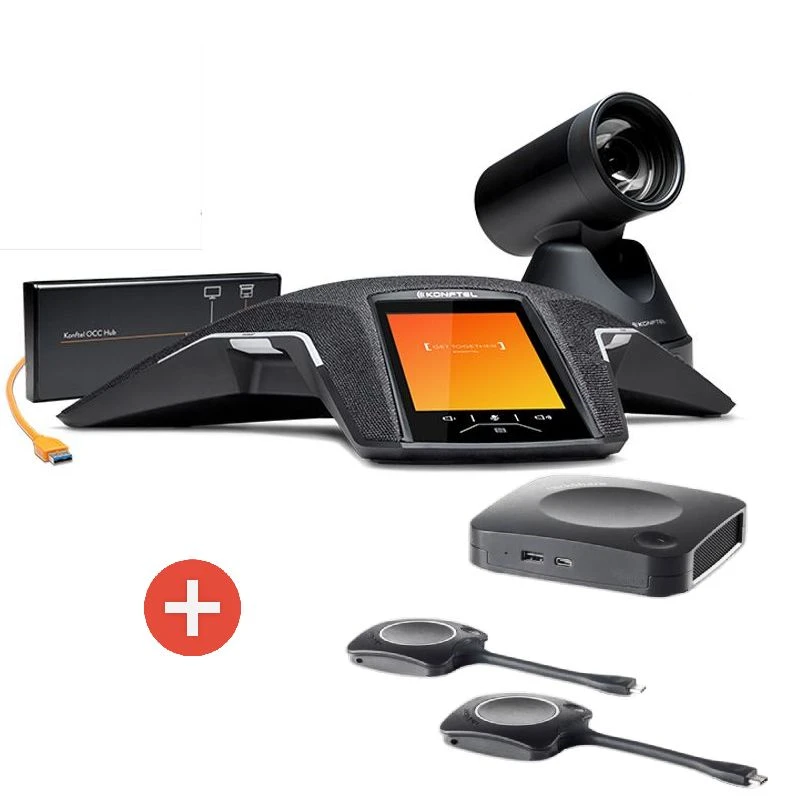

Designed to revolutionize the world of small group videoconferencing as we know it, this system includes a Konftel C50800 Hybrid videoconferencing package as well as a Barco ClickShare CX-30 . Suitable for medium- sized spaces , it is a combination of products with intelligent technologies that will allow you to carry out virtual conferences so naturally that you will forget the distance between the interlocutors.

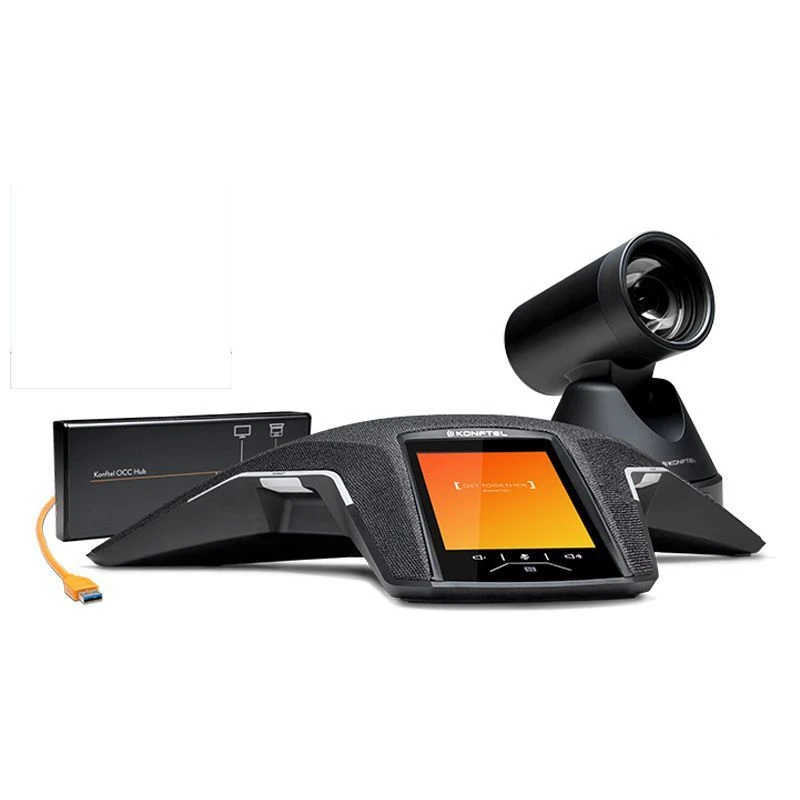

Installing the Konftel C50800 Hybrid , a Plug & Play solution , does not require you to be a computer expert, quite the contrary. It is necessary to connect , via USB , your Konftel Cam50 camera and your Konftel 800 conference phone to the hub included in this pack, and to connect , via HDMI , your presentation screen to the same hub so that your meeting room is installed. From then on, a simple connection of the hub to your PC will be necessary to instantly launch a virtual conference.

Simply connect the ClickShare button to your PC or use Wifi through your mobile device and the Barco system connects in seconds. You have two buttons with the CX 30 system, to share content via multiple devices simultaneously . Once the CX 30 module is connected, simply press the dedicated USB button to start collaborating . Forget about cables, pre-installation and delaying your meetings due to technical issues.



Audiovisual properties as authentic as your interactions

The Konftel Cam50 camera allows you to benefit from an extraordinary visual experience. Its Full HD 1080p resolution and autofocus help deliver incredibly sharp images, making you always look your best. Pan and tilt functions , coupled with the powerful 12x optical zoom , let you juggle between wide and participant- centric shots to energize your virtual meetings. The wide field of visionEasily includes all participants in the frame, so that no one is left out of the ongoing exchanges.

The Konftel 800 conference phone includes a 360° omnidirectional microphone to capture and transmit in high definition the words of each participant, regardless of their place in the room. The loudspeakers offer an extraordinary voice output , for an unprecedented feeling of closeness during virtual exchanges. Omnisound technology , on the other hand, is a smart feature that automatically cancels echo and effectively attenuates noise pollution , so that only the voices of speakers are intelligible to everyone.

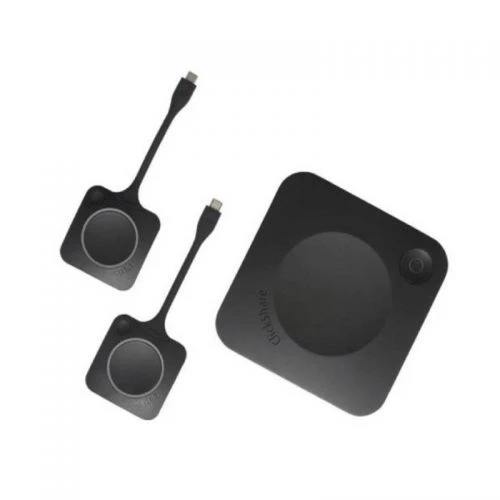

With the Barco ClickShare CX 30 you can share your files, presentations and all the documents you need for your meeting by controlling your videoconference from the HUB CX 30. The system is compatible with all wireless meeting equipment . Cloud file management is also available. The system can connect to all your devices , be it a PC, a Mac or a smartphone. It is compatible with Zoom, Teams, Skype, BlueJeans, as well as with all other video conferencing software.

Technical characteristics :

Konftel C50800 Hybrid:

• Full-Duplex HD Conference Phone
• Omnidirectional microphone with 360° pickup
• Coverage of 30m2 (12 people maximum)
• Omnisound technology: automatic echo cancellation and noise reduction
• Scalable solution: possibility to add 2 extension microphones to increase sound coverage
• LCD touch screen with color display
• 240 x 320 pixel resolution
• Manage audio settings and call features directly through the touchscreen
• 220mAh Li-Ion battery: up to 9 hours talk time
• NFC technology: simplified pairing and connection
• Connectivity: USB; RJ11; 3.5mm jack and Bluetooth
• Full HD 1080p resolution camera
• Streaming at up to 60 frames per second
• Powerful 12x optical zoom
• PTZ: 170° horizontal and 60° vertical field of view
• Auto focus
• Viewing angle between 72.5 and 6.9°
• Ports and interfaces: 1 USB-B 3.0 port
• OS Required: Windows 7/8/10; Mac OS X; linux

Barco CX-30:

• Power supply: standard 110/220 V AC
• Works with all video conferencing solutions
• Operating system: Windows 8/8.1/10 – macOS 10.13 and above – Android v9 and above (ClickShare app) – iOS 12 and above (ClickShare app)
• Video outputs: 4K UHD (3840×2160) resolution at 30Hz. HDMI 1.4b
• Audio output: USB, HDMI
• USB: 1x USB-A, 1x USB-C
• Click sharing buttons: 2
• Native protocols: Airplay, Google Cast, Miracast.
• Authentication protocol WPA2-PSK in standalone mode and WPA2-PSK or IEEE 802.1X using ClickShare button in network integration mode
• Connections: 1x LAN 1 Gbit Ethernet; 1x USB type C 2.0 (front); 1x USB type A 2.0 (front)
• Anti-theft system: Kensington lock
• Certifications: FCC / CE
• Local vision and moderation: Local vision of the room screen
• Network connection: LAN and WiFi
• Warranty: 1 year
