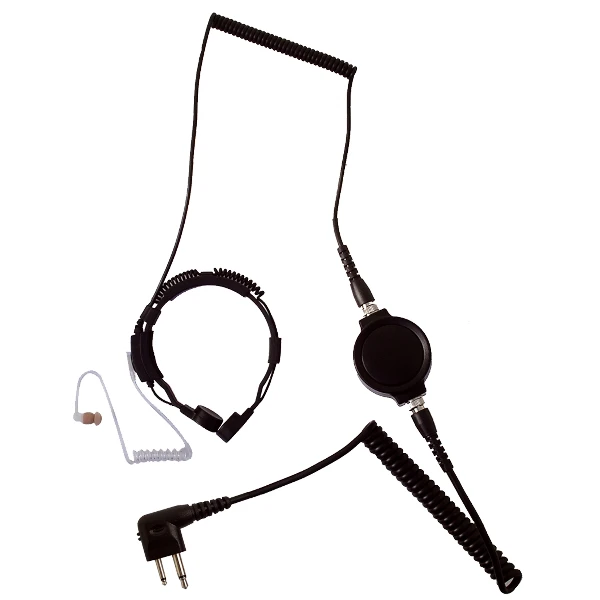

LGR-32M Throat Mic For 2-pin Motorola Radios

The LGR-32M is a very robust throat mic designed for noisy environments.  The microphone transducers can be positioned on both sides of the next to ensure good transmission.

The microhpone is also fitted with an acoustic tube earphone for great reception.  There is a large heavy duty PTT button to allow the whole system to be worn under heavy uniforms or special clothing.

It has been designed to fit all radios with a 2 pin jack such as the Motorola XTNI, XTNID, XT420 and XT460.

Technical specifications:

• Speaker output level – 102+/- 3dB
• Speaker impedance – 32 ohm +/- 15%
• Speaker frequency range – 450-20,000Hz
• Speaker audio output – 30mW
• Omnidirectional condenser microphone
• Microphone sensitivity – – 65dB +/2dB
• Microphone frequency response – 20-16,000Hz
• Microphone operating voltage – 3V
• Microphone current consumption – Max 50mA
• Microphone impedance – 2.2K ohms
