Logitech Rally Bar Mini + Logitech Tap IP

Powerful video conferencing bar ideal for small rooms

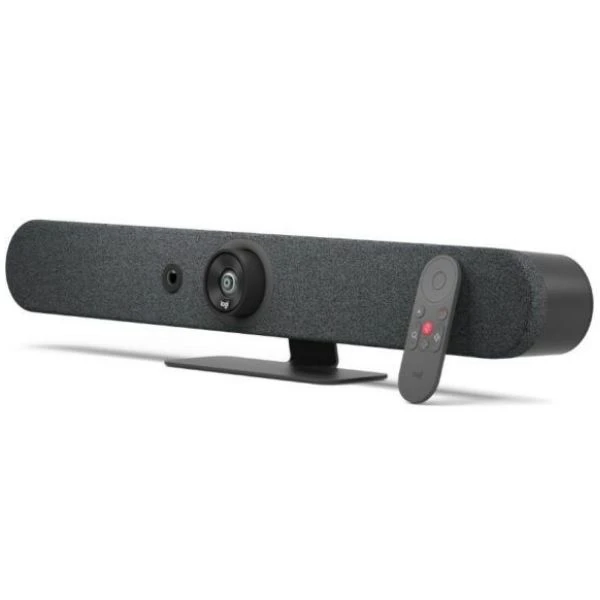

The Logitech Rally Bar Mini is an all-in-one video bar designed for meeting rooms of up to 4 people. This device is excellent in both picture and sound quality, with a 120° field of view, 15° tilt, and x4 digital zoom to keep your meetings flowing smoothly. It also features RightSight technology, which automatically includes all participants in the frame, even if they arrive during the meeting.

Enjoy great sound quality with the Logitech Rally Bar Mini thanks to its 6 built-in omnidirectional MEMS microphones that can pick up voices 4 meters away and suppress echo and background noise, all thanks to RightSound technology.

Very easy to install!

Installing this Plug & Play device only takes a few minutes. All you have to do is connect the Logitech Rally Bar Mini to your PC via USB and you can start video conferencing instantly. It comes with a remote control that allows you to perform actions such as picking up the phone, hanging up, zooming in and out, and adjusting the volume, all without having to get close to your device.

The easy and intuitive solution to create or join your video conferences

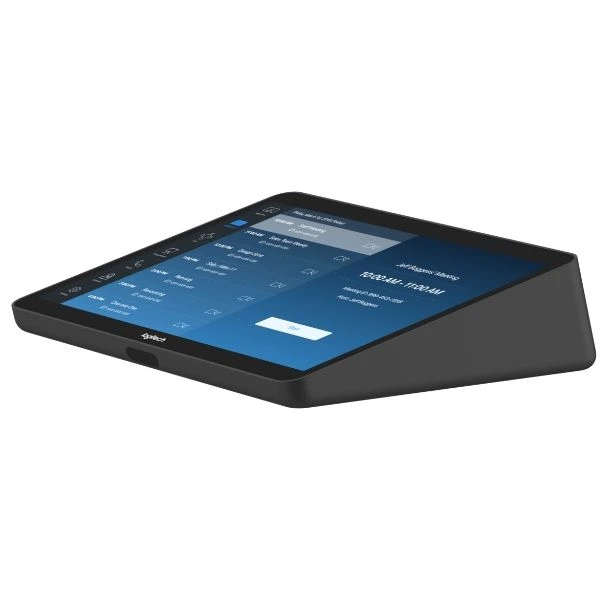

This tablet is a practical and elegant solution for managing meeting rooms accompanying the Logitech Rally Bar. It is compatible with Microsoft Teams Rooms on Android, Zoom Rooms, and RingCentral Rooms. This digital tablet gives you an overview of both your business calendar and the room’s video conferencing equipment and can share content wirelessly via Logitech TAP IP without the need to use cables to communicate with your video conferencing equipment.

Simplify the management of your Logitech TAP IP by using the Logitech Sync application, which allows you to monitor and manage both your meeting management system and the other devices in your business room, so you have a complete overview of all your equipment through a single platform.

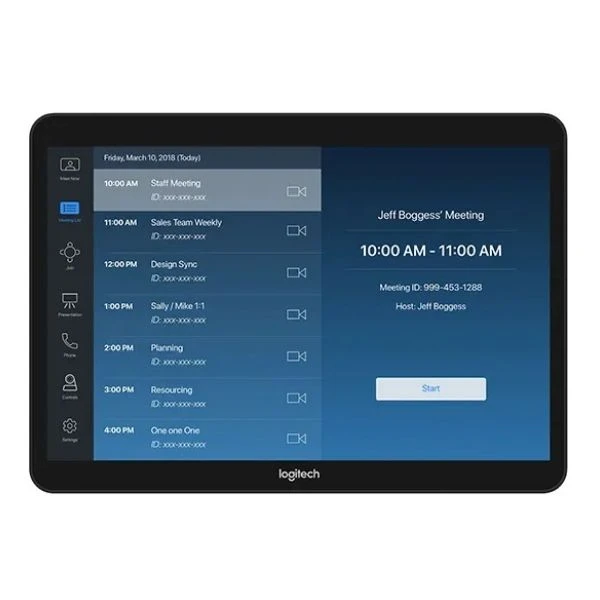

Large and high-definition display

The Logitech TAP IP has a large 10.1” LCD screen with HD resolution and integrated LED backlighting that allows you to clearly see all information on the screen with a colour display. In addition, this screen has an oil-phobic coating to prevent fingerprints from permanently marking and smudging the screen, allowing greater visibility for the user as well as providing a cleaner look for your meetings.

How to pair Rally Bar Mini and Logitech TAP IP?

Before you start, make sure that both devices are running CollabOS 1.4.204 or higher and that the display is connected to the Rally Bar Mini in app mode.

1. The first step will be to pair both devices: you must access the Tap IP --> System --> Pair New Device settings.

2. The second step is to get the device name and 4-character code from the Rally Bar Mini:
Press and hold the Bluetooth button on the back for 5 seconds.
On the device, identify the device name and 4-character code.

3. The third step will consist of: On the TAP IP, select the device with the name and 4-character code that matches the data shown (If you do not see the device you want to pair, press search again and go back to the instructions in step 2)
Press ‘Connect’ to confirm device pairing between Tap IP and Rally Bar or Rally Bar Mini.
On the Tap IP configuration screen, you will now see one tab for TAP IP and another for Rally Bar or Rally Bar Mini

Features:

Logitech Rally Bar Mini

• PTZ camera with 4K UHD resolution
• 120° diagonal field of view
• 15° tilt
• Total coverage (field of view + pan + tilt): 163
• 4x HD digital zoom
• RightLight Technology: natural colour transmission
• RightSight Technology: silhouette detection and automatic framing
• AI Viewfinder: automatic framing, participant detection and tracking
• Beamforming elements: 6 omni-directional MEMS microphones
• HD sound quality: Full-Duplex
• Frequency response: 90 Hz – 16 kHz
• Voice detection range: 4,5 m
• RightSound Technology: Voice equalisation + echo and background noise suppression
• Three speakers
• Speaker output power: 90 dB
• Subwoofer: 70 mm
• Sampling frequency: 48 kHz
• Product compatible with Microsoft Teams and Zoom
• Remote management possible via Logitech Sync platform
• Connectivity: USB-A; USB-C; HDMI; Wi-Fi
• Quick and easy installation: Plug & Play
• Dimensions: 91.4 x 719 x 101 mm
• Weight: 4.03 kg
• Colour: Anthracite grey
• Warranty: 2 years

Logitech TAP features:

• Touchscreen management controller for meeting rooms
• Large 10.1″ (25 cm) touch screen with colour display
• 1280 x 800 pixel HD resolution
• Display type: IPS (In-Plane Switching)
• 10-point multi-touch support
• LCD panel with LED backlight for increased visibility
• Brightness and contrast: 400 nits / 1000:1
• Viewing angle: 14
• Viewing angle: 85° (up/down/left/right)
• Oleophobic anti-fingerprint coating: protects against fingerprints
• Direct content sharing via IP Tap is allowed
• Integrated ultrasonic speaker
• Remote device monitoring and management via Logitech Sync, Microsoft Teams Admin Center and Zoom Device Management
• Supports the following video conferencing services: Microsoft Teams Rooms on Android, Zoom Rooms and RingCentral Rooms
• Integrated ambient light, accelerometer and PIR motion sensors
• Internal cable management and cable management system
• Power over Ethernet (PoE)
• Mounting system: VESA FDMI 100 mm x 100 mm
• Optional accessories: wall, tabletop and elevated mounting kits
• Connectivity: Ethernet, Wi-Fi or Bluetooth
• Product dimensions: 56.1 x 246.2 x 171.3 mm
• Tablet weight: 1 kg
• Operating temperature: 0 to 40 °C
• Colour: Graphite
• Warranty: 2 years
