Logitech Rally System for medium conference rooms

All-in-one professional video conferencing pack- for medium rooms

The Logitech Rally Plus Video Conferencing Kit offers professional quality video and audio for a more natural meeting experience. The combination of the camera, speaker, and micpod makes screen sharing more efficient. The Rally components provide superior versatility with style for the comfort of your meeting participants.

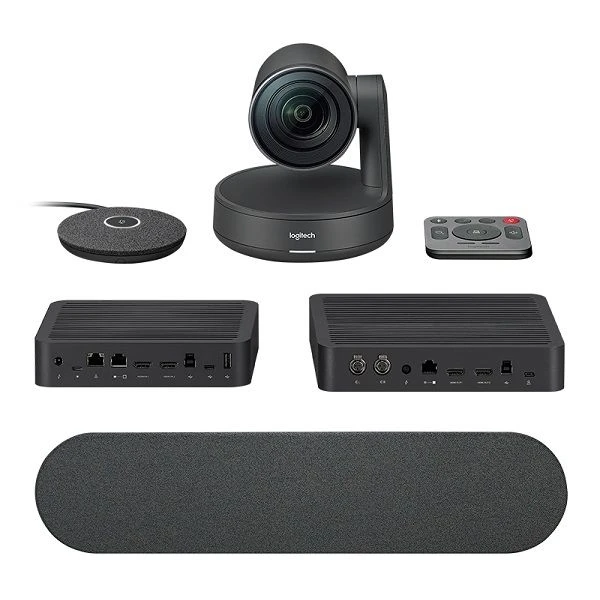

What’s inside the Rally system?

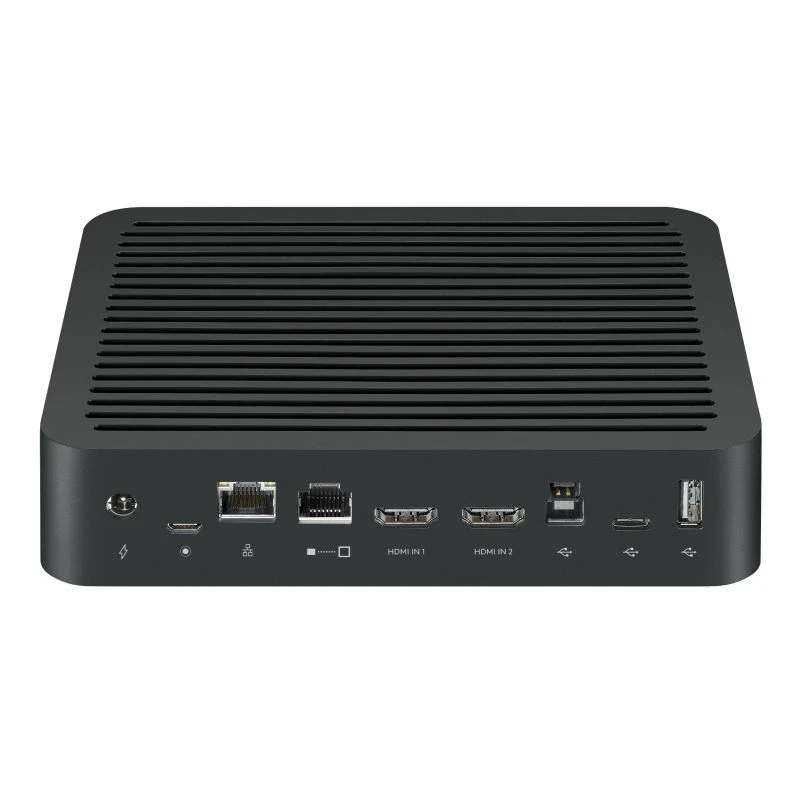

The Logitech Rally system is composed of a high-quality Logitech Rally Camera. A Rally Screen Hub, a Rally Speaker, and a Rally Microphone base are also provided.

The right optimization

Logitech RightSense ™ technologies, including RightSight ™ for camera control, RightLight ™ for video optimization, and RightSound ™ for audio enhancement, make meetings easier. This technology works seamlessly with the major video conferencing platforms to deliver an exceptional video chat experience.

Ultra-HD imaging system and automatic camera control

The Rally camera produces clear video, extraordinary color, and exceptional optical precision with resolutions of up to 4K.

The Rally camera produces clear video calls, extraordinary color, and exceptional optical precision with resolutions of up to 4K.  Higher quality and privacy will provide a much more comfortable experience.

Phenomenal video quality

With quiet pan/tilt/zoom mechanical functions, the Logitech Rally PTZ camera captures all attendees with the truly impressive video quality.

Logitech RightLight technology optimizes the balance of light to highlight faces. This technology presents natural skin tones, even in dim or backlit conditions.

The Rally camera is equipped with advanced optical and revolutionary features. This offers superior performance whatever the size or shape of a meeting room.

Suitable for any environment

The Rally camera is equipped with superior-quality components and a 4K sensor, suitable for any professional environment. The camera has a matte black finish with grey molding. It can be placed on a table, tripod, or wall using the included mount.

The ultimate audio experience

The Logitech Rally Speaker is designed to fill larger rooms with clear audio and makes speech easy to understand. It is equipped with RightSound™ technologies that virtually eliminate distortion, clipping, and vibration. The Rally Speaker ensures voices are heard whilst maintaining comfortable volume levels throughout the room.

Life-like natural conversations

Place your Speakers at the front of the room to ensure voices and video always come from the same direction. With Rally Mic Pods on the table and Rally Speakers at the display, conversations feel natural and life-like.

Anti-vibration enclosure

The anti-vibration enclosure enables the superior echo-canceling performance of Rally Mic Pods. This also ensures that video images remain clear even when zoomed in. The Mic pod adds more clarity to the conversation.

Enhance the sound quality of your conference calls

The Logitech Rally Mic Pod is an additional microphone for the Logitech Rally webcam. Connect up to 7 microphone bases in series with a single cable connection to the Rally desktop hub. Anti-slip pads on the base of the Rally Mic Pod prevent the microphone from slipping on the tabletop.

The Logitech Rally Mic Pod has a high degree of sensitivity and a large radius of action. Echo and noise cancellation technology suppress background noise, ensuring crystal clear sound quality. The Rally Mic Pod captures all voices in the room and is equipped with an acoustic beam.

This additional microphone has been designed to offer maximum sensitivity with minimum interference, offering an intuitive audio experience. A patent-pending suspension system prevents interference caused by vibrations or unwanted background noise.

Simple to manage

The included Logitech Rally camera complements audio systems to deliver high-quality video with most video conferencing services.

The Rally pack is optimal for all-in-one professional video meetings.







Features:

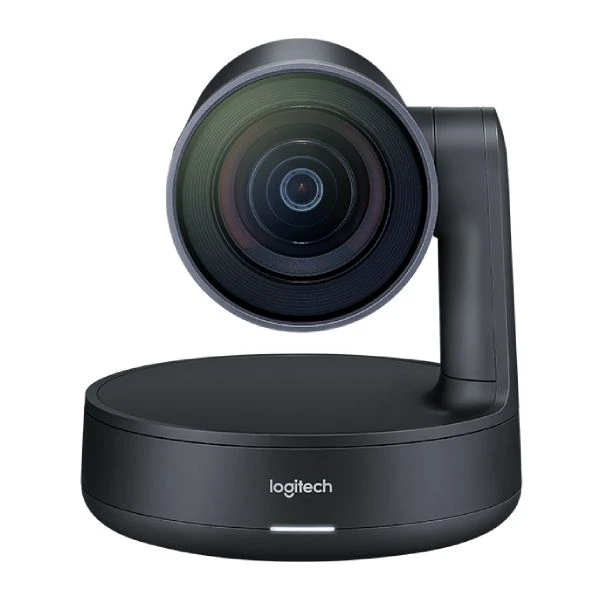

Logitech Rally Camera:

• Ultra-HD imaging system supports:
• 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
• 1080p, 720p at 30fps and 60fps
• Smooth motorized pan, tilt, and zoom
• Pan: ±90°
• Tilt: +50° / -90°
• 15x HD zoom
• Field of View:
• Diagonal: 90°
• Horizontal: 82.1°
• Vertical: 52.2
• Autofocus
• 3 camera presets
• Kensington security slot
• Video mute/unmute LED indicator
• Standard tripod thread
• Lens parks at -90° in sleep mode for assured privacy
• RALLY MIC POD
• Pickup range: 4.5m diameter
• Four omnidirectional microphones forming eight acoustic beams
• AEC (Acoustic Echo Cancellation)
• VAD (Voice Activity Detector)
• Background noise suppression
• Mute button with LED status indicator
• Captive 2.95m 12-pin cable
• Daisy chain up to 7 Rally Mic Pods
• Frequency response: 90Hz – 16kHz
• Sensitivity: >-27dB +/-1dB @ 1Pa
• Microphone data rate: 48 kHz

Recommended # of participants:

• Rally (one Mic Pod): 10
• Rally Plus (two Mic Pods): 16
• Additional participants per Mic Pod: 6
• Recommended participants for Rally with 7 Mic Pods: 46

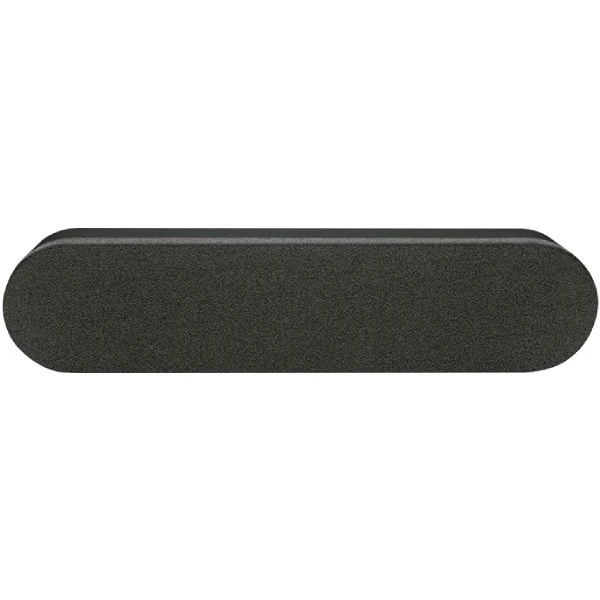

Logitech Rally Speaker:

• High-performance 3″ (76mm) driver with a rare-earth magnet
• Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
• Mini XLR cable connects to Rally Display Hub for both signal and power
• Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
• Sensitivity: 95+/-2dB SPL at ½ meter
• Distortion: 200Hz–300Hz < 2.5%, 300Hz–10kHz < 1%@7.5W
• Speaker sampling rate: 48 kHz

Logitech Rally Mic:

• Pickup range: 4.5m diameter
• Four omnidirectional microphones forming eight acoustic beams
• AEC (Acoustic Echo Cancellation)
• VAD (Voice Activity Detector)
• Background noise suppression
• Mute button with LED status indicator
• Captive 2.95m 12-pin cable
• Daisy chain up to 7 Rally Mic Pods
• Frequency response: 90Hz – 16kHz
• Sensitivity: >-27dB +/-1dB @ 1Pa
• Microphone data rate: 48 kHz
• Recommended # of participants:
• Rally (one Mic Pod): 10
• Rally Plus (two Mic Pods): 16
• Additional participants per Mic Pod: 6
• Recommended participants for Rally with 7 Mic Pods: 46
