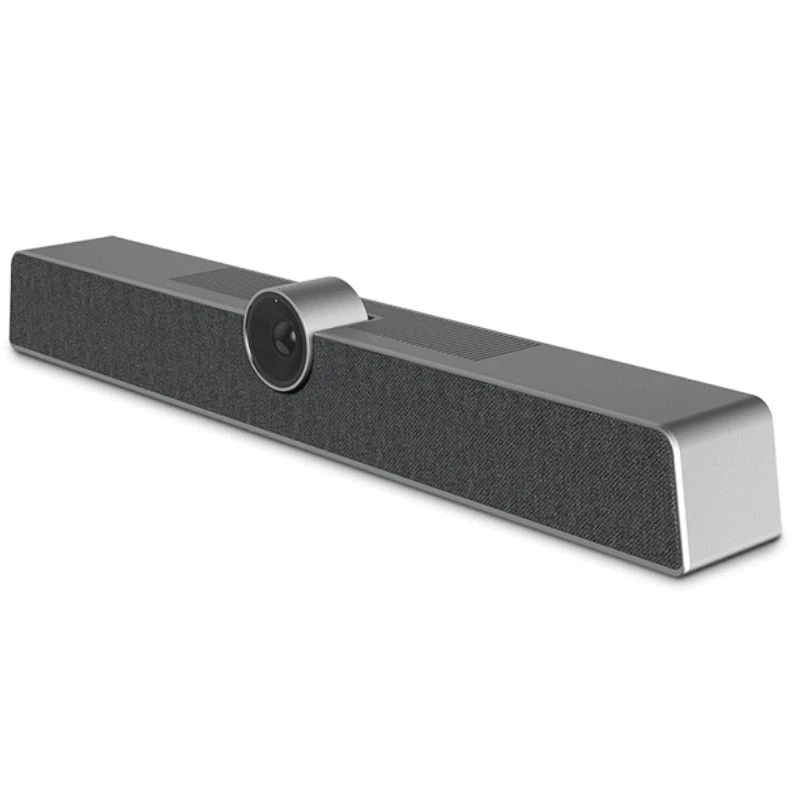

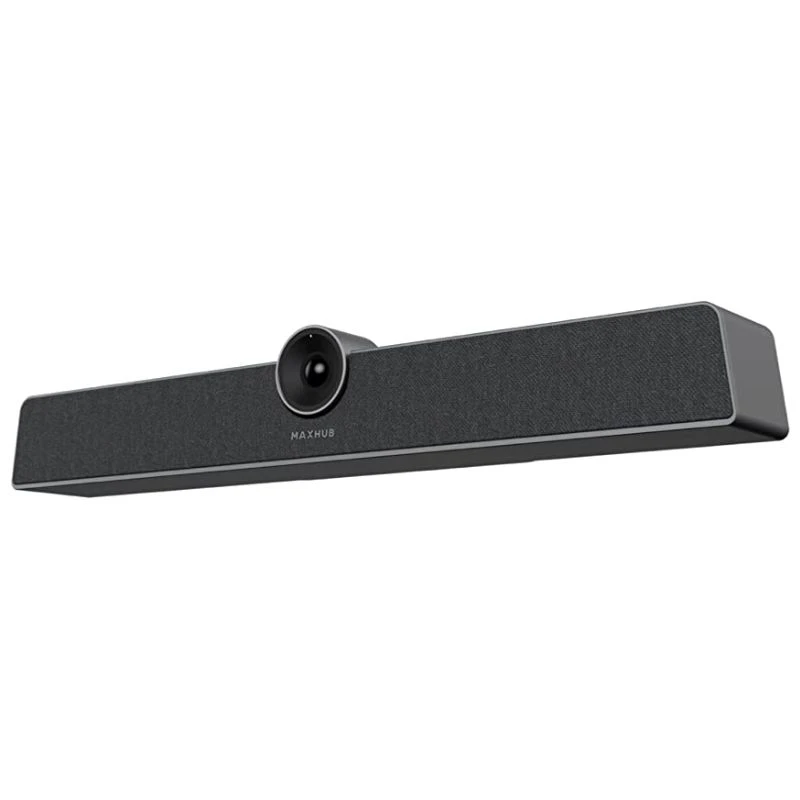

MaxHub UC S05

All-in-one USB video conferencing camera with 120º angle of view

The MAXHUB UC S05 is an all-in-one solution ideal for your meeting or exhibition rooms. With a 12 Mpx camera, microphone with 8 meter range and speaker with HD sound to make your communication a success. Your meetings will have another level with this conference camera. It has multiple connections and can be mounted above the screen, on the desk or on the wall. It has excellent picture quality, surround sound and everything you need to make your meetings as natural as possible. Use it for conferences, meeting rooms, exhibitions, training centres, schools or presentations.

Professionalism in an all-in-one device

With its 120° field of view, a 15° vertical range angle, automatic framing with intelligent face detection and voice localisation, the MAXHUB UC S05 follows who is speaking and smoothly switches presenters. MAXHUB UC S05 will be your perfect ally to make sure you don’t miss a single detail in your meetings. The quality of its camera will give your interlocutors an excellent view of everything you tell them. It has an integrated 8W speaker to, together with the microphones, give prominence to a clear voice. No complex installation or cables required, just connect it to your PC via USB cable (Plug&Play) and start enjoying the best video conferencing. In short, a compendium of professional functionalities in a single practical device that is easy to use and install.

Features:

Camera:

• Resolution: 4K 30fps
• Plug&Play connection
• Focus: Fjo (1m)
• Tilt range: up 15°/ down 15º
• White balance: auto
• Noise reduction: 2 D&3D Digital Noise Reduction
• USB connection to PC
• Camera 12 Mpx and 5x digital zoom
• 120° field of view
• EPTZ auto framing
• 3 presets

Sound:

• Speaker channels: 1
• Power: 8W
• Frequency range (-10dB):150hZ-15KhZ
• Harmonic distortion (total): ≥5%.
• Signal to Noise Ratio: ≥75dB

Microphone:

• Microphones: 6 MEMS
• Listening range:0~8m (180º to the front)
• Frequency response: 100Hz~7.5kHz
• Noise reduction, echo cancellation, beamforming, voice localization.

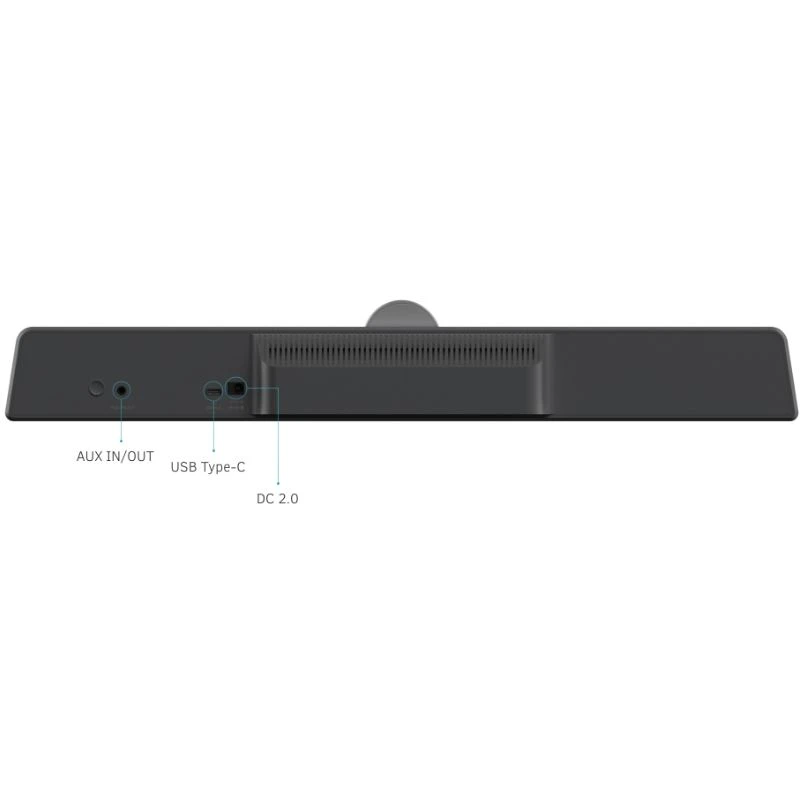

Inputs/Outputs:

• Audio In/out: 1 x 3.5 mm audio port (AUX)
• USB: 1 USB 3.0 (USB-A; host); 1 USB 2.0 (USB-C)
• Power requirements: 12 V 3A
• Total power 36 W

Additional Features:

• VC software support: ZOOM, Microsoft® Teams, Google Meet, Google Hangouts, Cisco WebEx®, RingCentral, etc.
• Flexible installation: wall, above screen or desktop
• Dimensions: 462 x 76 x 93 mm
• Net weight: 1.03 kg
• Colour: Black
