Yealink MVC640 Gen 3

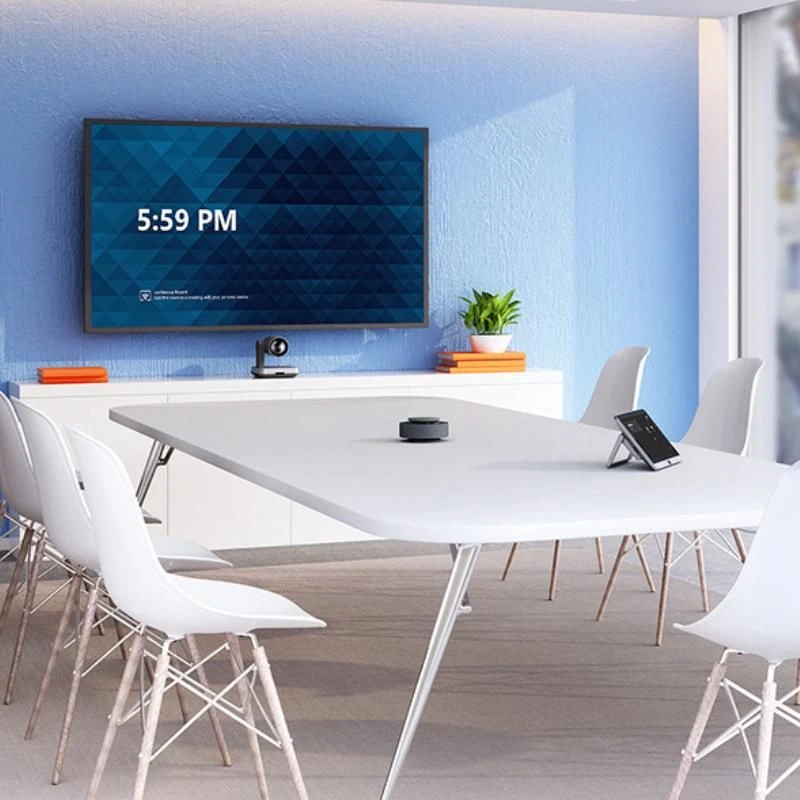

Microsoft Teams Rooms System for Medium-Sized Meeting Spaces: Yealink MVC640

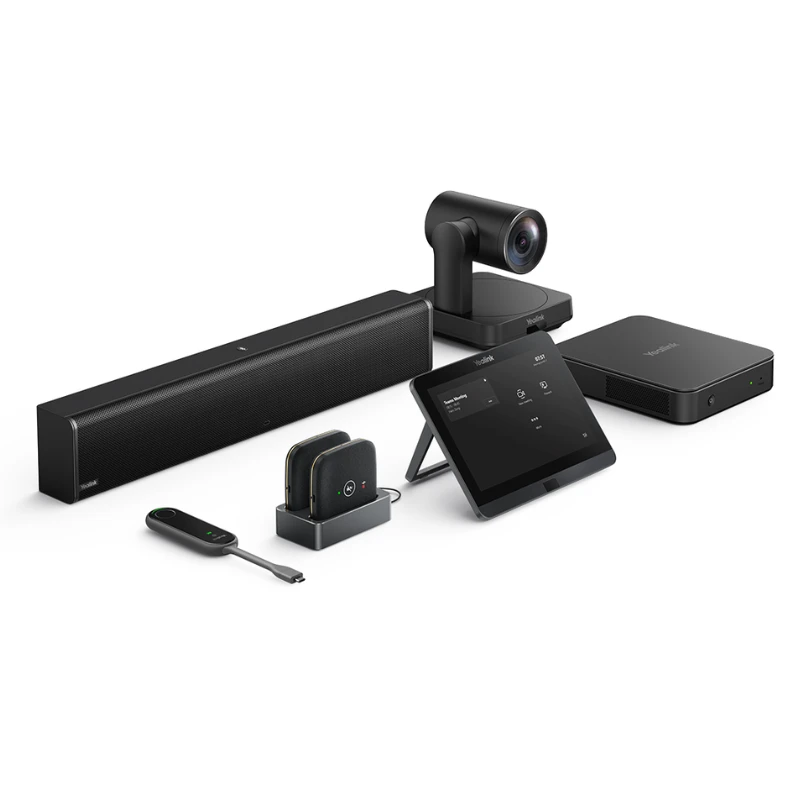

The Yealink MVC640 is thoughtfully tailored for medium-sized conference rooms. It comprises the cutting-edge MINI-PC MCore Pro, the user-friendly MTouch E2 touch panel, and the high-performance 4K PTZ camera known as UVC84. Within this product lineup, you have the flexibility to select different microphone options to cater to the specific requirements of various meeting spaces. These options include the DECT wireless microphone CPW65 and the Wi-Fi wireless microphone VCM36-W.

What sets the UVC84 apart in this lineup is its exceptional performance. It boasts a 4K lens with support for 12x optical zoom and 3x digital zoom, an 80° wide-angle view, and a pan-tilt mechanism that allows it to cover every nook and cranny of the conference room. The UVC84’s Auto-framing feature takes the guesswork out of camera positioning, liberating your attention to focus on the meeting content. Furthermore, with Yealink’s camera plug-in controller, you can easily set presets, make one-step adjustments, and position the camera precisely with minimal effort.

Auto-Framing with UVC84

The Yealink UVC84 camera automatically frames all meeting participants, allowing you to focus on the discussion. It also supports camera presets for effortless pan, tilt, and zoom adjustments, delivering clear 4K video calls with 12x optical zoom

MTouch E2 Convenience

MTouch E2 includes a built-in motion sensor for automatic system activation. It offers an intuitive user interface for one-click meeting initiation, call control, camera management, and content sharing.

Real-Time Content Sharing:

Easily share content with wireless flexibility using the WPP30, supporting 1080P/30 frames resolution. Wired content sharing via USB-C or HDMI is also an option.

Compatible accessories:

• WPP30 – Support pairing up to 8,connecting 4 but only using 1 at a time
• VCM34 – Support pairing/using up to 6 at a time
• VCM35 – Support pairing/using up to 8 at a time
• VCM36W – Support pairing/using up to 4 at a time
• VCM38- Support pairing/using up to 8 at a time
• MSpeaker II – Support pairing/using up to 4 at a time

Features:

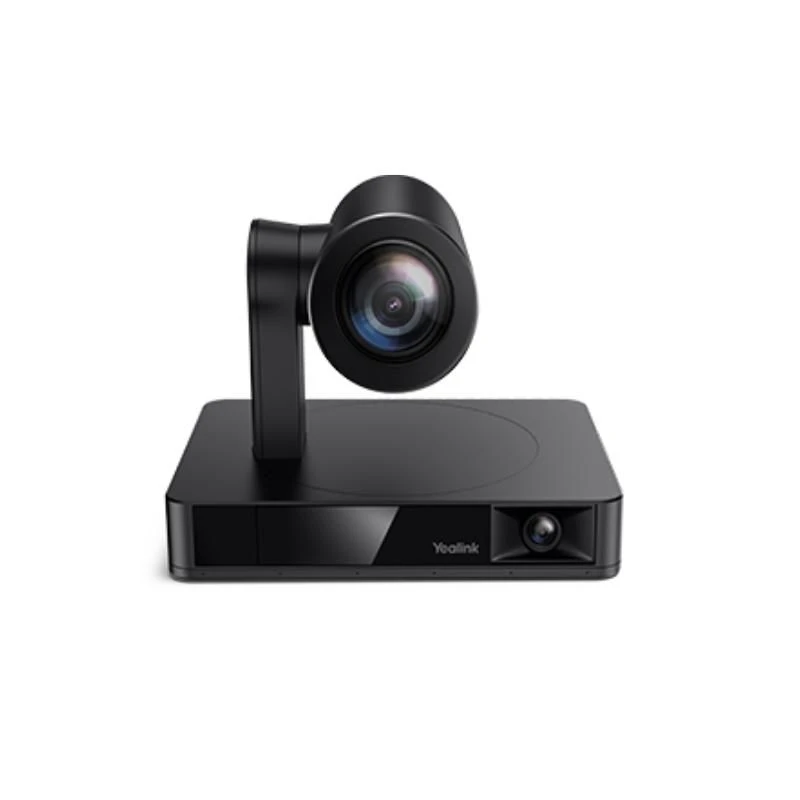

UVC84 USB PTZ camera

• 4K Sensor
• 12x optical zoom
• Field of view (diagonal): 80°
• Auto Framing
• Camera presets
• Pan range: 200°
• Tilt range: 130°
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

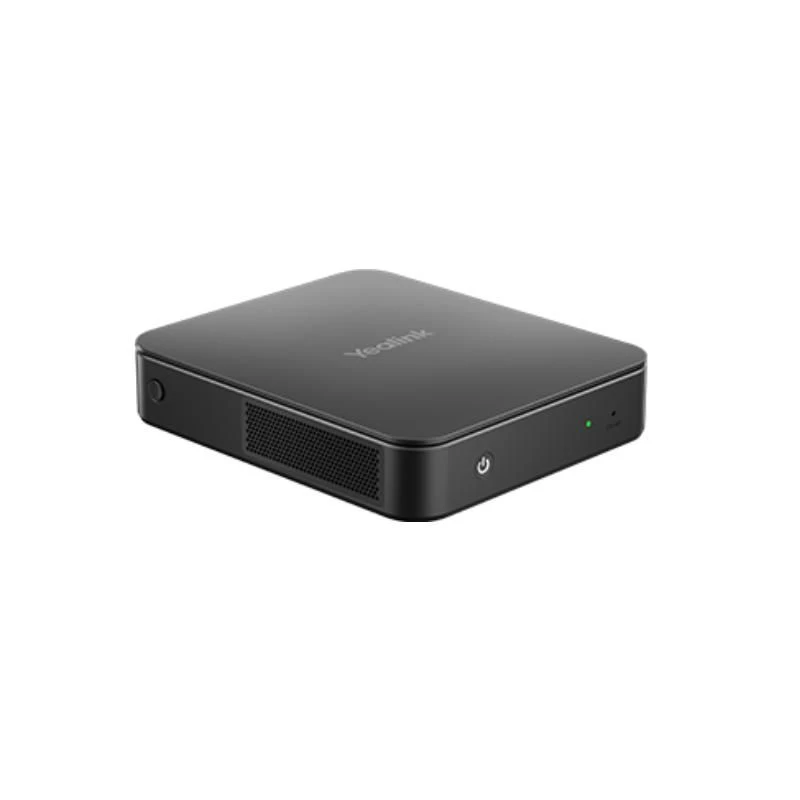

MCore Pro, Gen-3 Mini-PC

• 11th Gen Intel® Core i5
• Memory: 8 GB (2 x 4GB)
• Storage: 128 GB SSD
• 3x HDMI video output with CEC supported
• TPM2.0
• Kernel DMA
• EDID
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot, Integrated cable management
• Windows 10 IoT Enterprise X64 / Windows 11 IoT Enterprise X64
• Windows 10 IoT Enterprise License
• Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
• Yeallink RoomConnect

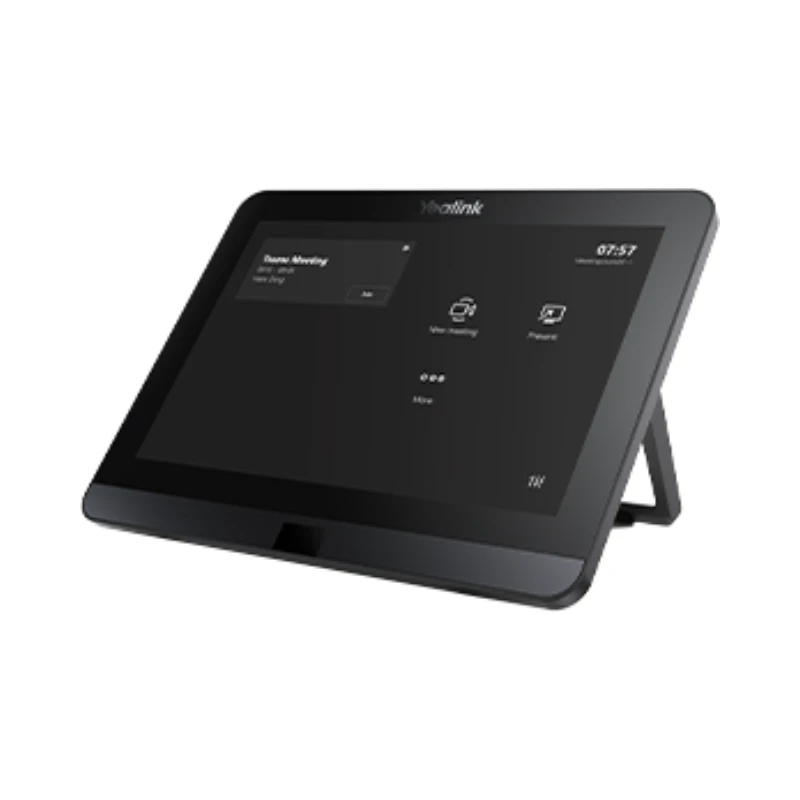

MTouch E2 touch panel

• 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touch screen
• 3.5 mm headset jack
• Angle adjustable bracket (28° – 50°)
• 1080P/30FPS FHD for sharing
• Support wired and wireless content sharing
• Built-in Wi-Fi AP for Yealink wireless presentation device
• HDMI/USB-C HD video input

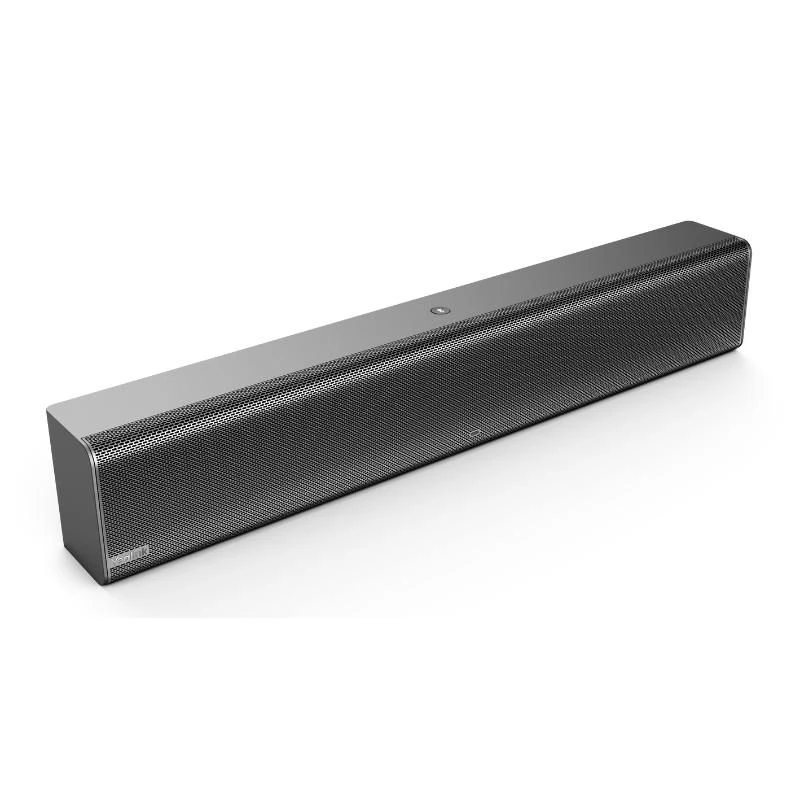

MSpeaker II

• Frequency response: 106Hz-20 KHZ
• Maximum Loud Pressure level: 88±3dB@8W / 1M
• Sensitivity: 79±3dB@1W/1M
• S/N: ≥70dB
• 3.5mm linear input interface

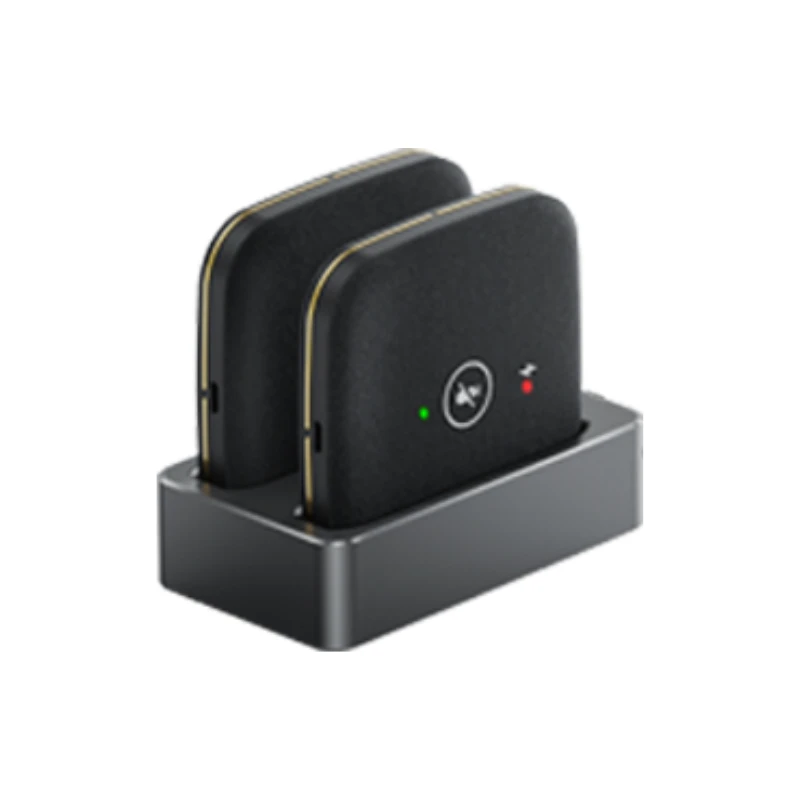

CPW65

• 360° omnidirectional pickup
• Signal-to-noise ratio: 65dB SPL@1KHz,A-weighted
• Loudest Pressure level: 110dB@1KHz, THD< 3%
• Equivalent noise: -110dBFS(A)
• Dynamic range: 81dBFS
• Sensitivity: -32db+/-2
• Frequency response: 100Hz-8KHz
• 2-meter radius full duplex range
• 6 m pickup radius
• Use Yealink WDD60 for pairing
• Two-color LED capacitive touch mute button

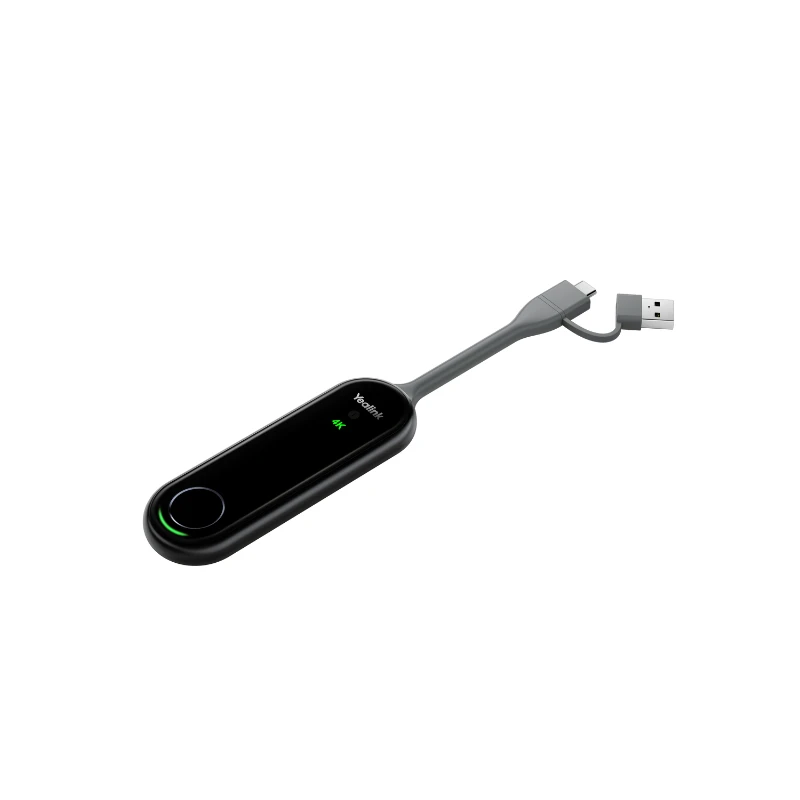

WPP30 Content Sharing

• Key features and benefits
• Self-built Wi-Fi Network
• 4K/30fps Full HD Content Sharing
• Adaptive Software/Hardware Encoding
• Dual-band 2.4GHz/5GHz wireless networks
• Plug and Play
• Full-featured USB Type-C and USB Type-A Ports
• AES & WPA Data Encryption
• Adapt to Computers and Mobile Phones with Different Ports
• Up to four content streams can be presented simultaneously
• Supports annotations, whiteboards, and reverse control
• Support BYOD
