Yealink MVC860 Gen 3 (No Audio)

Introducing the Yealink MVC860: Revolutionizing Video Conferencing for Medium and Large Meeting Spaces

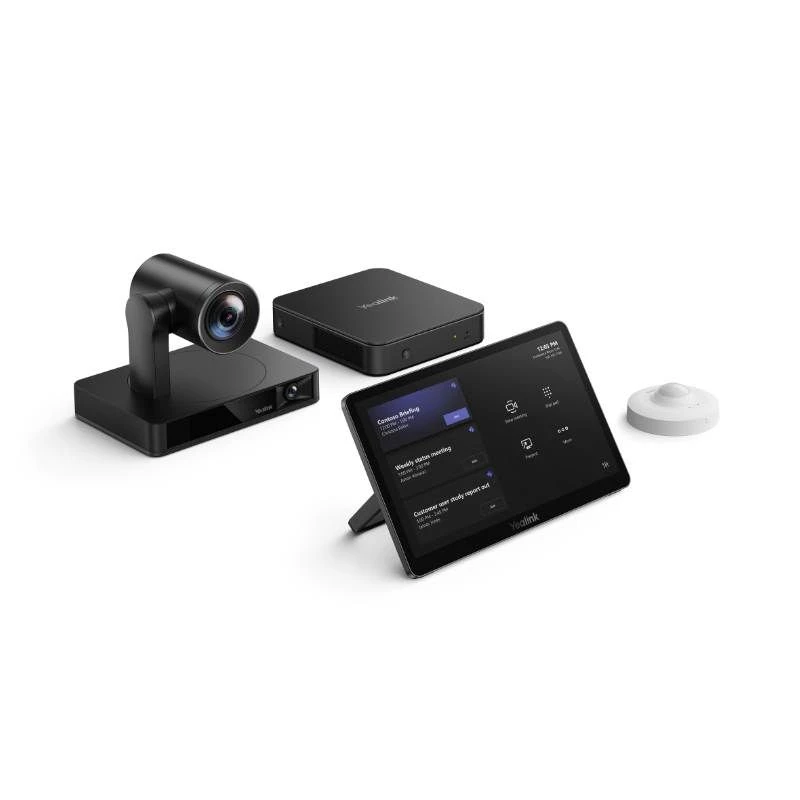

Tailored specifically for medium to spacious meeting areas, the Yealink MVC860 Microsoft Teams Room system represents the pinnacle of video conferencing solutions. This comprehensive package encompasses cutting-edge components, including the intelligent tracking camera UVC86, a compact MCore Pro mini-PC, the MTouch Plus touch panel and Room Sensor. Together, these elements harness state-of-the-art technology to facilitate seamless and intelligent collaboration for both internal and external users.

Optimized Microsoft Teams Integration for an Effortless Conference Experience

Experience seamless meetings with the native Microsoft Teams-tailored user interface that allows for one-touch meeting joins. The versatile MTouch II touch panel, designed as a multi-function all-in-one solution, facilitates easy call control, camera adjustments, content sharing, and more. The panel includes a built-in Human Motion Sensor, enabling automatic activation of the conference system for immediate meeting initiation.

Elevate your Meeting Room Experience

The UVC86 PTZ camera boasts intelligent features such as auto-framing, speaker tracking, and presenter tracking, enhancing your video conferencing interactions. With 4K video output and 12x optical zoom, the camera ensures clear and detailed images, delivering a superior meeting room experience.

Total Conference Control at Your Fingertips

Equipped with the third-generation MTouch Plus touch panel, the system allows for multiple panels, enabling simultaneous conference control and providing flexibility in room setup. Choose from a range of audio options, including wired and wireless microphones featuring advanced noise elimination technology for impeccable voice quality.

Compatible accessories:

• VCM34 – Support pairing/using up to 6 at a time
• VCM35 – Support pairing/using up to 8 at a time
• VCM36W – Support pairing/using up to 4 at a time
• VCM38- Support pairing/using up to 8 at a time
• MSpeaker II – Support pairing/using up to 4 at a time
• CPW65 – Support pairing/using up to 1 pair, i.e. 2 CPW65 at a time
• WPP30 – Support pairing up to 8, connecting 4 but only using 1 at a time

Features:

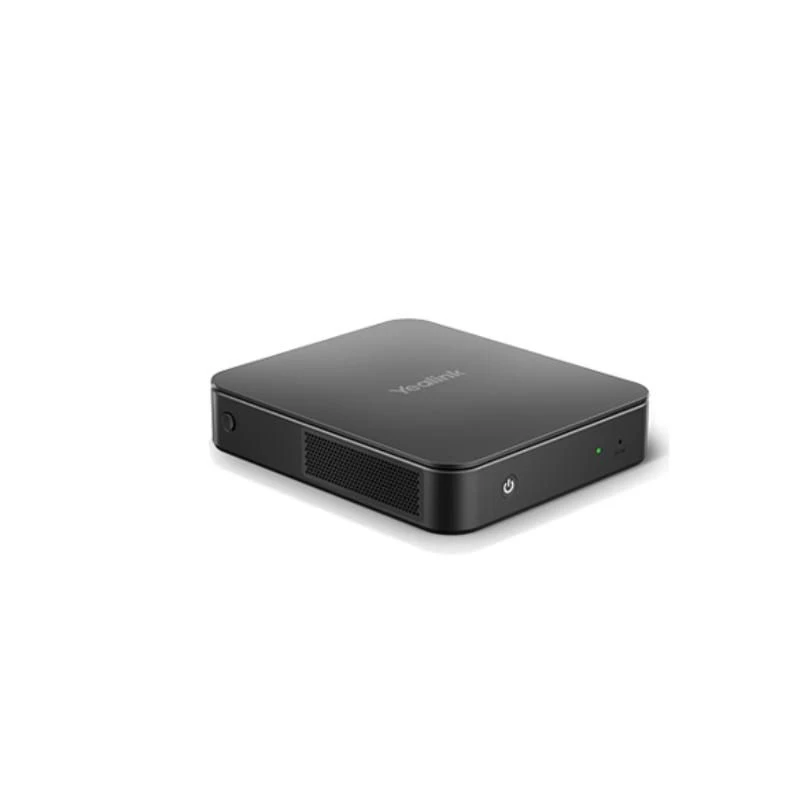

MCore Pro, Gen-3 Mini-PC

• 11th Gen Intel® Core i5
• Memory: 8 GB (2 x 4GB)
• Storage: 128 GB SSD
• 3x HDMI video output with CEC supported
• TPM2.0
• Kernel DMA
• EDID
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot, Integrated cable management
• Windows 10 IoT Enterprise X64 / Windows 11 IoT Enterprise X64
• Windows 10 IoT Enterprise License
• Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
• Yeallink RoomConnect

MTouch Plus

• 11.6-inch narrow bezel IPS display
• 1920 x 1080 video resolution
• Angle between screen and desktop (30° ~ 70°)
• Adjustable angle of support frame (50° ~ 180°)
• Support wired and wireless (with WPP30) content sharing
• Support multi-screen control
• Support wireless BYOD
• Support external PD power supply to power the sharing device
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, wall-mounted deployment

RoomSensor

• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0-40℃
• Operating humidity: 10-95%
• Power: Battery powered, 4 year life

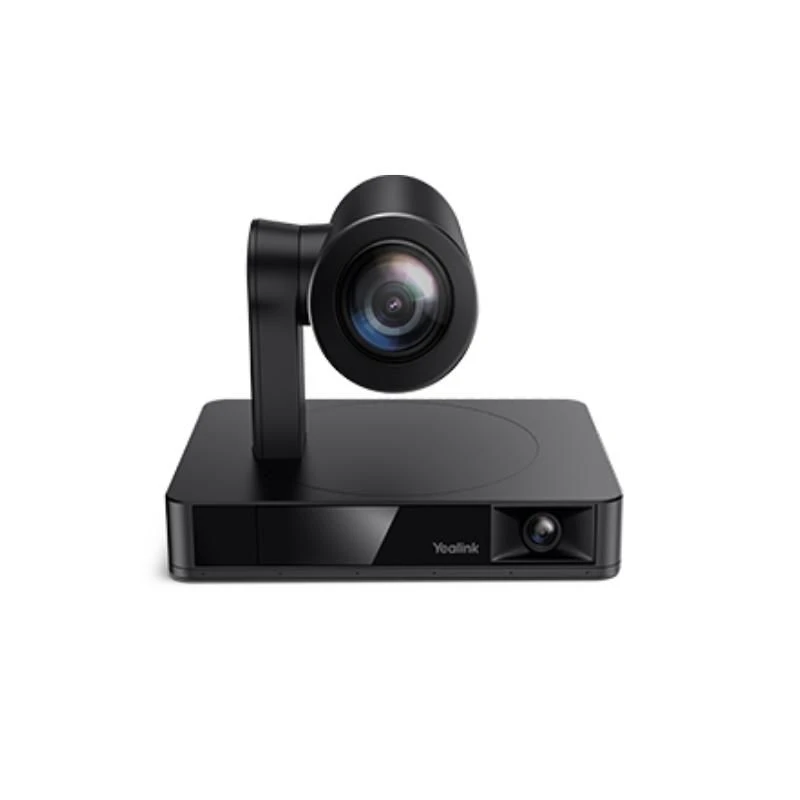

UVC86 USB PTZ Camera

• 4K Sensor
• 20.4 × HD zoom (12x optical, 1.7x digital)
• Angle of view:-90° DFOV, 81° HFOV, 50° VFOV ( Telephoto lens)-120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
• Auto-framing
• Speaker tracking
• Presenter tracking, support area trigger and gesture control
• Multi-focus
• Picture-in-picture
• Up to 9 preset positions can be set
• Support wireless BYOD
• Horizontal rotation: 200°
• Vertical rotation: 130°
• 1 x HDMI output
• 1 x Yealink microphone port(RJ-45)
• 1 x USB 3.0 Type-B port
• 1 x USB 2.0 Type-A Port
• 1 x Power Port
• 1 x Security Lock
• 1 x Reset Hole
