Yealink MVC860 Microsoft Teams Rooms On Windows

Microsoft Teams Rooms System for Medium and Large Room

Yealink MVC series are easy-to-use video conferencing solutions specially designed for Microsoft Teams rooms. The MVC series provides a full-scene video conference solution to cover all of the meeting rooms from small to large.

According to the unique characteristics of the video conferencing room, a high-performance mini-PC is specially released. The mini-PC includes both aesthetics and practicability, and fully integrates the cable management to provide a flexible and reliable deployment solution for any meeting space.

The MVC series features the native Microsoft Teams-tailored user interface that is easy to operate with a close-to-zero learning curve. You can just walk into the meeting room and start your scheduled Teams or Skype for Business meeting with one-touch join.

Native Microsoft Teams-tailored user interface, smooth conference experience

Native Microsoft Teams-tailored user interface offers a one-touch meeting join. The MTouch II touch is a multi-function panel allowing you to easily perform call control, camera control, content sharing and other functions. At the same time, MTouch II has a built-in Human Motion Sensor.

Smooth tracking feature & multiple audio solution

Yealink UVC86 camera allows for the auto-framing of all participants present at a meeting with the panoramic camera detection. The speaker-tracking and presenter-tracking, allows you to free your hands and focus on the meeting itself.

Meanwhile, with the Yealink camera control plug-in and camera presets supported, the mechanical pan, tilt and zoom can be easily done in one step. Empowered with 12x optical zoom, UVC86 supports 4K video calls that conducts business to capture everyone in the meeting room clearly.

High quality video and audio

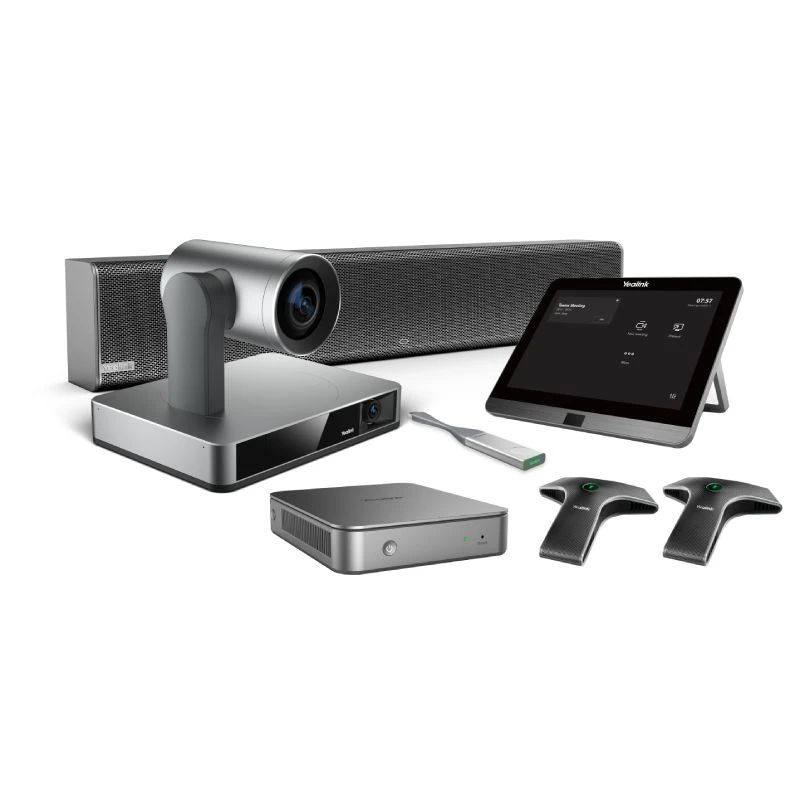

Yealink MVC860 includes a 4K UVC86 USB PTZ camera with 12x optical zoom, MCore, MTouch II, and MSpeaker II Soundbar. You can also select VCM34/VCM38/CPW90 array microphones to work with MVC860.

The UVC86 delivers face to face, intelligent and smooth video experience by precisely reproducing every moment and detail.

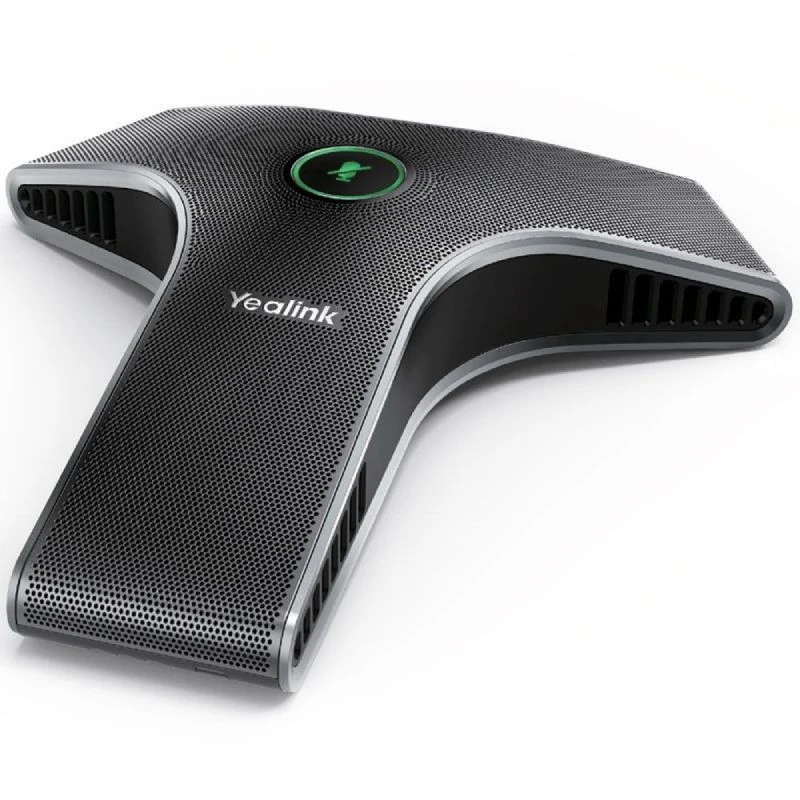

You can also select VCM34/VCM38/CPW90 array microphones to work with MVC860. Also, Yealink Noise Proof technology eliminates background distractions and noises so that you can enjoy a crystal-clear voice even in a noisy environment.

Content sharing in real time

The unique wireless content sharing solution provides participants with maximum flexibility. A one-click content sharing can be simply realized by plugging into the WPP20 only. With a high resolution of 1080P/30 frames, it provides users with a better content sharing experience. Besides, the wired content sharing is also available by connecting to the USB-C port or HDMI port.

Simple to deploy, easy to use

With the VCH port, MCore is specially designed for the video meeting rooms so that the deployment can be easily extended. At the same time, its all-in-one design features cable management to ensure the stability of the wire connection. The most appropriate deployment can be achieved according to the layout of the conference room.

One CAT5e is enough to connect the TV area to the conference table area and to complete the data transmission and power supply. No additional power supply or extension cable is needed, which not only simplifies the deployment but also effectively reduces deployment costs.

Manage your devices remotely

This solution supports Yealink Device Management Platform/Cloud Service. You can flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video devices peripherals on this platform remotely.





Features:

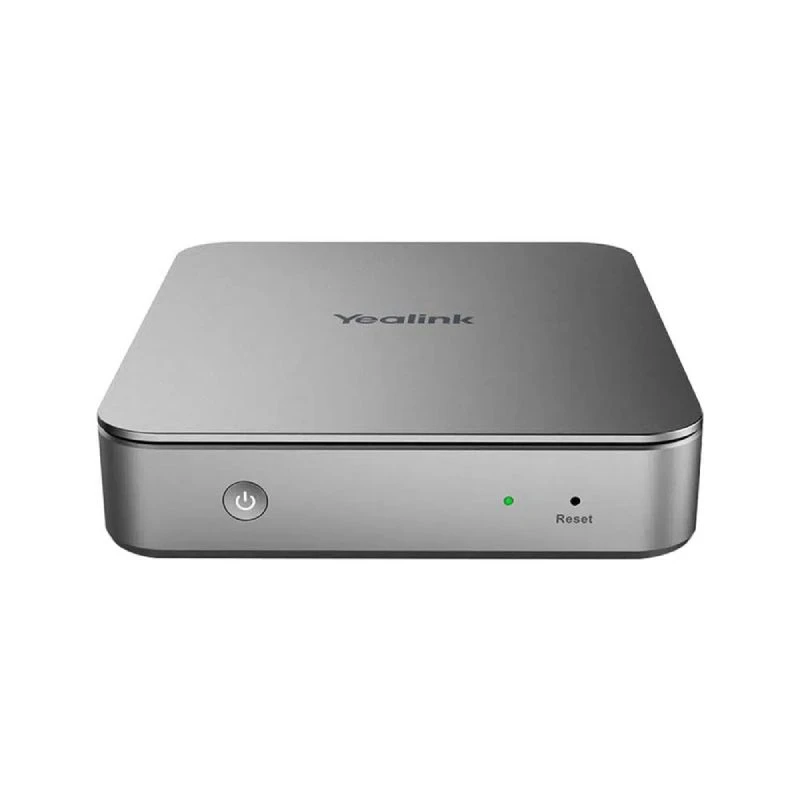

MCore Mini-PC

• 8th-gen Intel® QUAD-CORE i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• 2 x HDMI video output with CEC supported
• Bluetooth and Wi-Fi
• 1 x Yealink VCH port (RJ45), connect to MTouch II
• 4 x USB3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot
• Integrated cable management

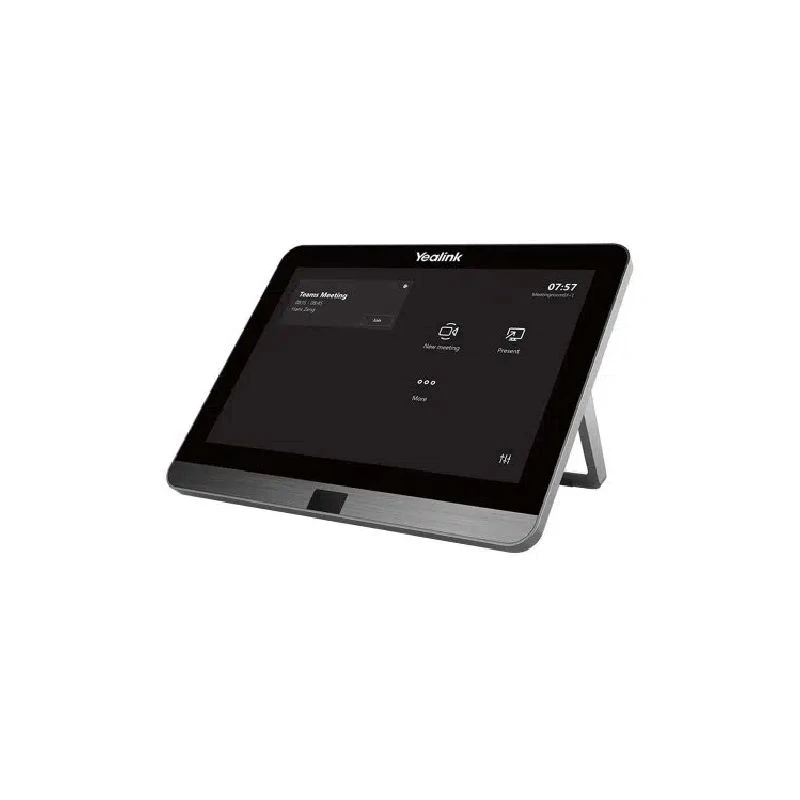

MTouch II touch panel

• 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touch screen
• 3.5mm headset jack
• Human Motion Sensor
• Angle adjustable bracket (28° ~ 50°)
• 1080P/30FPS FHD for sharing
• Support wired and wireless content sharing
• Built-in Wi-Fi AP for Yealink wireless presentation device
• HDMI/USB-C HD video input

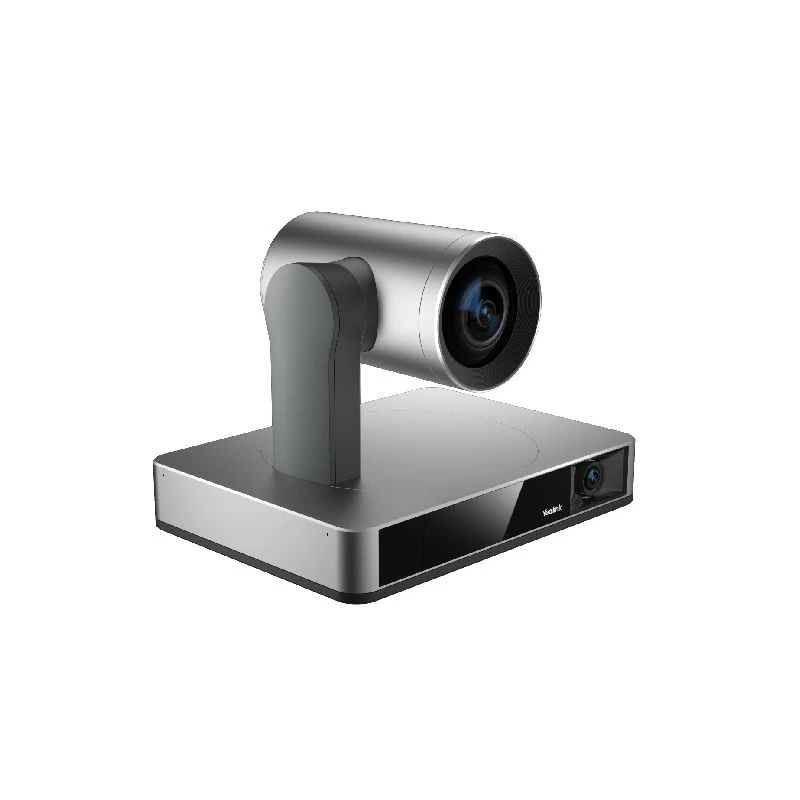

UVC86 USB PTZ Camera

• 4K camera
• 20.4 × HD zoom (12x optical, 1.7× digital)
• Field of view (diagonal): PTZ camera: 90° DFOV, 81° HFOV, 50° VFOV panoramic camera: 120° DFOV, 110° HFOV, 78° VFOV
• Auto Framing
• Speaker Tracking
• Presenter Tracking
• Camera presets
• Pan range: 200°
• Tilt range: 130°
• 1 x HDMI out
• 1 x Yealink VCH port (RJ45) for audio devices, BYOD extender or Yealink Codec
• 1 x USB 3.0 Type-B
• 1 x USB 2.0 Type-A
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot
