Yealink MVC940 Gen 3

Yealink MVC940: the 3rd Generation of Video Conferencing Solution for Extra-Large Rooms

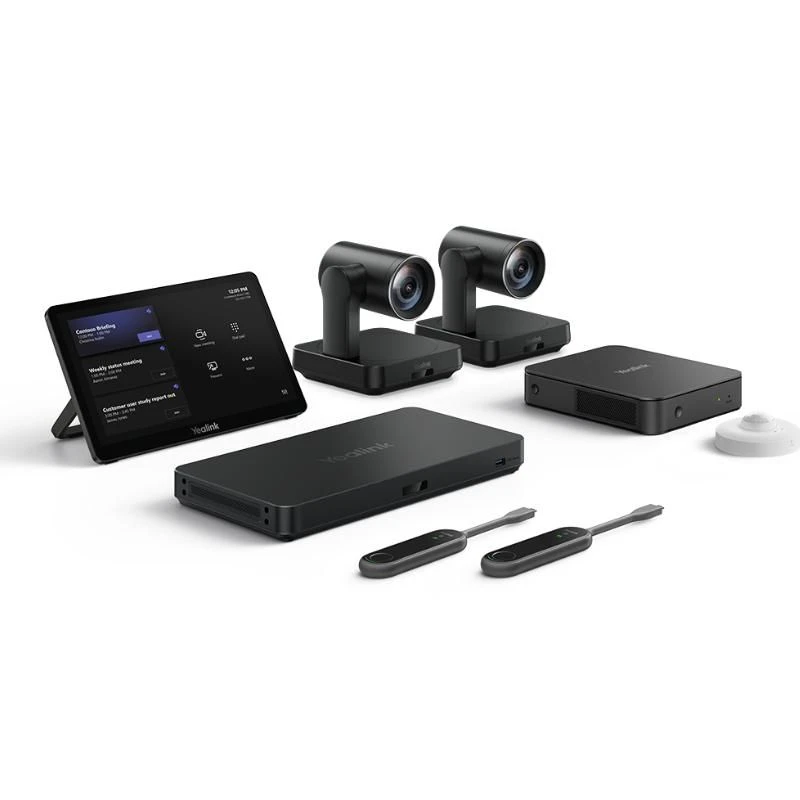

Yealink MVC940 is perfect for extra-large conference and training rooms, offering a comprehensive package including the high-performance MINI-PC MCore Pro, MTouch Plus touch panel, UVC84 4K PTZ camera, and AVHub for audio and video processing. The system supports up to 9 cameras at once, facilitates multispeaker tracking, and includes two UVC84 cameras with 12x optical zoom.

The MTouch Plus control panel provides seamless camera control and layout switching via Yealink RoomConnect. Pair it with MVC-BYOD-Extender for versatile meeting room functionality. Plus, you can combine multiple MVC940 sets through network cables for flexible room configurations.

Capture all movements

Yealink’s MVC940 offers a versatile multi-camera solution for conferences, supporting up to 9 cameras. Users can control them independently or create custom layouts. It allows flexible configurations by connecting multiple sets through network cables.

Control freely

The third-generation touch panel, MTouch Plus, enables simultaneous control with multiple panels, offering flexibility for conference room deployments. Users can choose between wired and wireless microphones, ensuring adaptability to various room setups, with noise reduction technology for clear audio.

Easy content sharing solution

Convenient screen sharing is made possible through Yealink’s WPP30 wireless content sharing solution, and the system is compatible with third-party content sharing solutions. It simplifies deployment with easy-to-use connections and cable management, reducing costs.

IIMPORTANT: This Video Conferencing Solution does not include audio products such as speakerphones. You can purchase them separately.



Compatible accessories:

• VCM34 – Support pairing/using up to 8 at a time
• VCM35 – Support pairing/using up to 8 at a time
• VCM38- Support pairing/using up to 8 at a time
• MSpeaker II – Support pairing/using up to 4 at a time
• CPW65 – Support pairing/using up to 1 pair, i.e. 2 CPW65 at a time
• MSpeech -Support pairing/using up to 1 at a time

Features:

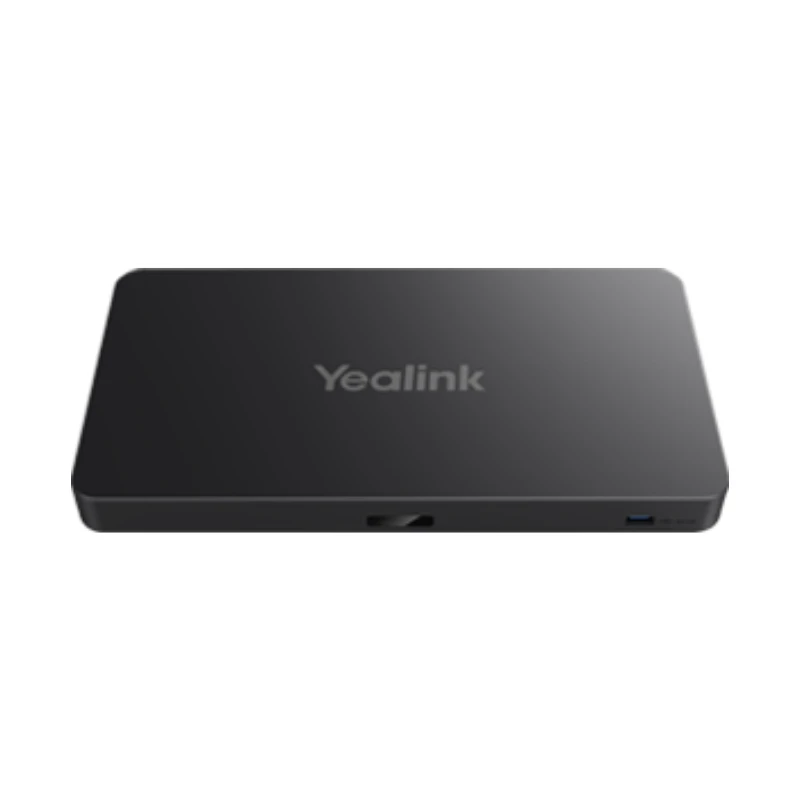

MCore Pro, Gen-3 Mini-PC

• 11th Gen Intel® Core i5
• Memory: 8 GB (2 x 4GB)
• Storage: 128 GB SSD
• 3x HDMI video output with CEC supported
• TPM2.0
• Kernel DMA
• EDID
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot, Integrated cable management
• Windows 10 IoT Enterprise X64 / Windows 11 IoT Enterprise X64
• Windows 10 IoT Enterprise License
• Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
• Yeallink RoomConnect

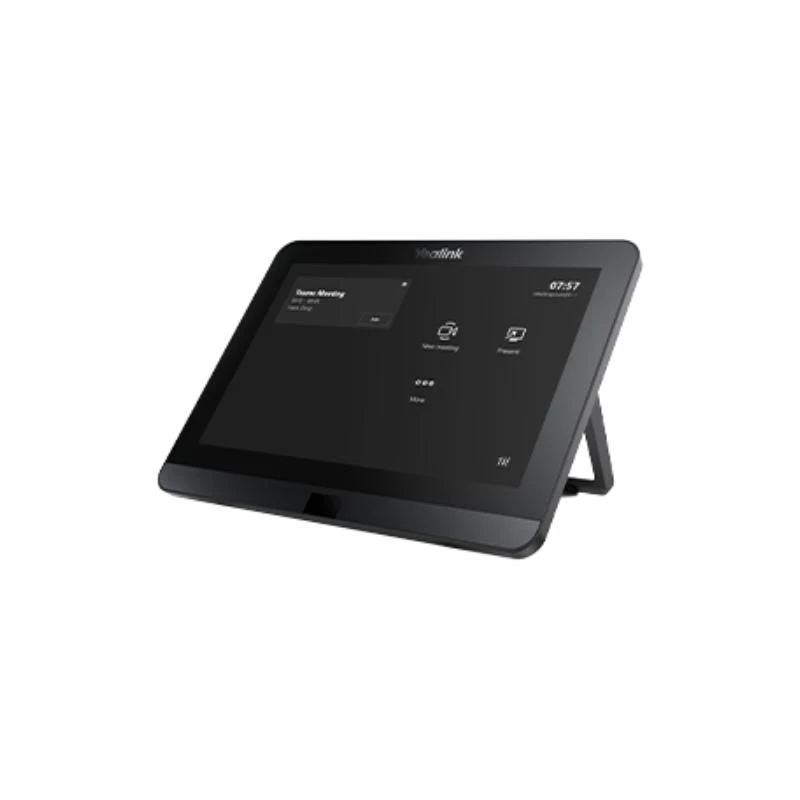

MTouch Plus

• 11.6-inch narrow bezel IPS display
• 1920 x 1080 video resolution
• Angle between screen and desktop (30° ~ 70°)
• Adjustable angle of support frame (50° ~ 180°)
• Support wired and wireless (with WPP30) content sharing
• Support multi-screen control
• Support wireless BYOD
• Support external PD power supply to power the sharing device
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, wall-mounted deployment

RoomSensor

• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0-40℃
• Operating humidity: 10-95%
• Power: Battery powered, 4 year life

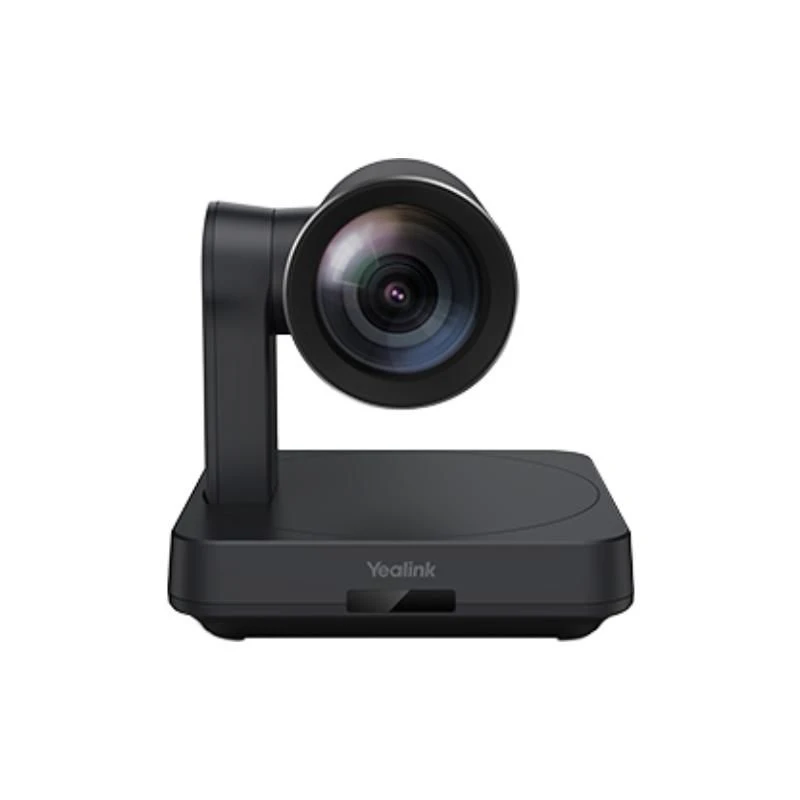

UVC84 USB PTZ camera

• 4K Sensor
• 12x optical zoom
• Field of view (diagonal): 80°
• Auto Framing
• Camera presets
• Pan range: 200°
• Tilt range: 130°
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

AVHub, audio and video processor

•  2 x USB-A port
• 1 x USB-B port
• 1 x Codec port
• 7 x Yealink VCH port(RJ-45)
• 1 x RCA in/out interface
• 1 x 6.3mm Line in interface
• 1 x 6.3mm Line out interface
• 1 x power interface
• Dividable and merging meeting rooms are supported
• Support intelligent multi-speaker tracking

WPP30 Content Sharing

• Key features and benefits
• Self-built Wi-Fi Network
• 4K/30fps Full HD Content Sharing
• Adaptive Software/Hardware Encoding
• Dual-band 2.4GHz/5GHz wireless networks
• Plug and Play
• Full-featured USB Type-C and USB Type-A Ports
• AES & WPA Data Encryption
• Adapt to Computers and Mobile Phones with Different Ports
• Up to four content streams can be presented simultaneously
• Supports annotations, whiteboards, and reverse control
• Support BYOD

Package Features

• N.W/CTN: 12.1Kg

• G.W/CTN: 13.8Kg

• Carton Meas: 935mm x 413mm x 312mm
