Yealink UVC84

Premium quality videoconferencing for medium to large rooms

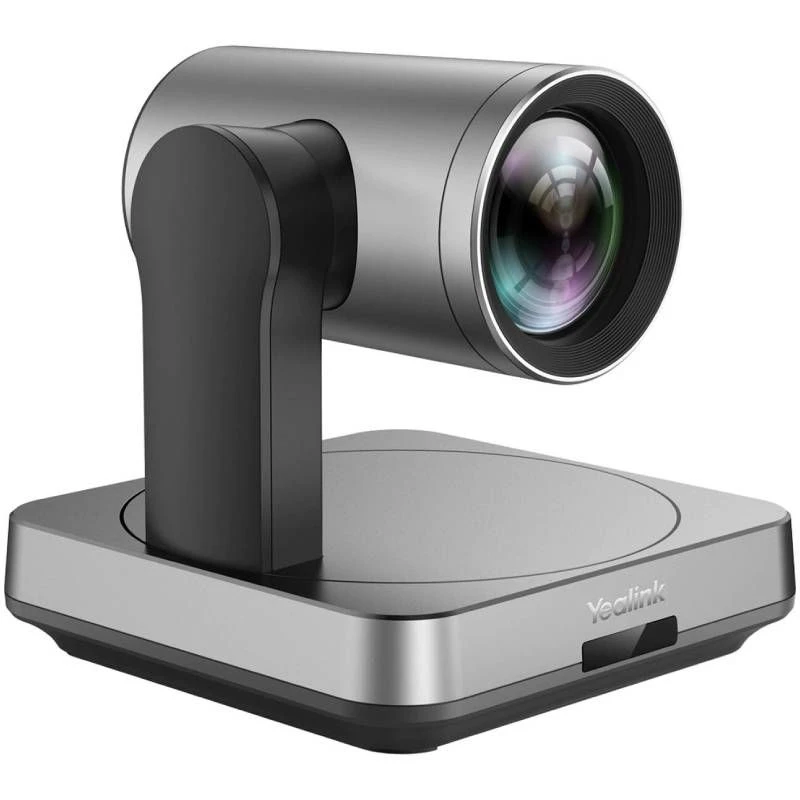

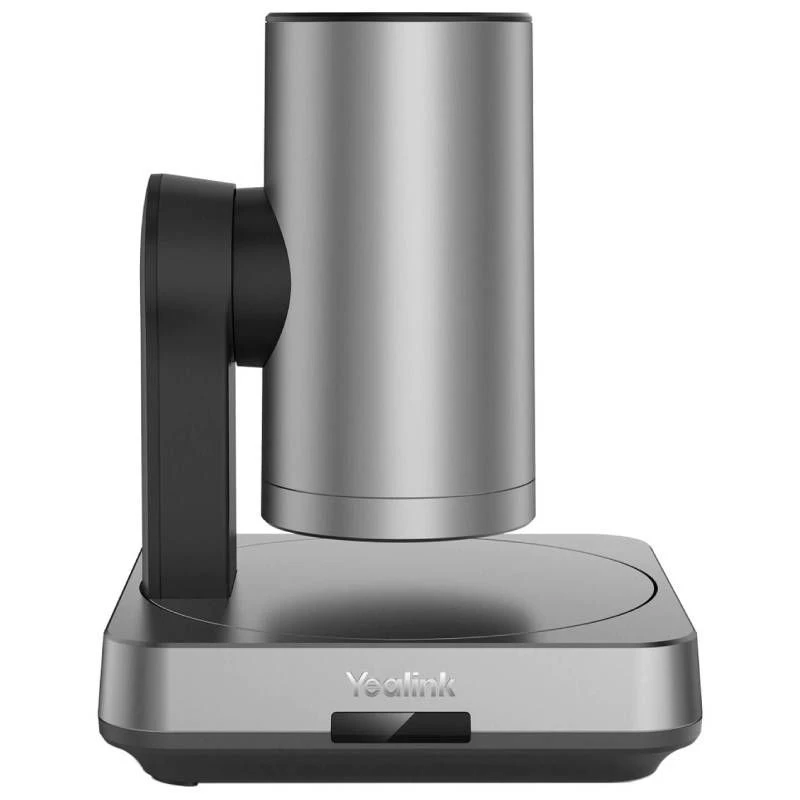

Yealink UVC84 is a USB-connected 4K UHD PTZ camera for your medium to large rooms. With x12 Optical and x3 Digital Zoom, the Yealink 4K UVC84 conferencing camera is the perfect choice for your video conferencing to help you collaborate in superior quality. The Yealink camera’s UHD 4K resolution ensures you get exceptional meetings with high image quality every time. You can complement this high quality with Yealink audio devices and have a complete system.

Clear and natural experience

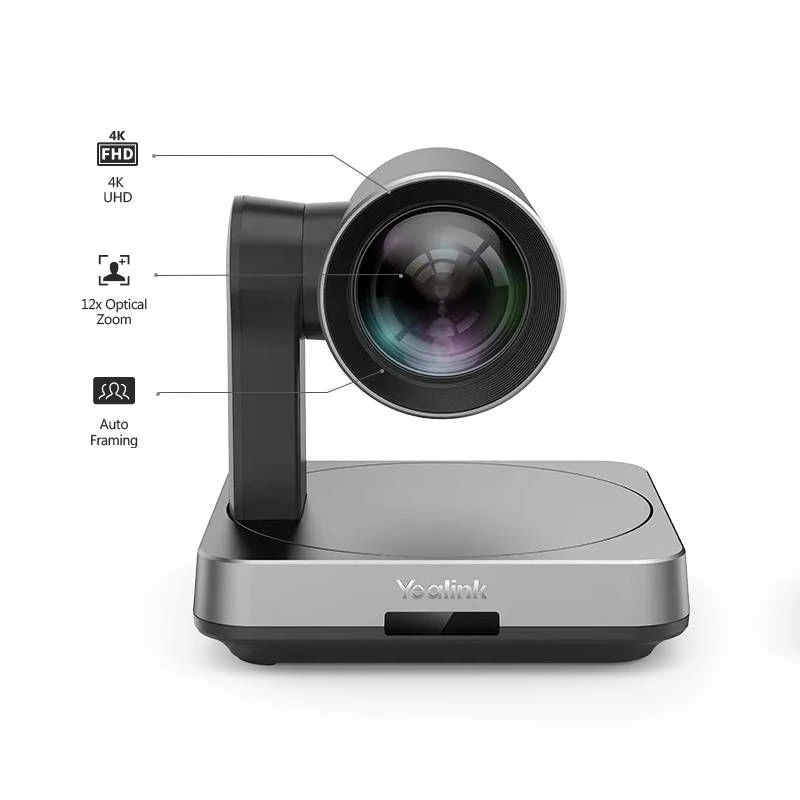

The UVC84 camera’s diverse visual features give you a clear, natural experience, so you’ll feel like you are attending face-to-face exchanges. Features include 4K UHD video resolution, 12x optical zoom, 3x digital zoom, 80° field of view, and auto framing, which allows the Yealink USB camera to automatically adjust the viewing angle during a meeting.

Where to install Yealink UVC84?

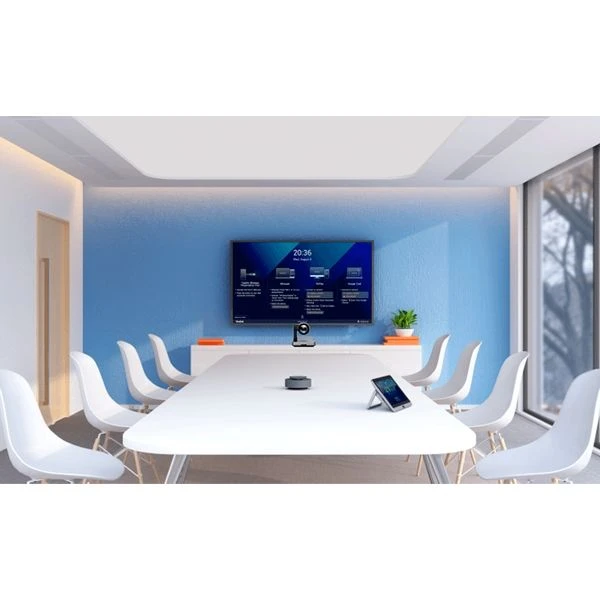

The workspaces you work in are not necessarily configured the same way, and Yealink has understood this well. The Yealink video conferencing camera perfectly matches your needs and offers you plenty of options for your location. In fact, you can place the Yealink camera where it suits you, whether it is on a screen, on a table, fixed to the wall, or on the ceiling, the UVC84 PTZ Yealink will suit all your spaces.

How to install Yealink UVC84?

As a full Plug & Play solution, the UHD PTZ camera takes only a few minutes to install. Simply connect the camera via USB to your PC or videoconferencing device management system and you can start your virtual conferences instantly. This Yealink video conferencing camera introduced by Yealink does not have a built-in microphone. However, you can combine the UVC84 camera with the Yealink VCM34, a high-end speaker with 360º voice pickup and background noise suppression that will easily complete your videoconferencing system.



Features:

• 4K UHD PTZ camera
• UVC 1.0 Protocol
• FPS: 30 fps
• Video output: 4K30, 1080p60/30, 720p60/30
• Lens focus length f=3.9mm to 46.8mm
• Lens Opening (F#) F/1.6-F/2.8
• 12x optical, 3x digital zoom
• 73⁰ field of view (horizontal)
• 45⁰ field of view (vertical)
• Minimum illumination 0.5 lux (daylight),
• 0.1 lux (at night)
• Signal-to-noise ratio (SNR) >63dB
• Autofocus √
• Auto/Manual exposition
• (WB) ATW/Auto/Manual white balance
• Pan range ±100°
• Tilt range +45°, -90°
• Shutter speed 1/60 ~ 1/10000 seconds
• USB 1 x USB2.0 Type B
• Audio ports 1x Yealink microphone port (RJ45)
• 1x line-out ports
• Power adapter AC input 100~240V
• Output DC 48V/0.7A
• System requirements Windows 7, Windows 10, Mac OS 10.10 or higher
