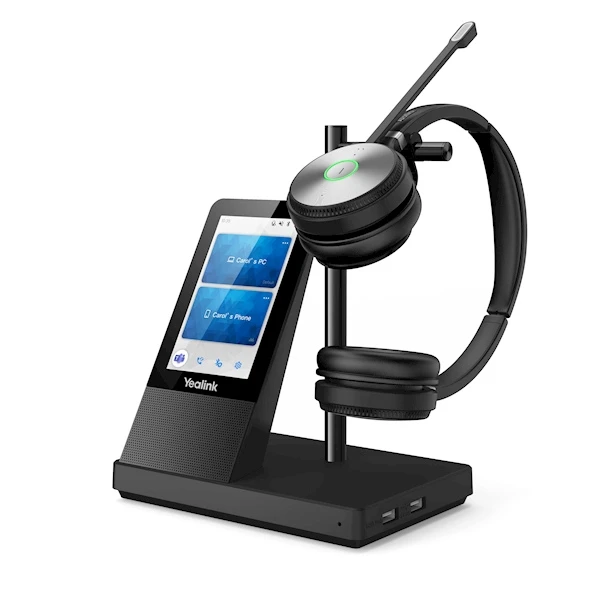

Yealink WH66 Dual UC

Yealink WH66 Duo UC

An all-in-one audio system for your workspace

The Yealink WH66 is the Industry-leading DECT wireless headset, with WH66 Dual and WH66 Mono two models, opening an entirely new form of desktop collaboration. Work seamlessly with major UC platforms and integrate natively with Yealink IP Phones. 4.0 inch (480 x 800) capacitive touch screen of base offers newly work experience, just one touch, all control. Act as a workstation, managing phone calls, connecting with multiple devices (desk phone/mobile phone/computer), charging mobile phone wirelessly, and even playing a speakerphone’s role. Best of all, deploying such a multifunctional workstation only needs to plug directly. Easiest things to do, greatest convenience to enjoy

All-in-One UC Workstation
Desktop collaboration boosts efficiency, especially when Working from Home, but it can be also annoying that your desktop is very messy with multiple device cables. Take control of your desktop collaboration environment with WH66:
• Connect all devices you want with built-in Bluetooth and USB ports.
• Expand PC’s connectivity with 2-port USB 3.0 hub.
• Control all calls on the 4.0 inch (480 x 800) capacitive touch screen.
• Function as a hands-free phone, freeing you from wearing a headset.
• Charge your mobile phone wirelessly and transform it into an efficient conferencing device.

HD audio technology: clear calls with no interference

The Yealink WH66 Duo UC provides crystal clear sound during your calls, so you can hear and be heard clearly during a phone call or virtual conference. The WH66 Duo UC is equipped with 2 noise-cancelling microphones for optimal sound transmission without noise pollution, Yealink’s noise protection technology protects your hearing from possible noise peaks that may occur during a call.

The special design of the 2 microphones with noise-cancelling technology and the headset’s In-Call indicator will allow employees to concentrate fully on their calls without interruption, thus offering them the opportunity to increase their productivity considerably.

Interruption Free
Busylight is enabled in WH66. With the light on the headset or BLT60 on the desk turning red, people around you know that you are on the phone, instead of interrupting you unknowingly. Just stay focused on conversation, for higher efficiency, for better collaboration.

Features:

General

• 0 inch (480 x 800) capacitive touch screen
• 2 feature buttons
• 1 Type-A USB 3.0 port
• Built-in Bluetooth 4.2
• Connectivity: USB 3.0 & 2 x Bluetooth devices
• Integrated busylight LED indicator
• Built-in hub: 2 Type-A USB 3.0 ports
• Boom arm adjustable: 320°
• Charging stand (for headset)

Battery

• Talk time: up to 13 hours (Mono), up to 14 hours (Dual)
• Standby time: 90 hours (Mono), 125 hours (Dual)
• Charging time: 2.5 hours (12V/2A)

DECT

• Wireless range: up to 160m/525feet
• Secure DECT (level): Step C: authentication – DSAA2, encryption – DSC2 (128bit)

Audio (Headset)

• Microphone type: dual microphone
• Microphone sensitivity: -44.0+/-3 dBV
• Microphone frequency range: 100 Hz-10 kHz
• Speaker size: Ф 28
• Speaker sensitivity: 92.5+/-3 dB, 0.179 V
• Speaker impedance: 32+/-4.8 Ω
• Speaker max output power: 10 mW
• Speaker frequency range: 20 Hz-20 kHz
• Talk mode: wideband, 100Hz~8kHz, 16kHz sample rate
• Music mode: full-band, 20Hz~20kHz, 48kHz sample rate, Stereo (Stereo only supported by Dual
• headset)
• Hearing Protection
  • Peak Block Protection (EN50332)
  • Australian G616 Protection (AU G616)
  • Daily Noise Exposure Protection

Audio (Base)

• Microphone type: ECM Omnidirectional microphone
• Microphone sensitivity: -38.0+/-2 dBV
• Microphone frequency range: 70 Hz-20 kHz
• Speaker size: 40mm20.8mm
• Speaker sensitivity: 97+/-3 dB
• Speaker impedance: 4 Ω+/-15%
• Speaker max input power: 4 W
• Speaker frequency range: 160 Hz-20 kHz

Easy Call Management

• Answer/End/Reject a call
• Volume up/down
• Microphone mute
• Move the microphone boom arm up to mute, or down to unmute

Package Features

• Package contents:
  • WHB660 Base
  • WHM621 Headset or WHD622 Headset
  • Power Adapter
  • 2 1m USB 3.0 Cable
  • Quick Start Guide
• Optional accessories:
  • Busylight BLT60
  • Wireless Charger
  • Bluetooth Dongle BT50
• WH66 Mono: Base: 398g, Headset: 80g
• WH66 Dual: Base: 398g, Headset: 127g
• W/CTN:
• WH66 Mono: 10.46 kg; WH66 Dual: 10.96 kg
• Giftbox size: 255mm204mm135mm
• Carton Meas: 698mm421mm265mm
